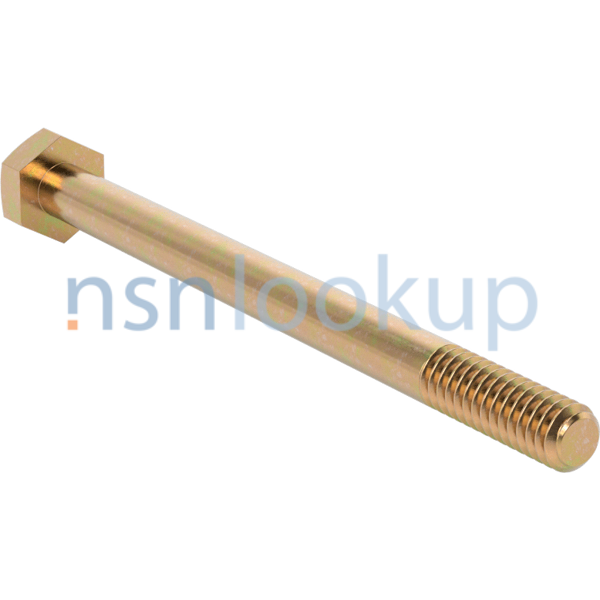

Hexagon Head Cap Screw
5305000712517 000712517 310 1943 B1821BH025C350N 186265 853691-00 MS90728-20 197-035
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
September 2025
39
Marketplace 5305-00-071-2517
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-071-2517 5+ Documents (More...)
B1821BH025C350N SCREW,CAP,HEXAGON HEAD 188 EA NS Request Quotation Updated Every Day 186265 RQST NE Updated
/fsg-53/fsc-5305/us 5305-00-071-2517 Hexagon Head Cap Screw 5305000712517, 310 1943B1821BH025C350N186265853691
RQST Updated Every Day 5950-01-310-1943 RQST NE Related Documents 5950-01-310-1943 3+ Documents ( More
https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-071-2517 Hexagon Head Cap Screw 5305000712517,
5905-12-310-1943 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5905/de 5905-12-310-1943
RQST Updated Every Day 5905-12-310-1943 RQST NE Related Documents 5905-12-310-1943 2+ Documents ( More
BUFFER 1900 EA NS Request Quotation Subscribe to View Vendor Details... 186265 BUFFER 75 EA NS Request
Quotation Subscribe to View Vendor Details... 186265 BUFFER 1 EA NS Request Quotation Updated Every
BUY NE FedMall Updated Every Day 4720-00-310-1943 RQST NE Updated Every Day 4720-00-310-1943 RQST Updated
Every Day 4720-00-310-1943 RQST NE Related Documents 4720-00-310-1943 5+ Documents ( More... ) https
Restrictions 5305-00-071-2517
5305-00-071-2517 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-00-071-2517
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-071-2517
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBFBD
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G180)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHXHD
- Poland (WP01)
- Effective Date:
- 1 Jun 2006
- MOE Rule:
- X002
- Effective Date:
- 1 Apr 1991
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Aug 2004
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 May 1998
- Greece (ZU01)
- Effective Date:
- 1 Mar 2008
Approved Sources 5305-00-071-2517
- Part Number
- Manufacturer
- Status
- B1821BH025C350N
- Manufacturer
- 80204 - American National Standards (Active)
- Primary Buy
- Primary Buy
- 186265
- 24617 - General Motors Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305000712517
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 853691-00
- 32345 - Defense Reduction Agency (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS90728-20
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 197-035
- 72741 - Dorman Products, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305000712517
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 186265
- 7X677 - General Motors Llc (Active)
- Advisory Reference
- Advisory Reference
- 310 1943
- 81495 - Koehring Cranes, Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5305-00-071-2517
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0

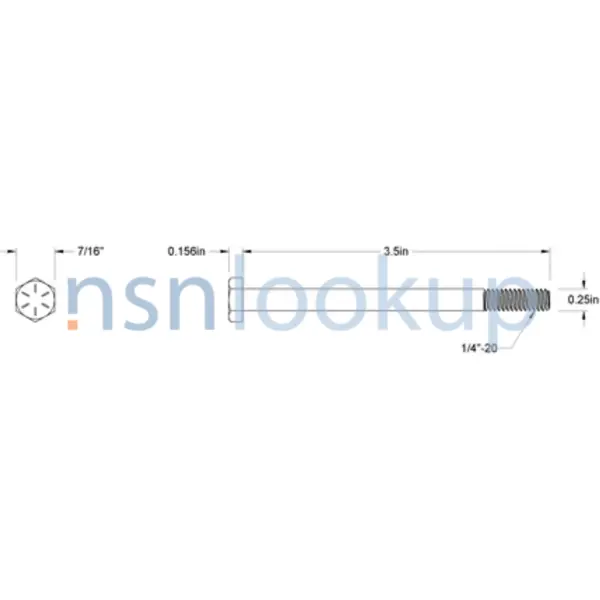

- Fastener Length [AASB]
