5305-00-071-2515

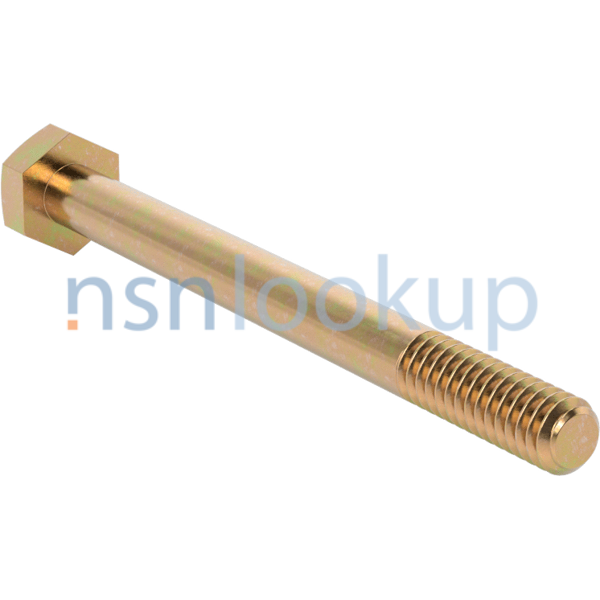

Hexagon Head Cap Screw
5305000712515 000712515 15A00325-0000 ITEM 42 15A00325-0000 ITEM NO 42 15A00367-0000 ITEM NO 113 15A00406-000O ITEM NO 115 50P01005-2031 52843-A BS1768 1/4UNCX3.000IN LONG 0740862 B1821BH025C300N S3S14118000-123 MS90728-18
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
November 2023
62
Marketplace 5305-00-071-2515
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-071-2515 5+ Documents (More...)
50P01005-2031 52843 insertion 15A00325-0000 ITEM NO 42 15A00367-0000 ITEM NO 113 15A00406-000O ITEM NO
115 50P01005-2031 52843 BS1768 15A00325-0000 ITEM NO 42 15A00367-0000 ITEM NO 113 15A00406-000O ITEM
15A00367-0000 ITEM NO 113 15A00406-000O ITEM NO 115 50P01005-2031 52843-A BS1768 https//www.nsnlookup.com
/fsg-53/fsc-5305/us 5305-00-071-2515 Hexagon Head Cap Screw 5305000712515 15A00325-0000 ITEM NO 42 15A00367
15A00367-0000 ITEM NO 113 15A00406-000O ITEM NO 115 50P01005-2031 52843-A BS1768 https//www.nsnlookup.com
/fsg-53/fsc-5305/us 5305-00-071-2515 Hexagon Head Cap Screw 5305000712515 15A00325-0000 ITEM NO 42 15A00367
15A00367-0000 ITEM NO 113 15A00406-000O ITEM NO 115 50P01005-2031 52843-A BS1768 https//www.nsnlookup.com
/fsg-53/fsc-5305/us 5305-00-071-2515 Hexagon Head Cap Screw 5305000712515 15A00325-0000 ITEM NO 42 15A00367
15A00367-0000 ITEM NO 113 15A00406-000O ITEM NO 115 50P01005-2031 52843-A BS1768 https//www.nsnlookup.com
/fsg-53/fsc-5305/us 5305-00-071-2515 Hexagon Head Cap Screw 5305000712515 15A00325-0000 ITEM NO 42 15A00367
Restrictions 5305-00-071-2515
5305-00-071-2515 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-00-071-2515
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-071-2515
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCLBFBD
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHXHD
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Poland (WP01)
- Effective Date:
- 1 Aug 2011
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 5305-00-071-2515
- Part Number
- Manufacturer
- Status
- 52843-A
- Manufacturer
- 75Q65 - Oshkosh Defense Llc (Active)
- Primary Buy
- Primary Buy
- BS1768 1/4UNCX3.000IN LONG
- K7766 - Bsi Standards Limited (Active)
- Secondary Buy
- Secondary Buy
- 0740862
- S3002 - General Dynamics European, (Active)
- Secondary Buy
- Secondary Buy
- B1821BH025C300N
- 80204 - American National Standards (Active)
- Secondary Buy
- Secondary Buy
- S3S14118000-123
- K0680 - Rolls-Royce Airlines (Active)
- Secondary Buy
- Secondary Buy
- 52843-A
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS90728-18
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- S3S14118000-123
- K0378 - Rolls-Royce Military Aero Engines (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305000712515
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- BS1768 1/4UNCX3.000IN LONG
- 52096 - Rolls-Royce Inc (Obsolete)
- Advisory Reference
- Advisory Reference
- 15A00325-0000 ITEM 42
- 01425 - Louis Allis Co The (Replaced)
- Advisory Reference
- Advisory Reference
- 15A00325-0000 ITEM NO 42
- S0160 - Frautschi And Monney (Active)
- Advisory Reference
- Advisory Reference
- 15A00325-0000 ITEM NO 42
- 01425 - Louis Allis Co The (Replaced)
- Advisory Reference
- Advisory Reference
- 15A00367-0000 ITEM NO 113
- 01425 - Louis Allis Co The (Replaced)
- Advisory Reference
- Advisory Reference
- 15A00406-000O ITEM NO 115
- 01425 - Louis Allis Co The (Replaced)
- Advisory Reference
- Advisory Reference
- 50P01005-2031
- 01425 - Louis Allis Co The (Replaced)
- Advisory Reference
- Advisory Reference

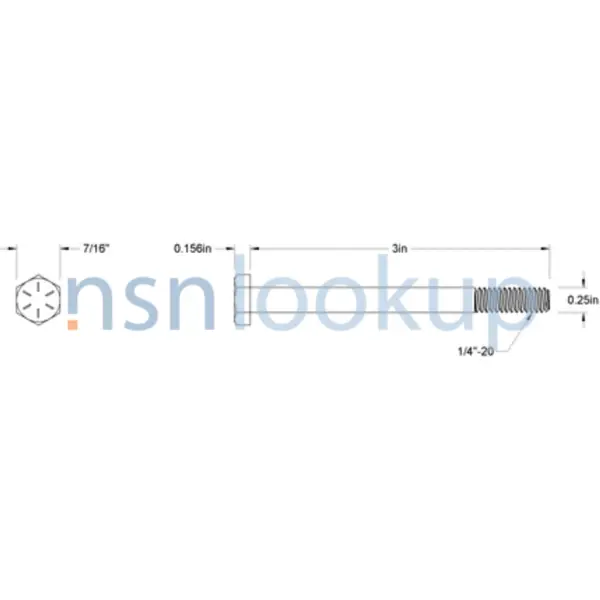

Datasheet 5305-00-071-2515
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 2.906 Inches Minimum And 3.000 Inches Maximum
- Head Height [AASU]
- 0.150 Inches Minimum And 0.163 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Steel Comp 1013 Overall Or Steel Comp 1015 Overall Or Steel Comp 1016 Overall Or Steel Comp 1017 Overall Or Steel Comp 1018 Overall Or Steel Comp 1019 Overall Or Steel Comp 1020 Overall Or Steel Comp 1021 Overall Or Steel Comp 1022 Overall Or Steel Comp 1023 Overall Or Steel Comp 1524 Overall Or Steel Comp 1025 Overall Or Steel Comp 1026 Overall Or Steel Comp 1527 Overall Or Steel Comp 1029 Overall Or Steel Comp 1030 Overall Or Steel Comp 1033 Overall Or Steel Comp 1034 Overall Or Steel Comp 1035 Overall Or Steel Comp 1536 Overall Or Steel Comp 1037 Overall Or Steel Comp 1038 Overall Or Steel Comp 1039 Overall Or Steel Comp 1040 Overall Or Steel Comp 1541 Overall
- Minimum Tensile Strength [CQBC]
- 150000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Material Document And Classification [MDCL]
- 66 Fed Std All Material Responses Overall
- Width Between Flats [AATB]
- 0.428 Inches Minimum And 0.438 Inches Maximum
- Surface Finish [CSYM]
- 63.0 Microinches Threads
- Surface Treatment Document And Classification [STDC]
- Astm B633 Ty 2 Sc 3 Assn Std Single Treatment Response Overall
- Surface Treatment [SFTT]
- Zinc Overall And Chromate Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.750 Inches Minimum And 0.938 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 20
- Thread Series Designator [THSD]
- Unc
Management Data 5305-00-071-2515
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2023
- Defense Logistics Agency (DS)
- PG
- Subscribe
- 1
- PG
- Dec 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Oct 2021
- US Marine Corps (DM)
- EA
- Subscribe
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5305-01-063-2352
- 4
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- K
- Reserved
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5305-00-071-2515
Freight Information 5305-00-071-2515
5305-00-071-2515 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-071-2515 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-071-2515 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-071-2515 is not classified as a special type of cargo when transported by water. 5305-00-071-2515 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-00-071-2515
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5305-00-071-2515 October 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
