5305-00-071-2513

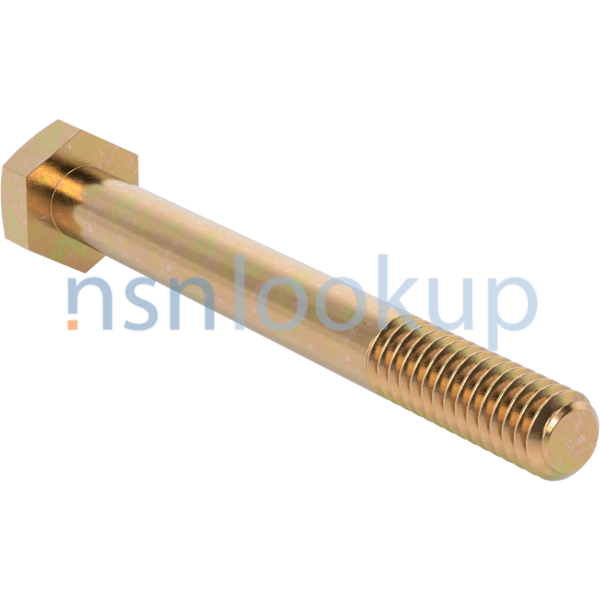

Hexagon Head Cap Screw
5305000712513 000712513 1C440 YE121966 B1821BH025C250N FFS85 SC2-166 853690-00 MS90728-16 5305PL0799711
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
November 2023
37
Marketplace 5305-00-071-2513
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-071-2513 5+ Documents (More...)
SCREW,CAP,HEXAGON HEAD 200 EA NS Request Quotation MS90728-16 SCREW,CAP,HEXAGON HEAD 200 EA NS Request
Quotation SC2-166 SCREW,CAP,HEXAGON HEAD 200 EA NS Request Quotation YE121966 SCREW,CAP,HEXAGON HEAD
Coarse Thread Bolts - Hex Cap Screw - ASME B18.2.1 BH Standard 2512 | | MS90728-15 | | 2-1/2" | B1821BH025C250N
| 5305-00-071-2513 | | MS90728-16 | | 2-3/4" | B1821BH025C275N | 5305-00-071-2514 | | MS90728-17 | |
5305-00-071-2513 248 25 5305-00-071-2513 249 36 https//www.nsnlookup.com /equipment-intelligence/land
2320-280-24P HMMWV Repair Parts And Tools Volume 2 Page 670 2512 293 26 5305-00-071-2505 99 6 5305-00-071-2513
80204 B1821BH025C250N 219 42 2510-01-444-5091 19207 12412419 219 43 5365-01-472-1697 19207 12412779
472-1697 Sleeve Spacer 5365014721697 014721697 Manual M1083 Series - Volume 2 Page 795 219 41 5305-00-071-2513
5305-00-071-2513 248 25 5305-00-071-2513 249 36 80204 B1821BH025C275N 5305-00-071-2514 251 10 80204
Restrictions 5305-00-071-2513
5305-00-071-2513 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-00-071-2513
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-071-2513
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AJCTCLBFBDAZ
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G070)
- Effective Date:
- 1 Apr 1991
- NASA (G12X)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- G12I
- NASA (G16X)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- G16I
- NASA (G170)
- Effective Date:
- 1 Apr 1991
- NASA (G180)
- Effective Date:
- 1 Apr 1991
- NASA (G37X)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- G37I
- NASA (G42X)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- G42I
- NASA (G72X)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- G72I
- NASA (G76X)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- G76I
- NASA (G81X)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- G81I
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- NASA (G930)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GBKEJBHXHDGT
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Slovenia (WL01)
- Effective Date:
- 1 Jun 2011
- Poland (WP01)
- Effective Date:
- 1 Jun 2006
- MOE Rule:
- X002
- Effective Date:
- 1 Apr 1991
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 May 2008
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 5305-00-071-2513
- Part Number
- Manufacturer
- Status
- B1821BH025C250N
- Manufacturer
- 80204 - American National Standards (Active)
- Primary Buy
- Primary Buy
- SC2-166
- 10904 - Carter Motor Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 853690-00
- 32345 - Defense Reduction Agency (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS90728-16
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305PL0799711
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 1C440
- 89749 - Clark Material Handling Company (Active)
- Advisory Reference
- Advisory Reference
- YE121966
- 03240 - Lal Acquisition Inc (Active)
- Advisory Reference
- Advisory Reference
- FFS85
- 81348 - Federal Specifications (Active)
- Transferred
- Transferred

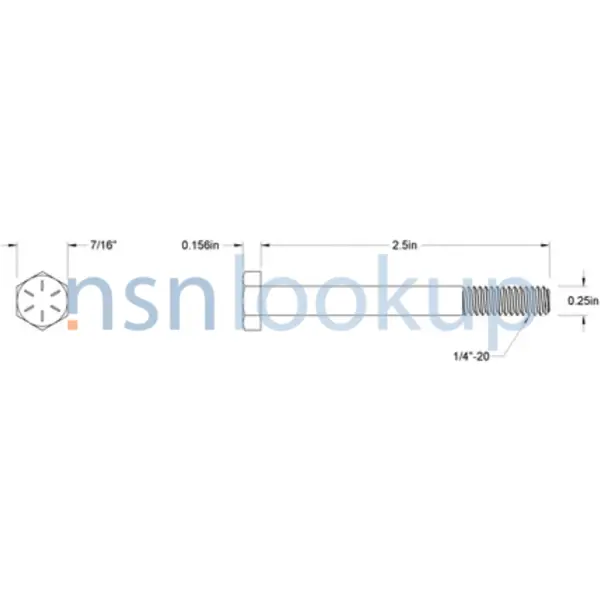

Datasheet 5305-00-071-2513
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 2.406 Inches Minimum And 2.500 Inches Maximum
- Hardness Rating [CQFM]
- 32.0 Rockwell C Minimum Overall And 38.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.150 Inches Minimum And 0.163 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Saej429 Grade 8 Assn Std Single Material Response Overall Or Stma354 Grade Bd Assn Std Single Material Response Overall
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 150000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Width Between Flats [AATB]
- 0.428 Inches Minimum And 0.438 Inches Maximum
- Surface Finish [CSYM]
- 63.0 Microinches Threads
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty2cl3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Zinc Overall And Chromate Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.750 Inches Minimum And 0.938 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 20
- Thread Series Designator [THSD]
- Unc
Weapon Systems (WSDC) 5305-00-071-2513
DLA Procurement Analysis 5305-00-071-2513
- Last Stock Position:
- 12700 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-00-071-2513
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2023
- Department of the Air Force (DF)
- PG
- Subscribe
- 1
- PG
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- May 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Nov 2019
- Department of the Army (DA)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5305-00-500-1601
- 0
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- T
- Maintenance Float Secondary Non-depot Reparables
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5305-00-071-2513
Freight Information 5305-00-071-2513
5305-00-071-2513 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-071-2513 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-071-2513 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-071-2513 is not classified as a special type of cargo when transported by water. 5305-00-071-2513 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-00-071-2513
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
