5305-00-071-2511

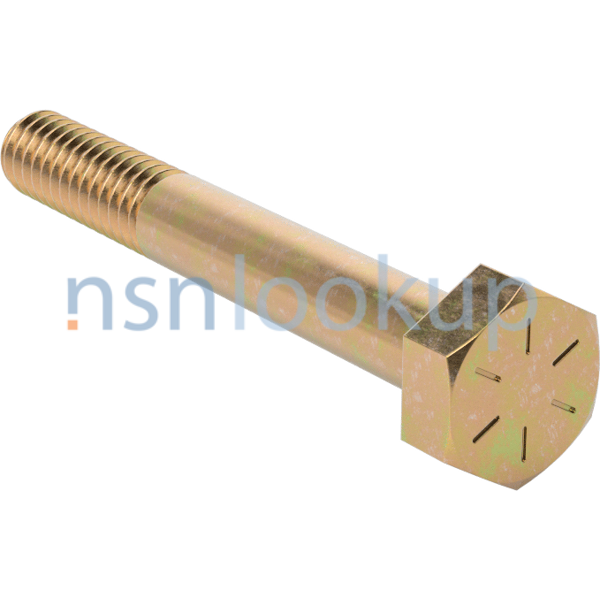

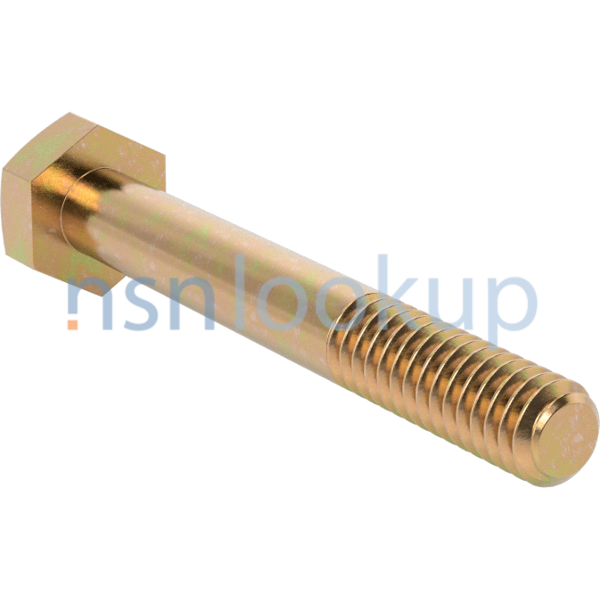

Hexagon Head Cap Screw

5305000712511 000712511 82-2082-0100 WG103767 01438 AES01C250B00AW9A9 6300757-14 852406-00 MS90728-14 B1821BH025C200N 10333130 5305PL0662989

An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
80

NATO Data Quality

5305-00-071-2511 SCREW,CAP,HEXAGON HEAD 5305000712511 000712511 1/2 — 5305-00-071-2511 Photo 1/2

AASK Style C1 for 5305-00-071-2511 2/2 — NSN 5305-00-071-2511 (Identification) 2/2

Marketplace 5305-00-071-2511

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

B1821BH025C200N SCREW,CAP,HEXAGON HEAD 22 HD NS

B1821BH025C125N SCREW,CAP,HEXAGON HEAD 2250 HD NS

Subscribe to View Vendor Details...

B1821BH025C200N SCREW,CAP,HEXAGON HEAD 225 HD NS

Subscribe to View Vendor Details...

MS90728-14 SCREW,CAP,HEXAGON HEAD 97 HD NS

B1821BH025C200N SCREW,CAP,HEXAGON HEAD 12822 HD NS

Subscribe to View Vendor Details...

5305-00-071-2511 SCREW,CAP,HEXAGON HEAD 900 HD NS

Subscribe to View Vendor Details...

B1821BH025C200N SCREW,CAP,HEXAGON HEAD 96 HD NS

MS90728-14 SCREW,CAP,HEXAGON HEAD 96 HD NS

Subscribe to View Vendor Details...

B1821BH025C200N SCREW,CAP,HEXAGON HEAD 300 HD NS

MS90728-14 SCREW,CAP,HEXAGON HEAD 1500 HD NS

Subscribe to View Vendor Details...

B1821BH025C200N SCREW,CAP,HEXAGON HEAD 1085 HD NS

Subscribe to View Vendor Details...

MS9072814 SCREW,CAP,HEXAGON HEAD 4 HD NS

MS90728-14 SCREW,CAP,HEXAGON HEAD 4 HD NS

B1821BH025C200N SCREW,CAP,HEXAGON HEAD 500 HD NS

Subscribe to View Vendor Details...

B1821BH025C200N SCREW 41 HD NS

Subscribe to View Vendor Details...

CUCVFEB9034P SCREW,CAP,HEXAGON HEAD RQST NS

Subscribe to View Vendor Details...

B1821BH025C200N SCREW,CAP,HEXAGON HEAD 300 HD NS

Subscribe to View Vendor Details...

MS90728-14 SCREW,CAP,HEXAGON HEAD 31 HD NS

Subscribe to View Vendor Details...

MS90728-14 SCREW,CAP,HEXAGON HEAD 250 HD NS

Updated Every Day

5305-00-071-2511 RQST NE

Updated Every Day

5305-00-071-2511 RQST

Updated Every Day

5305-00-071-2511 RQST NE

Restrictions 5305-00-071-2511

5305-00-071-2511 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5305-00-071-2511

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5305-00-071-2511

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CL

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G170)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G180)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEJVJBHSHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Jan 2012

Lithuania (WI01)
Effective Date:: 1 Jul 2000

Poland (WP01)
Effective Date:: 1 Jun 2006

MOE Rule:: X002
Effective Date:: 1 Apr 1991

Brazil (YA01)
Effective Date:: 1 Dec 1999

Spain (YB01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Jun 1996

Australia (ZA01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Jan 2015

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Nov 1997

Italy (ZR01)
Effective Date:: 1 Jul 1997

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

Approved Sources 5305-00-071-2511

Part Number
Manufacturer
Status
AES01C250B00AW9A9: 05047 - The American Society Of Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
6300757-14: 53711 - Naval Sea Systems Command (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
852406-00: 32345 - Defense Reduction Agency (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
MS90728-14: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 MEDALS DAC E
B1821BH025C200N: 80204 - American National Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
5305000712511: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
10333130: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5305PL0662989: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
82-2082-0100: 04664 - Pierce Manufacturing Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
WG103767: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
01438: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

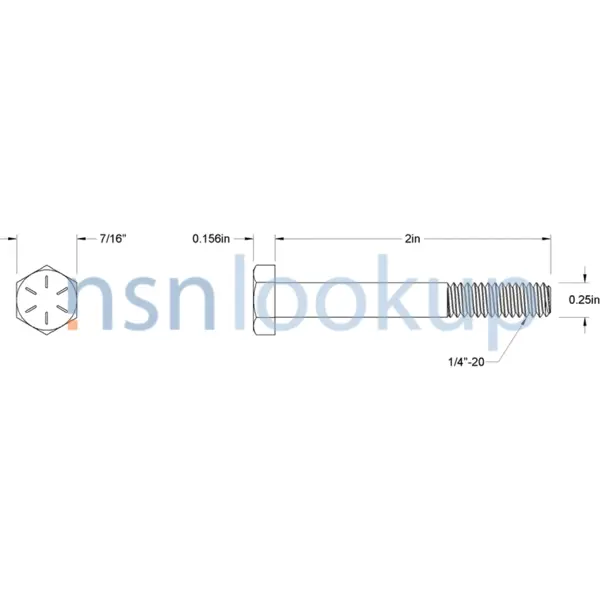

Datasheet 5305-00-071-2511

Characteristic
Specifications
FIIG: A003B0
Fastener Length [AASB]: 1.938 Inches Minimum And 2.000 Inches Maximum
Head Height [AASU]: 0.150 Inches Minimum And 0.163 Inches Maximum
Head Style [AASK]: Hexagon
Material Document And Classification [MDCL]: Saej429 Grade 8 Assn Std Single Material Response Overall Or Astma354 Grade Bd Assn Std Single Material Response Overall
Material [MATT]: Steel Overall
Minimum Tensile Strength [CQBC]: 150000 Pounds Per Square Inch
Minimum Yield Strength [CQHQ]: 120000 Pounds Per Square Inch
Nominal Thread Diameter [AHYM]: 0.250 Inches
Width Between Flats [AATB]: 0.428 Inches Minimum And 0.438 Inches Maximum
Surface Treatment Document And Classification [STDC]: Astm B633 Ty 2 Sc 3 Assn Std Single Treatment Response Overall
Surface Treatment [SFTT]: Zinc Overall And Chromate Overall
Thread Class [AAJD]: 2A
Thread Direction [AAJF]: Right-Hand
Thread Length [AASA]: 0.750 Inches Minimum And 0.938 Inches Maximum
Thread Quantity Per Inch [CMLP]: 20
Thread Series Designator [THSD]: Unc

Weapon Systems (WSDC) 5305-00-071-2511

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5305-00-071-2511

Last Stock Position:: 29900 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5305-00-071-2511

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
May 2023: US Coast Guard (GP); HD; Subscribe; 1
Oct 2022: Department of the Army (DA); HD; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2019: Department of the Air Force (DF); HD; Subscribe; 1

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5305-00-071-2511

5305-23-110-7871 5305-15-072-2385 5305-32-080-7488 5305-15-058-0111 5305-15-005-3078 5305-15-007-8618 5305-15-004-1506 5305-32-083-8831 5305-99-404-5225 5305-15-072-1910 5305-21-614-1302 5305-12-182-3224 5305-21-866-4147 5305-33-003-4049 5305-12-387-7596 5305-12-386-5375 5305-22-625-5152 5305-72-000-0039

Freight Information 5305-00-071-2511

5305-00-071-2511 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-071-2511 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-071-2511 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-071-2511 is not classified as a special type of cargo when transported by water. 5305-00-071-2511 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5305-00-071-2511

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5305-00-071-2511 2 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A623PS676: 28 Jun 2023; Subscribe; 280; Subscribe; Subscribe
SPE5E319V3738: 27 Dec 2018; Subscribe; 630; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5305-00-071-2511 October 2020

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5305-00-071-2511

Related Documents 5305-00-071-2511 5+ Documents (More...)

Restrictions 5305-00-071-2511

Import and Export 5305-00-071-2511

End Users 5305-00-071-2511

Approved Sources 5305-00-071-2511

Datasheet 5305-00-071-2511

Weapon Systems (WSDC) 5305-00-071-2511

DLA Procurement Analysis 5305-00-071-2511

Management Data 5305-00-071-2511

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5305-00-071-2511

Freight Information 5305-00-071-2511

Packaging Data 5305-00-071-2511

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5305-00-071-2511 2 Records

Contracting Technical Data File (CTDF) 5305-00-071-2511 October 2020

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
