5305-00-071-2509

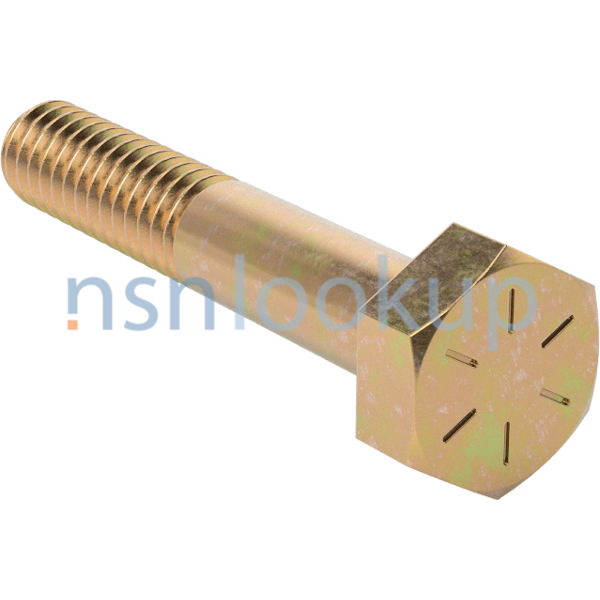

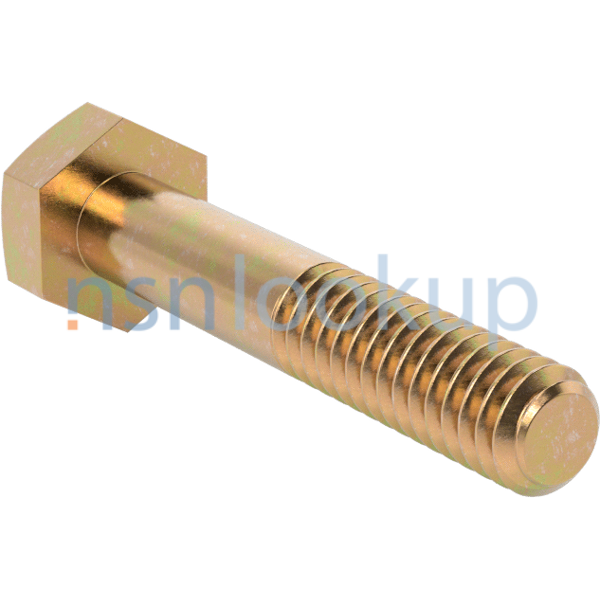

Hexagon Head Cap Screw

5305000712509 000712509 FFS85TYPE2STYLE10PGRADE5 SK-11001-6 M29-00288 PC NO 234 180034A6 0826V001 6477-63 121926 021-02399 180034 AES01C250A50AWA91 FFS85 13743 PC179801 11KP861 MS90725-12 MS90728-12 5305000712239 B1821BH025C150N 179801 10082379 5305PL0798789

An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
118

NATO Data Quality

5305-00-071-2509 SCREW,CAP,HEXAGON HEAD 5305000712509 000712509 1/2 — 5305-00-071-2509 Photo 1/2

AASK Style C1 for 5305-00-071-2509 2/2 — NSN 5305-00-071-2509 (Identification) 2/2

Marketplace 5305-00-071-2509

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS90725-12 SCREW,CAP,HEXAGON HEAD 99 HD NS

Subscribe to View Vendor Details...

MS90725-12 SCREW,CAP,HEXAGON HEAD 131 HD NS

Subscribe to View Vendor Details...

FF-S-85 SCREW,CAP,HEXAGON HEAD 200 HD NS

FFS85 SCREW,CAP,HEXAGON HEAD 94 HD NS

Subscribe to View Vendor Details...

MS90728-12 SCREW,CAP,HEXAGON HEAD 5000 HD NS

MS90725-12 SCREW,CAP,HEXAGON HEAD 2792 HD NS

Subscribe to View Vendor Details...

17980-1 SCREW,CAP,HEXAGON HEAD 62 HD NS

Subscribe to View Vendor Details...

MS90725-12 SCREW 7 HD NS

MS90728-12 SCREW 200 HD NS

Subscribe to View Vendor Details...

BOLTMOUNTING-65HEATERM151 SCREW,CAP,HEXAGON HEAD RQST NS

Subscribe to View Vendor Details...

AES01C250A50AWA91 SCREW,CAP,HEXAGON HEAD 100 HD NS

Subscribe to View Vendor Details...

MS90725-12 SCREW,CAP,HEXAGON HEAD 6 HD NS

Subscribe to View Vendor Details...

MS90728-12 SCREW,CAP,HEXAGON HEAD 100 HD NS

Subscribe to View Vendor Details...

MS90725-12 SCREW,CAP,HEXAGON HEAD 31 HD NS

FFS85 SCREW,CAP,HEXAGON HEAD 2 HD NS

FF-S-85 SCREW,CAP,HEXAGON HEAD 37 HD NS

Subscribe to View Vendor Details...

000712509.5305 SCREW,CAP,HEXAGON HEAD 393 HD NS

Updated Every Day

179801 RQST NE

Updated Every Day

5305-00-071-2509 RQST NE

Updated Every Day

5305-00-071-2509 RQST

Updated Every Day

5305-00-071-2509 RQST NE

Restrictions 5305-00-071-2509

5305-00-071-2509 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5305-00-071-2509

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5305-00-071-2509

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

MOE Rule:: BGX1
Effective Date:: 1 Jan 2008; AMC 1 AMSC G

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004; AMC 1 AMSC G

National Security Agency (DGXK)
Effective Date:: 1 Apr 2006
Former MOE Rule:: DKZ2; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G10X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G10I; AMC 1 AMSC G

NASA (G15X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G15I; AMC 1 AMSC G

NASA (G16X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G16I; AMC 1 AMSC G

NASA (G170)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G180)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G190)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G37X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G37I; AMC 1 AMSC G

NASA (G42X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G42I; AMC 1 AMSC G

NASA (G65X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G65I; AMC 1 AMSC G

NASA (G72X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G72I; AMC 1 AMSC G

NASA (G76X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G76I; AMC 1 AMSC G

NASA (G77X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G77I; AMC 1 AMSC G

NASA (G81X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G81I; AMC 1 AMSC G

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G930)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEJNHXHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Feb 2008

Lithuania (WI01)
Effective Date:: 1 Feb 2001

Poland (WP01)
Effective Date:: 1 Jun 2006

Brazil (YA01)
Effective Date:: 1 Dec 1999

Spain (YB01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Jul 2010

Malaysia (YW01)
Effective Date:: 1 Mar 1997

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5305-00-071-2509

Part Number
Manufacturer
Status
AES01C250A50AWA91: 05047 - The American Society Of Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
FFS85TYPE2STYLE10PGRADE5: 81348 - Federal Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
SK-11001-6: 0EAK3 - Gse Management Co (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
11KP861: 75Q65 - Oshkosh Defense Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
13743: 35510 - Prestolite Electric Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
PC179801: C7432 - Power Components (Deutschland) Gmbh (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
11KP861: 45152 - Oshkosh Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS90725-12: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 MEDALS DAC 6
MS90728-12: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 MEDALS DAC E
5305000712239: A00AM - E.C.A Etablissement Central Des (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
B1821BH025C150N: 80204 - American National Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
179801: 24617 - General Motors Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
179801: 72582 - Rolls-Royce Solutions America Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
10082379: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5305PL0798789: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5305000712509: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
180034: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
M29-00288 PC NO 234: 9F512 - Parker-Hannifin Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
180034A6: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
0826V001: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
6477-63: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
121926: 80195 - Ed Etnyre & Co (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
021-02399: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
180034: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
FFS85: 81348 - Federal Specifications (Active); Transferred; RNCC E RNVC 8 DAC 3

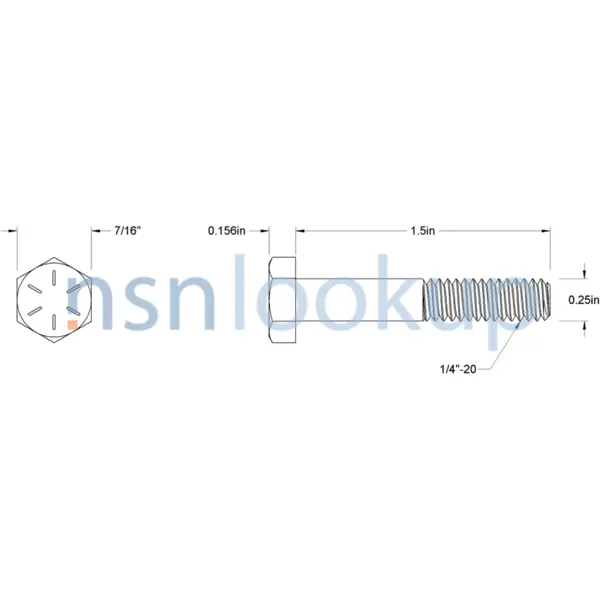

Datasheet 5305-00-071-2509

Characteristic
Specifications
FIIG: A003B0
Fastener Length [AASB]: 1.500 Inches Nominal
Hardness Rating [CQFM]: 32.0 Rockwell C Minimum And 38.0 Rockwell C Maximum Overall
Head Height [AASU]: 0.150 Inches Minimum And 0.163 Inches Maximum
Head Style [AASK]: Hexagon
Material Document And Classification [MDCL]: Sae Gr 8 Assn Std Single Material Response Overall
Material [MATT]: Steel Overall
Minimum Tensile Strength [CQBC]: 150000 Pounds Per Square Inch
Minimum Yield Strength [CQHQ]: 120000 Pounds Per Square Inch
Nominal Thread Diameter [AHYM]: 0.250 Inches
Nondefinitive Spec/Std Data [ZZZT]: 2 Type And 10P Style And 8 Grade
End Item Identification [AGAV]: Mrap Rg-33; Mrap - M-Atv With Cs13 Pop And Sne; Mrap - Cougar Tow
Width Between Flats [AATB]: 0.428 Inches Minimum And 0.438 Inches Maximum
Surface Finish [CSYM]: 63.0 Microinches Threads
Surface Treatment Document And Classification [STDC]: Astm B633 Ty 2 Sc 3 Assn Std Single Treatment Response Overall
Surface Treatment [SFTT]: Zinc And Chromate Overall
Thread Class [AAJD]: 2A
Thread Direction [AAJF]: Right-Hand
Thread Length [AASA]: 0.750 Inches Minimum And 0.938 Inches Maximum
Thread Quantity Per Inch [CMLP]: 20
Thread Series Designator [THSD]: Unc

Weapon Systems (WSDC) 5305-00-071-2509

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5305-00-071-2509

Last Stock Position:: 78800 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5305-00-071-2509

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: US Coast Guard (GP); HD; Subscribe; 1
Oct 2021: Department of the Air Force (DF); HD; Subscribe; 1
Apr 2021: Department of the Air Force (DF); HD; Subscribe; 1
Oct 2020: US Marine Corps (DM); HD; Subscribe; 1
Oct 2019: Department of the Air Force (DF); HD; Subscribe; 1

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

T: Maintenance Float Secondary Non-depot Reparables

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5305-00-071-2509

5305-23-110-7871 5305-15-072-2385 5305-32-080-7488 5305-15-058-0111 5305-15-005-3078 5305-15-007-8618 5305-15-004-1506 5305-32-083-8831 5305-99-404-5225 5305-15-072-1910 5305-21-614-1302 5305-12-182-3224 5305-21-866-4147 5305-33-003-4049 5305-12-387-7596 5305-12-386-5375 5305-22-625-5152 5305-72-000-0039

Freight Information 5305-00-071-2509

5305-00-071-2509 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-071-2509 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-071-2509 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5305-00-071-2509 is not classified as a special type of cargo when transported by water. 5305-00-071-2509 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5305-00-071-2509

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5305-00-071-2509 1 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A623PW701: 10 Aug 2023; Subscribe; 336; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5305-00-071-2509 October 2020

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5305-00-071-2509

Related Documents 5305-00-071-2509 5+ Documents (More...)

Restrictions 5305-00-071-2509

Import and Export 5305-00-071-2509

End Users 5305-00-071-2509

Approved Sources 5305-00-071-2509

Datasheet 5305-00-071-2509

Weapon Systems (WSDC) 5305-00-071-2509

DLA Procurement Analysis 5305-00-071-2509

Management Data 5305-00-071-2509

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5305-00-071-2509

Freight Information 5305-00-071-2509

Packaging Data 5305-00-071-2509

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5305-00-071-2509 1 Records

Contracting Technical Data File (CTDF) 5305-00-071-2509 October 2020

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
