5305-00-071-2508

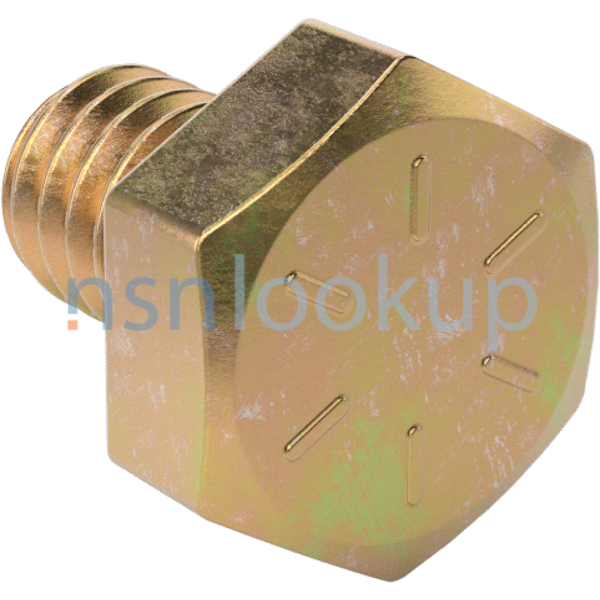

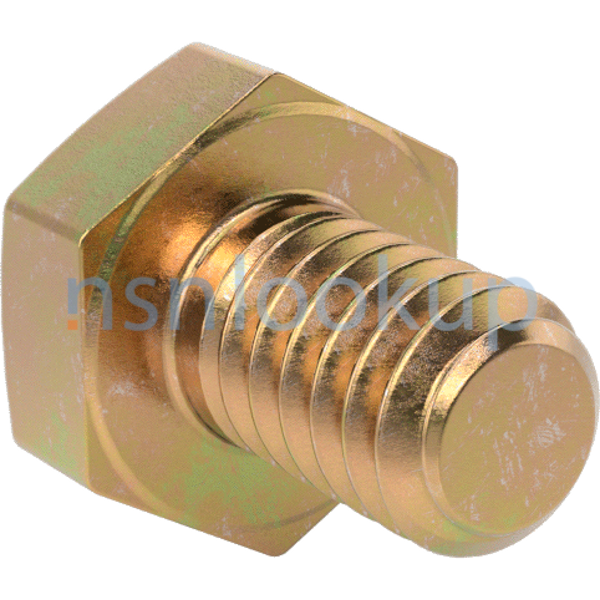

Hexagon Head Cap Screw
5305000712508 000712508 ASME B18.2.1 1C406 91247A535 AES01C250378AW9A91 303864 17C406 MS90728-1 17C406CR MS35305-1 855364-00 B1821BH025C038N 17406CR
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
64
64
NATO Data Quality
Product Information 5305-00-071-2508
B1821 Series Coarse Thread - Undrilled Head - 1/4" 20-UNC-2A Coarse Thread
Marketplace 5305-00-071-2508
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-071-2508 5+ Documents (More...)
ASME B18.2.1 1C406 91247A535 AES01C250378AW9A91 303864 17C406 MS90728-1 17C406CR MS35305-1 855364-00
B1821BH025C038N 17406CR An externally threaded fastener designed for insertion into holes in assembled
MS90728-1 SCREW,CAP,HEXAGON HEAD 19 PG NS Request Quotation B1821BH025C038N SCREW,CAP,HEXAGON HEAD 91
B1821BH025C038N 17406CR An externally threaded fastener designed for insertion into holes in assembled
MS90728-1 SCREW,CAP,HEXAGON HEAD 19 PG NS Request Quotation B1821BH025C038N SCREW,CAP,HEXAGON HEAD 91
$1 a day Upgrade your Account Upgrade 3120-00-972-0311Thrust Washer Bearing3120009720311 009720311 303864
www.nsnlookup.com /fsg-49/fsc-4910/br 4910-19-003-6325 Trava Engrenagem Bo 4910190036325190036325 303864
https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-071-2508 Hexagon Head Cap Screw 5305000712508 2508Hexagon
www.nsnlookup.com /fsg-49/fsc-4910/br 4910-19-003-6325 Trava Engrenagem Bo 4910190036325190036325 303864
https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-071-2508 Hexagon Head Cap Screw 5305000712508 2508Hexagon
to enable JavaScript in your web browser . 5305-01-701-9478Machine Screw5305017019478 017019478 ASME B18.2.1
-0882Machine Bolt5306000190882 000190882 ASME-B18.2.1 https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306 -0882Machine Bolt5306000190882 000190882 ASME-B18.2.1
-0882Machine Bolt5306000190882 000190882 ASME-B18.2.1 https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306 -0882Machine Bolt5306000190882 000190882 ASME-B18.2.1
for $1 a day Upgrade your Account Upgrade 5306-01-692-6174Machine Bolt5306016926174 016926174 ASME B18.2.1
-0882Machine Bolt5306000190882 000190882 ASME-B18.2.1 https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306 -0882Machine Bolt5306000190882 000190882 ASME-B18.2.1
-0882Machine Bolt5306000190882 000190882 ASME-B18.2.1 https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306 -0882Machine Bolt5306000190882 000190882 ASME-B18.2.1
for $1 a day Upgrade your Account Upgrade 5306-01-692-6260Machine Bolt5306016926260 016926260 ASME B18.2.1
-0882Machine Bolt5306000190882 000190882 ASME-B18.2.1 https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306 -0882Machine Bolt5306000190882 000190882 ASME-B18.2.1
-0882Machine Bolt5306000190882 000190882 ASME-B18.2.1 https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306 -0882Machine Bolt5306000190882 000190882 ASME-B18.2.1
Restrictions 5305-00-071-2508
5305-00-071-2508 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-00-071-2508
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-071-2508
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AJCLBFAZ
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEJVHS
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- MOE Rule:
- X002
- Effective Date:
- 1 Apr 1991
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Egypt (YQ01)
- Effective Date:
- 1 Jan 2015
- Australia (ZA01)
- Effective Date:
- 1 Mar 2005
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 5305-00-071-2508
- Part Number
- Manufacturer
- Status
- AES01C250378AW9A91
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Primary Buy
- Primary Buy
- ASME B18.2.1
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 303864
- H0G87 - Wiba Zevenaar B.V. (Active)
- Secondary Buy
- Secondary Buy
- 17C406
- 89749 - Clark Material Handling Company (Active)
- Secondary Buy
- Secondary Buy
- MS90728-1
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 17C406CR
- 12603 - Clark Equipment Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MS35305-1
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 855364-00
- 32345 - Defense Reduction Agency (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B1821BH025C038N
- 80204 - American National Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 17406CR
- 12603 - Clark Equipment Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 1C406
- 12603 - Clark Equipment Co (Replaced)
- Advisory Reference
- Advisory Reference
- 91247A535
- 39428 - Mcmaster-Carr Supply Co (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5305-00-071-2508
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.344 Inches Minimum And 0.375 Inches Maximum
- Hardness Rating [CQFM]
- 33.0 Rockwell C Minimum And 39.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.150 Inches Minimum And 0.163 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Sae J429,Grade 8 Assn Std Single Material Response Or Astm A354,Grade Bd Assn Std Single Material Response Overall
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 150000 Pounds Per Square Inch
- Minimum Yield Strength [CQHQ]
- 130000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- End Item Identification [AGAV]
- Mrap Rg-33; Mrap - Cougar Tow
- Width Between Flats [AATB]
- 0.428 Inches Minimum And 0.438 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Astm B633 Ty 2 Sc 3 Assn Std Single Treatment Response Overall
- Surface Treatment [SFTT]
- Zinc And Chromate Overall
- Thread Class [AAJD]
- 2A
- Thread Length [AASA]
- 0.219 Inches Minimum And 0.375 Inches Maximum
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 20
- Thread Series Designator [THSD]
- Unc
