5305-00-071-2060

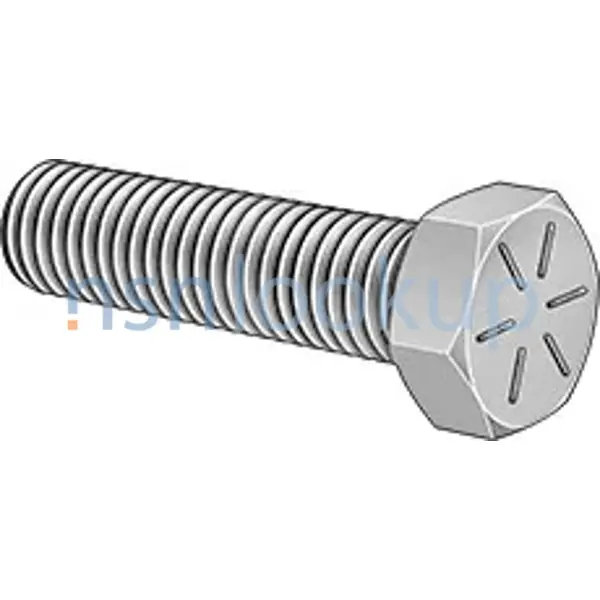

Hexagon Head Cap Screw
5305000712060 000712060 180173 32011283 3201283 B1821BH044C275N 91257A680 MS90728-94
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
November 2023
12
Marketplace 5305-00-071-2060
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-071-2060 5+ Documents (More...)
Photo 1/2 NSN 5305-00-071-2060 (Identification) 2/2 - - 1.
91257A680 RQST NE Updated Every Day 5305-00-071-2060 RQST NE Updated Every Day 5305-00-071-2060 RQST
www.nsnlookup.com /fsg-53/fsc-5330/it 5330-15-004-1554 Anello Premiguarniz 5330150041554150041554 P-180173
Hexagon Head Cap Screw 5305000712060,180173 -110-2879 Part NumberManufacturerStatusP-180173 https
www.nsnlookup.com /fsg-53/fsc-5330/it 5330-15-004-1555 Guarnizione In Gomm 5330150041555150041555 P-180173
Hexagon Head Cap Screw 5305000712060,180173 -004-1554 Part NumberManufacturerStatusP-180173 https
Request a Quotation from participating marketplace vendors Request Updated Every Day 3201283 RQST NE
Every Day 5305-01-508-8642 RQST Updated Every Day https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-071-2060
-401 P-180173-401P180173-401 Managed by Italy NSN Created on 7 Sep 1989 Data Last Changed January 2023
Hexagon Head Cap Screw 5305000712060,180173 Cable6145994157722 99415772221-1801730561-180173 https
Restrictions 5305-00-071-2060
5305-00-071-2060 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-00-071-2060
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-071-2060
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHD
- United Kingdom (ZK01)
- Effective Date:
- 1 Jan 2011
- Netherlands (ZN01)
- Effective Date:
- 1 May 1998
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 5305-00-071-2060
- Part Number
- Manufacturer
- Status
- B1821BH044C275N
- Manufacturer
- 80204 - American National Standards (Active)
- Primary Buy
- Primary Buy
- 91257A680
- 39428 - Mcmaster-Carr Supply Co (Active)
- Secondary Buy
- Secondary Buy
- MS90728-94
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 180173
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Advisory Reference
- Advisory Reference
- 32011283
- 15434 - Cummins Inc. (Active)
- Advisory Reference
- Advisory Reference
- 3201283
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 180173
- 12582 - Diffraction Optics (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 5305-00-071-2060
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- End Item Identification [AGAV]
- Part Of The Right Hand Side Armor Kit 2540-01-533-8814; Nha Nsn M915a3 Armor Kit 2540-01-523-1336; Used On Armored Version Of M915a3 2320-01-523-2486
- Fastener Length [AASB]
- 2.656 Inches Minimum And 2.750 Inches Maximum
- Head Height [AASU]
- 0.272 Inches Minimum And 0.291 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Sae J429 Grade 8 Assn Std Single Material Response Overall Or Astma354 Grade Bd Assn Std Single Material Response Overall
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 150000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.438 Inches
- Width Between Flats [AATB]
- 0.612 Inches Minimum And 0.625 Inches Maximum
- Surface Finish [CSYM]
- 63.0 Microinches Threads
- Surface Treatment Document And Classification [STDC]
- Astm B633 Ty C 3 Assn Std Single Treatment Response Overall
- Surface Treatment [SFTT]
- Zinc Overall And Chromate Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 1.125 Inches Minimum And 1.313 Inches Maximum
- Thread Series Designator [THSD]
- Unc
- Thread Quantity Per Inch [CMLP]
- 14
