5305-00-071-1323

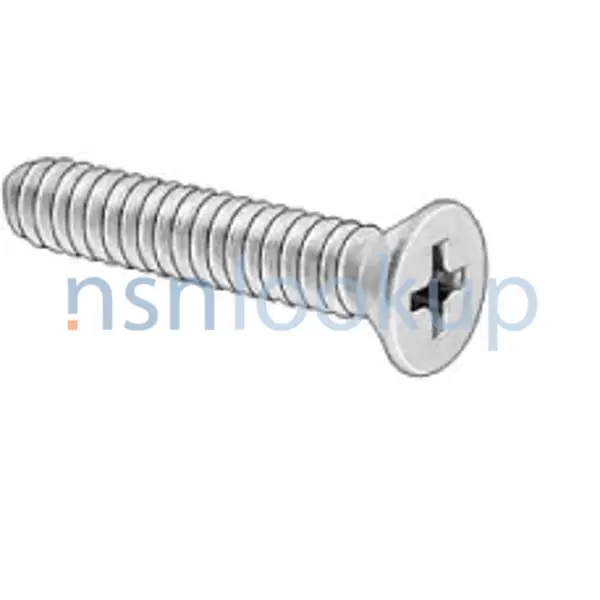

Machine Screw

5305000711323 000711323 0920-66 96877A096 342-0225-000 003-007861-066 639129-471 A17195-055 N58P16010 413719-129 5265829-006 214690-1 MS51960-66 245458 10009382 418214-66 5000 209606 FFS92ANDTYPE3ANDSTYLE2C AN510C10R10 AN510C10R11 MS35250-73 22287 10124960

An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw

Managed by United States

NSN Created on 1 Jan 1960

Data Last Changed
November 2023

NATO Update Count
85

NATO Data Quality

5305-00-071-1323 SCREW,MACHINE 5305000711323 000711323 1/3 — 5305-00-071-1323 Photo 1/3

AASK Style A39 for 5305-00-071-1323 2/3 — NSN 5305-00-071-1323 (Identification) 2/3

ABQZ Style B1 for 5305-00-071-1323 3/3 — NSN 5305-00-071-1323 (Identification) 3/3

Marketplace 5305-00-071-1323

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

22287 SCREW,MACHINE 1 HD NS

Subscribe to View Vendor Details...

MS51960-66 SCREW,MACHINE 245 HD NS

Subscribe to View Vendor Details...

MS51960-66 SCREW,MACHINE 1 HD NS

5305-00-071-1323 SCREW,MACHINE 1 HD NS

Subscribe to View Vendor Details...

003-007861-066 SCREW,MACHINE 215 HD NS

MS51960-66 SCREW,MACHINE 150 HD NS

Subscribe to View Vendor Details...

AN510C10R10 SCREW,MACHINE 109 HD NS

MS51960-66 SCREW,MACHINE 7040 HD NS

Subscribe to View Vendor Details...

MS51960-66 SCREW 200 HD NS

MS35250-73 SCREW 100 HD NS

MS51960-66 SCREW MACH 300 HD NS

Subscribe to View Vendor Details...

MS51960-66 SCREW,MACHINE 2500 HD NS

Subscribe to View Vendor Details...

MS51960-66 SCREW,MACHINE 1 HD NS

Subscribe to View Vendor Details...

MS51960-66 SCREW,MACHINE 3348 HD NS

Subscribe to View Vendor Details...

MS51960-66 SCREW,MACHINE 5076 HD NS

MS35250-73 SCREW,MACHINE 300 HD NS

AN510C10R10 SCREW,MACHINE 5076 HD NS

Subscribe to View Vendor Details...

000711323.5305 SCREW,MACHINE 80 HD NS

Updated Every Day

Search Global Test Supply
10009382 RQST NE

Updated Every Day

96877A096 RQST NE

Updated Every Day

5305-00-071-1323 RQST NE

Updated Every Day

5305-00-071-1323 RQST

Updated Every Day

5305-00-071-1323 RQST NE

Restrictions 5305-00-071-1323

5305-00-071-1323 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5305-00-071-1323

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5305-00-071-1323

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G880)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJVJBHXHSHD; AMC 1 AMSC G IMC Z IMCACTY GH

MOE Rule:: S911
Effective Date:: 1 Apr 2006
Former MOE Rule:: S006; AMC 1 AMSC G IMC Z IMCACTY XN

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 May 2009

Poland (WP01)
Effective Date:: 1 Apr 2006

MOE Rule:: X002
Effective Date:: 1 Apr 1991

Brazil (YA01)
Effective Date:: 1 Dec 1999

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Australia (ZA01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Jun 2000

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Oct 2007

Approved Sources 5305-00-071-1323

Part Number
Manufacturer
Status
MS51960-66: 96906 - Military Standards (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
0920-66: 06424 - Alliant Techsystems Operations Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
96877A096: 39428 - Mcmaster-Carr Supply Co (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 3
342-0225-000: 95105 - Rockwell Collins, Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
003-007861-066: 26916 - Northrop Grumman Systems Corporation (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC A
639129-471: 12436 - Bae Systems Information And (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 2
A17195-055: 12436 - Bae Systems Information And (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 2
245458: 35679 - Sinclair Technologies Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
10009382: 64869 - Teledyne Flir, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
418214-66: 96214 - Raytheon Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
5000 209606: 04801 - L3harris Maritime Power & Energy (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS35250-73: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
22287: 73734 - Federal Screw Products Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
413719-129: 02964 - American Sterilizer Company (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
10124960: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5305000711323: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
N58P16010: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
413719-129: 0NWN1 - Steris Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
5265829-006: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
214690-1: 92755 - Northrop Grumman Systems Corp (Active); Advisory Reference; RNCC C RNVC 1 DAC 9
FFS92ANDTYPE3ANDSTYLE2C: 81348 - Federal Specifications Promulgated (Active); Transferred; RNCC E RNVC 8 DAC E
AN510C10R10: 88044 - Aeronautical Standards Group (Active); Transferred; RNCC E RNVC 8 DAC E
AN510C10R11: 88044 - Aeronautical Standards Group (Active); Transferred; RNCC E RNVC 8 DAC E

Datasheet 5305-00-071-1323

Characteristic
Specifications
FIIG: A500D0
Countersink Angle [CRSQ]: 80.0 Degrees Minimum And 82.0 Degrees Maximum
Fastener Length [AASB]: 0.625 Inches Nominal
Head Diameter [AASL]: 0.340 Inches Minimum And 0.385 Inches Maximum
Head Style [AASK]: Flat Countersunk
End Item Identification [AGAV]: Mrap - M-Atv W/Cs13 Pop And Sne; Mrap - Cougar
Minimum Tensile Strength [CQBC]: 80000 Pounds Per Square Inch
Nominal Thread Diameter [AHYM]: 0.190 Inches
Internal Drive Style [ABQZ]: Cross Recess Type 1
Screw Material Document And Classification [CYAW]: 66 Fed Std All Material Responses
Screw Material [CYAU]: Steel Comp 302 Or Steel Comp 303 Or Steel Comp 304 Or Steel Comp 305 Or Steel Comp 316
Screw Surface Treatment Document And Classification [CYBE]: Qq-P-35 Fed Spec Single Treatment Response
Screw Surface Treatment [CYBA]: Passivate
Thread Class [AAJD]: 2A
Thread Direction [AAJF]: Right-Hand
Thread Length [AASA]: 0.563 Inches Minimum And 0.625 Inches Maximum
Thread Quantity Per Inch [CMLP]: 32
Thread Series Designator [THSD]: Unf
