5305-00-068-0508

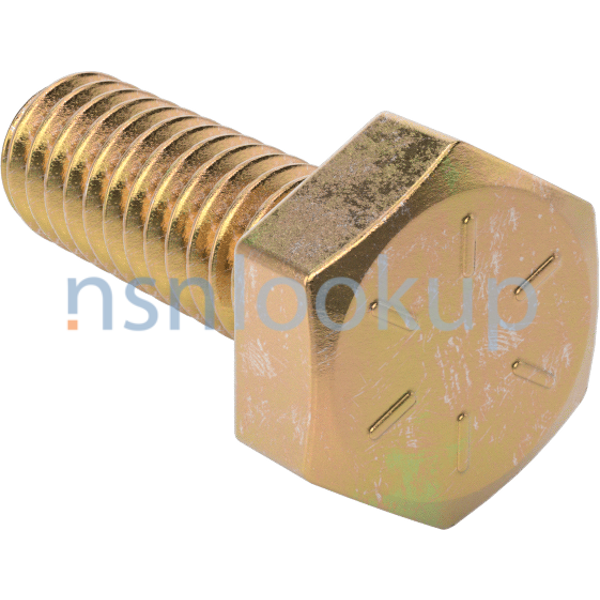

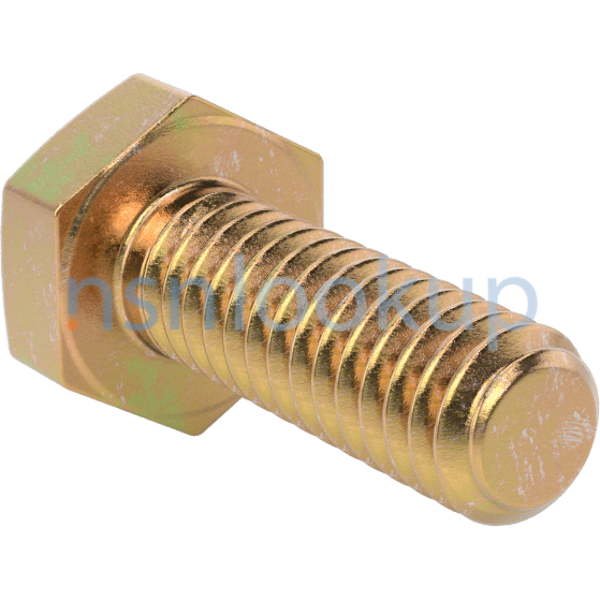

Hexagon Head Cap Screw

5305000680508 000680508 B18.24 91247A540 903-007 803-007 15A00404-0000 ITEM NO 83 50P01005-2011 60194 443603 018945075 306-40025 M29-00288 PC NO 94 920073 000-8006-992 M19-20873 PC NO 124 108940 803-5959276PC6 803-5959276-06 15A00406-0000 I AES01C250750AW9A91 26-412 1C817P63 800-0533 418307-6 2109HX1 303842

An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
121

NATO Data Quality

5305-00-068-0508 SCREW,CAP,HEXAGON HEAD 5305000680508 000680508 1/2 — 5305-00-068-0508 Photo 1/2

AASK Style C1 for 5305-00-068-0508 2/2 — NSN 5305-00-068-0508 (Identification) 2/2

Marketplace 5305-00-068-0508

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

73032 SCREW,CAP,HEXAGON HEAD 99 HD NS

B1824 SCREW,CAP,HEXAGON HEAD 99 HD NS

803007 SCREW,CAP,HEXAGON HEAD 99 HD NS

Subscribe to View Vendor Details...

B1821BH025C075N SCREW,CAP,HEXAGON HEAD 3305 HD NS

Subscribe to View Vendor Details...

MS90728-6 SCREW,CAP,HEXAGON HEAD 1255 HD NS

Subscribe to View Vendor Details...

2109HX1 SCREW 106 HD NS

Subscribe to View Vendor Details...

BOLT142034 SCREW,CAP,HEXAGON HEAD RQST NS

Subscribe to View Vendor Details...

MS90728-6 SCREW,CAP,HEXAGON HEAD 24 HD NS

AES01C25075OAW9A91 SCREW,CAP,HEXAGON HEAD 98 HD NS

Subscribe to View Vendor Details...

5305-00-068-0508 BOLT 8 HD NS

Subscribe to View Vendor Details...

B1821BH025C075N SCREW,CAP,HEXAGON HEAD 2116 HD NS

Subscribe to View Vendor Details...

MS90728-6 SCREW,CAP,HEXAGON HEAD 3 HD NS

91247A540 SCREW,CAP,HEXAGON HEAD 4 HD NS

Subscribe to View Vendor Details...

MS90728-6 SCREW,CAP,HEXAGON HEAD 200 HD NS

B1821BH025C075N SCREW,CAP,HEXAGON HEAD 196 HD NS

Subscribe to View Vendor Details...

000680508.5305 SCREW,CAP,HEXAGON HEAD 14 HD NS

2109HX1 SCREW,CAP,HEXAGON HEAD 40 HD NS

Subscribe to View Vendor Details...

B1821BH025C075N SCREW,CAP,HEXAGON HEAD 1 HD NS

MS90728-6 SCREW,CAP,HEXAGON HEAD 1 HD NS

Updated Every Day

91247A540 RQST NE

Updated Every Day

5305-00-068-0508 RQST NE

Updated Every Day

5305-00-068-0508 RQST

Updated Every Day

5305-00-068-0508 RQST NE

Restrictions 5305-00-068-0508

5305-00-068-0508 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5305-00-068-0508

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5305-00-068-0508

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

MOE Rule:: B031
Effective Date:: 1 Apr 1991; AMC 1 AMSC G

MOE Rule:: BGX1
Effective Date:: 1 Apr 2006
Former MOE Rule:: BKZ1; AMC 1 AMSC G

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G180)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G190)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC B

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEHXHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Feb 2008

Lithuania (WI01)
Effective Date:: 1 Jul 2000

Slovenia (WL01)
Effective Date:: 1 May 2009

Poland (WP01)
Effective Date:: 1 May 2005

Brazil (YA01)
Effective Date:: 1 Dec 1999

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Jul 2010

Malaysia (YW01)
Effective Date:: 1 Jun 1996

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 5305-00-068-0508

Part Number
Manufacturer
Status
AES01C250750AW9A91: 05047 - The American Society Of Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
B18.24: 05047 - The American Society Of Mechanical (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC E
26-412: 10988 - Cnh Industrial America Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
1C817P63: 07482 - General Electric Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
800-0533: 44940 - Cummins Power Generation Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
418307-6: 96214 - Raytheon Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS90728-6: A9271 - Goriziane Group Spa (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
2109HX1: 75Q65 - Oshkosh Defense Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
303842: H0G87 - Wiba Zevenaar B.V. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
18257-003: D2638 - Eme Elektro-Metall Export Gmbh (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
22489R1: 66195 - Solar Turbines Incorporated (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
12569621-6: 19207 - U S Army Tank Automotive Command (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
907079: A274N - Scandinavian Manufacturing Scama Ab (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
S210NA38CAD14354BNCG1: 80204 - American National Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
73032: 63079 - Thermasys Corporation (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
03-2-1333: 15652 - Dyna Systems Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS90728-6: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 MEDALS DAC 4
18257-003: 21439 - Curtiss-Wright Flow Control Service, (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
22489R1: 55820 - Raytheon Technologies Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
2109HX1: 45152 - Oshkosh Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 MEDALS DAC 5
B1821BH025C075N: 80204 - American National Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
5305000680508: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
10082360: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5305PL0655495: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
91247A540: 39428 - Mcmaster-Carr Supply Co (Active); Advisory Reference; RNCC C RNVC 1 DAC E
903-007: 72741 - Dorman Products, Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC E
803-007: 72741 - Dorman Products, Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC E
15A00404-0000 ITEM NO 83: 01425 - Louis Allis Co The (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 5
50P01005-2011: 01425 - Louis Allis Co The (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 5
60194: 40608 - Miller Electric Mfg. Co. (Replaced); Advisory Reference; RNCC C RNVC 1 DAC A
443603: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
018945075: 5N978 - Therma-Tech Engineering Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
306-40025: 9F512 - Parker-Hannifin Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
M29-00288 PC NO 94: 9F512 - Parker-Hannifin Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
920073: 07524 - Dover Pumps & Process Solutions (Active); Advisory Reference; RNCC C RNVC 1 MEDALS DAC A
000-8006-992: 94756 - The Boeing Company (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
M19-20873 PC NO 124: 9F512 - Parker-Hannifin Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
108940: 40608 - Miller Electric Mfg. Co. (Replaced); Advisory Reference; RNCC C RNVC 1 DAC A
803-5959276PC6: 53711 - Naval Sea Systems Command (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
803-5959276-06: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
803-007: 08081 - Ohio Auto Parts Co (Obsolete); Advisory Reference; RNCC C RNVC 1 DAC 5
15A00406-0000 I: 01425 - Louis Allis Co The (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 6
73032: 4C8A9 - Api Heat Transfer Thermasys (Active); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 5305-00-068-0508

Characteristic
Specifications
FIIG: A003B0
End Item Identification [AGAV]: Mrap - Buffalo Mk2a2;Mrap - M-Atv With Cs13 Pop And Sne; Mrap - M-Atv Ui; Mrap - Cougar Tow - Medium Mine Protected Vehicle - Mmpv
Criticality Code Justification [CRTL]: Feat

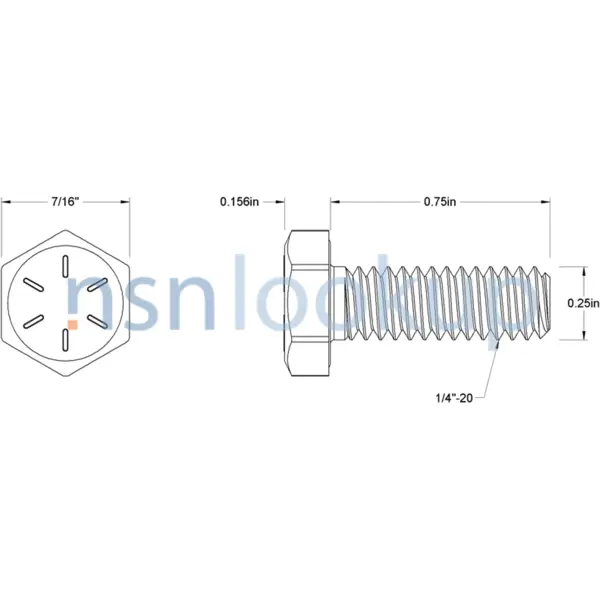

Fastener Length [AASB]: 0.719 Inches Minimum And 0.750 Inches Maximum
