5305-00-068-0500

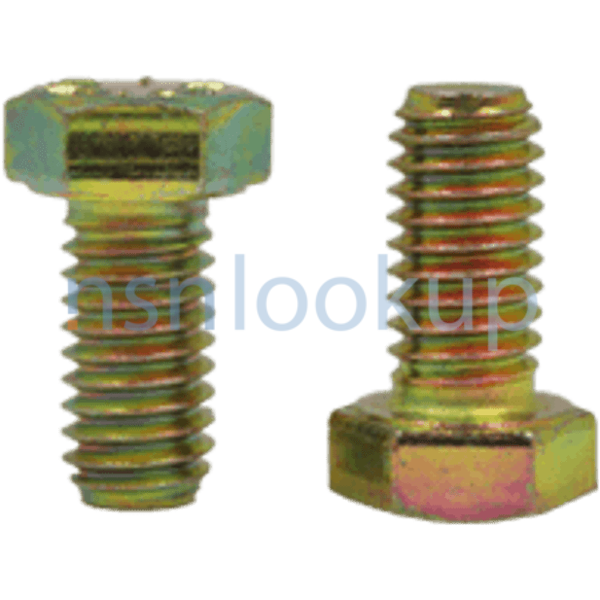

Hexagon Head Cap Screw
5305000680500 000680500 ASME B18.2.1 7-112-140450 318.2 MS90725-3 SK-6001-6 015587T 132848 95053070 95423653 28988-4 8U56702-112 02200 0702060 MS35297-3 B18.2.1 AN65-4-4 402352308 62500-7 AF65-4-4 012354-2 MS35291-3 CSA46563 TG201271 PC6 D-21496-1
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
June 2025
71
Marketplace 5305-00-068-0500
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5305-00-068-0500 5+ Documents (More...)
-112 02200 0702060 MS35297-3 B18.2.1 AN65-4-4 402352308 62500-7 AF65-4-4 012354-2 MS35291-3 CSA46563
TG201271 PC6 D-21496-1 An externally threaded fastener designed for insertion into holes in assembled
MS90725-3 SCREW,CAP,HEXAGON HEAD 25 HD NS Request Quotation Subscribe to View Vendor Details...
MS90725-3 SCREW,CAP,HEXAGON HEAD 200 HD NS Request Quotation Subscribe to View Vendor Details...
MS90725-3 SCREW,CAP,HEXAGON HEAD 25 EA NS Request Quotation Subscribe to View Vendor Details...
MS90725-3 SCREW,CAP,HEXAGON HEAD 190 EA NS Request Quotation Subscribe to View Vendor Details...
MS90725-3 SCREW,CAP,HEXAGON HEAD 25 EA NS Request Quotation Subscribe to View Vendor Details...
MS90725-3 SCREW,CAP,HEXAGON HEAD 200 EA NS Request Quotation Subscribe to View Vendor Details...
5306-01-692-6260Machine Bolt5306016926260 016926260 ASME B18.2.1 https//www.nsnlookup.com /fsg-53/fsc
21-898-4572Machine Bolt5306218984572 218984572 B18.2.1 -0882Machine Bolt5306000190882 000190882 ASME-B18.2.1
Restrictions 5305-00-068-0500
5305-00-068-0500 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-00-068-0500
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-068-0500
- US Army (A191)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AJCTCLBFAZ
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- US Air Force (FXGS)
- Effective Date:
- 1 Oct 2000
- Former MOE Rule:
- FEGS
- Supplementary Receivers:
- TG
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G861)
- Effective Date:
- 1 Apr 1991
- NASA (G881)
- Effective Date:
- 1 Apr 1991
- NASA (G931)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTJNJBHXHSHD
- Supplementary Receivers:
- JVKE
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Finland (WF01)
- Effective Date:
- 1 Jul 2015
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Poland (WP01)
- Effective Date:
- 1 Apr 2006
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Jun 1996
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5305-00-068-0500
- Part Number
- Manufacturer
- Status
- ASME B18.2.1
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- 7-112-140450
- 12361 - Grove U.S. Llc (Active)
- Incomplete Reference
- Incomplete Reference
- 318.2
- 80204 - American National Standards (Active)
- Incomplete Reference
- Incomplete Reference
- 015587T
- 59556 - Kovatch Corp. (Active)
- Primary Buy
- Primary Buy
- 132848
- 89646 - Sanstorm Inc (Active)
- Primary Buy
- Primary Buy
- 95053070
- 51436 - Ingersoll-Rand Company (Active)
- Primary Buy
- Primary Buy
- 95423653
- 57498 - Eagle Compressors, Inc. (Active)
- Primary Buy
- Primary Buy
- 28988-4
- 11599 - Triumph Engine Control Systems Llc (Active)
- Primary Buy
- Primary Buy
- MS90725-3
- 96906 - Military Standards (Active)
- Incomplete Standard
- Incomplete Standard
- SK-6001-6
- 0EAK3 - Gse Management Co (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- D-21496-1
- 5RQL2 - Drs Environmental Systems Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 62500-7
- 5RQL2 - Drs Environmental Systems Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 8U56702-112
- 07703 - Atk Launch Systems Llc (Active)
- Secondary Buy
- Secondary Buy
- 02200
- 96046 - Crane Pumps & Systems Pft Corp (Active)
- Secondary Buy
- Secondary Buy
- 0702060
- S3002 - General Dynamics European, (Active)
- Secondary Buy
- Secondary Buy
- MS35297-3
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B18.2.1
- 80204 - American National Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN65-4-4
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 402352308
- S5686 - Israel Military Industries Ltd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305000680500
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 62500-7
- 90598 - Engineered Air Systems Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AF65-4-4
- 82395 - Vinco Products (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 012354-2
- 1FP59 - Ikon Systems Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- MS35291-3
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- CSA46563
- 82254 - Curtis Dyna-Fog, Ltd. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- TG201271 PC6
- 28839 - Teledyne Industries Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305-068-0500
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- D-21496-1
- 90598 - Engineered Air Systems Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 0251512
- H0001 - Daf Trucks N.V. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 70009-3
- 95097 - Little Giant Crane And Shovel Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 16257
- 19422 - Demarkus Corp Refrigeration (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 10386407
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 5305-068-0500
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 5305PL0682840
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5305000680500
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5305-00-068-0500
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.500 Inches Nominal
- Hardness Rating [CQFM]
- 23.0 Rockwell C Minimum Overall And 32.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.150 Inches Minimum And 0.163 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Sae Gr 5 Assn Std Single Material Response Overall
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 120000 Pounds Per Square Inch
- Minimum Yield Strength [CQHQ]
- 85000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Width Between Flats [AATB]
- 0.428 Inches Minimum And 0.438 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Sae/Ams Qq-P-416 Ty2cl3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.500 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 20
- Thread Series Designator [THSD]
- Unc
DLA Procurement Analysis 5305-00-068-0500
Management Data 5305-00-068-0500
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9Q
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 5305-00-068-0500
Freight Information 5305-00-068-0500
5305-00-068-0500 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-068-0500 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-068-0500 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-068-0500 is not classified as a special type of cargo when transported by water. 5305-00-068-0500 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
