5305-00-058-5087

Socket Head Cap Screw

5305000585087 000585087 NAS608-3H12 NAS1351-3H12

An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE. View more Socket Head Cap Screw

5305-00-058-5087 SCREW,CAP,SOCKET HEAD 5305000585087 000585087

Managed by United States
NSN Created on 1 Jan 1961
Data Last Changed
November 2023
NATO Update Count
9
NATO Data Quality
5305-00-058-5087 SCREW,CAP,SOCKET HEAD 5305000585087 000585087 1/4

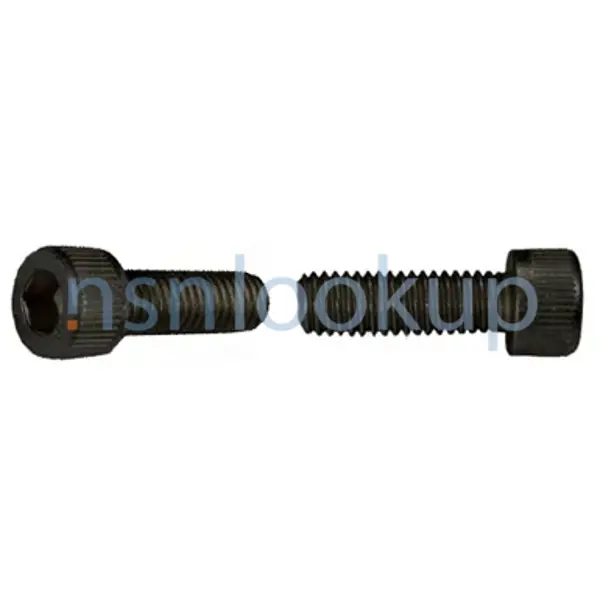

5305-00-058-5087 Photo 1/4
AASK Style C49 for 5305-00-058-5087 2/4
NSN 5305-00-058-5087 (Identification) 2/4
ABQZ Style D5 for 5305-00-058-5087 3/4
NSN 5305-00-058-5087 (Identification) 3/4
CRHC Style E9 for 5305-00-058-5087 4/4
NSN 5305-00-058-5087 (Identification) 4/4

5305-00-058-5087 Stock and Availability Marketplace 5305-00-058-5087

5305-00-058-5087 Related Documents Related Documents 5305-00-058-5087 5+ Documents (More...)

NAS608-3H12 NAS1351-3H12 An externally threaded fastener whose threaded portion is of one nominal diameter
Photo 1/4 NSN 5305-00-058-5087 (Identification) 2/4 NSN 5305-00-058-5087 (Identification) 3/4 NSN
NAS1351-3H12 SCREW,CAP,SOCKET HEAD 3 EA NS Request Quotation NAS1351-3H12 SCREW,CAP,SOCKET HEAD 3 EA
Request Quotation Subscribe to View Vendor Details... https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-058-5087
Socket Head Cap Screw 5305000585087 NAS1351-3H12 An externally threaded fastener whose threaded
NAS1351-3H12 SCREW,CAP,SOCKET HEAD 2 EA NS Request Quotation Subscribe to View Vendor Details...
318-5295 5305-01-353-0294 5305-00-210-4866 5305-00-182-7460 5305-00-138-9866 5305-00-155-3367 5305-00-058-5087
318-5295 5305-01-353-0294 5305-00-210-4866 5305-00-182-7460 5305-00-138-9866 5305-00-155-3367 5305-00-058-5087
318-5295 5305-01-353-0294 5305-00-210-4866 5305-00-182-7460 5305-00-138-9866 5305-00-155-3367 5305-00-058-5087

5305-00-058-5087 Demil Restrictions 5305-00-058-5087

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: U | EDC: | ADPEC:

5305-00-058-5087 is a Socket Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

5305-00-058-5087 HTS and ScheduleB Import and Export 5305-00-058-5087

5305-00-058-5087 End Users End Users 5305-00-058-5087

US Air Force (FXGI)
Effective Date:
1 Jun 2005
Former MOE Rule:
FXKZ
US Navy (N9BZ)
Effective Date:
1 Jun 2005
Former MOE Rule:
N9ZD
Supplementary Collaborators:
GTKE
Spain (YB01)
Effective Date:
1 Apr 1991
Germany (ZG01)
Effective Date:
1 Apr 1991
Italy (ZR01)
Effective Date:
1 Jul 1997

5305-00-058-5087 Manufacturers Approved Sources 5305-00-058-5087

5305-00-058-5087 Technical Data Datasheet 5305-00-058-5087

Characteristic
Specifications
FIIG
A003B0
Fastener Length [AASB]
0.740 Inches Minimum And 0.770 Inches Maximum
Hardness Rating [CQFM]
36.0 Rockwell C Minimum Overall And 45.0 Rockwell C Maximum Overall
Head Diameter [AASL]
0.306 Inches Minimum And 0.313 Inches Maximum
Head Height [AASU]
0.185 Inches Minimum And 0.190 Inches Maximum
Head Style [AASK]
Flat Chamfer
Hole Configuration Style [CRHC]
Round
Hole Diameter [AAUB]
0.037 Inches Nominal
Hole Quantity [ASXK]
2
Hole Type [BQDM]
Drilled
Material [MATT]
Steel Overall
Minimum Tensile Strength [CQBC]
160000 Pounds Per Square Inch
Minimum Yield Strength [CQHQ]
130000 Pounds Per Square Inch
Nominal Thread Diameter [AHYM]
0.190 Inches
Internal Drive Style [ABQZ]
Hexagon
Material Document And Classification [MDCL]
66 Fed Std Single Material Response Overall
Width Across Flats [ASDB]
0.156 Inches Minimum And 0.158 Inches Maximum
Thread Class [AAJD]
3A
Thread Direction [AAJF]
Right-Hand
Thread Length [AASA]
0.770 Inches Maximum
Thread Quantity Per Inch [CMLP]
32
Thread Series Designator [THSD]
Unf

5305-00-058-5087 Weapon Systems (WSDC) Weapon Systems (WSDC) 5305-00-058-5087

5305-00-058-5087 Stock, Inventory and Procurement DLA Procurement Analysis 5305-00-058-5087

Last Stock Position:
2384 In Stock
DLA Administrative Lead Time:
Subscribe
DLA Production Lead Time:
Subscribe
Subscribe to View DLA Inventory and Forecast...

5305-00-058-5087 Management Data Management Data 5305-00-058-5087

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Oct 2022
Department of the Air Force (DF)
EA
Subscribe
Oct 2021
Department of the Air Force (DF)
EA
Subscribe
May 2021
Department of the Air Force (DF)
EA
Subscribe
Oct 2019
Department of the Air Force (DF)
EA
Subscribe

Navy Navy

Cognizance:
9B
Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

5305-00-058-5087 Similar Items Similar Supply Items to 5305-00-058-5087

5305-00-058-5087 Freight Data Freight Information 5305-00-058-5087

5305-00-058-5087 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-058-5087 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-058-5087 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-058-5087 is not classified as a special type of cargo when transported by water. 5305-00-058-5087 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

5305-00-058-5087 Packaging Data Packaging Data 5305-00-058-5087

Responsible Activity
Packaging Data Source
Primary Inventory Control Activity (PICA)
--

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation
--
--
Plated/Coated Item
2lb or less, one dimension 2" or less, other dimensions less than 24"
Above 110G
No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying
--
--
--
--
Physical Protection
Any Suitable Process
Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking
No Requirement
No Requirement
No Requirement
Not Applicable
Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container
PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

5305-00-058-5087 Procurement History Procurement History 5305-00-058-5087 2 Records

Contract
Date
CAGE
Quantity
Net Price
Std Price
SPE5E318V0368
17 Oct 2017
Subscribe
1761
Subscribe
Subscribe
SPE5E214V7076
05 May 2014
Subscribe
400
Subscribe
Subscribe

5305-00-058-5087 Contracting Technical Data File (CTDF) Contracting Technical Data File (CTDF) 5305-00-058-5087 October 2020

Criticality and Quality

Critical Item Code:
X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):
F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
