5210-01-550-6845

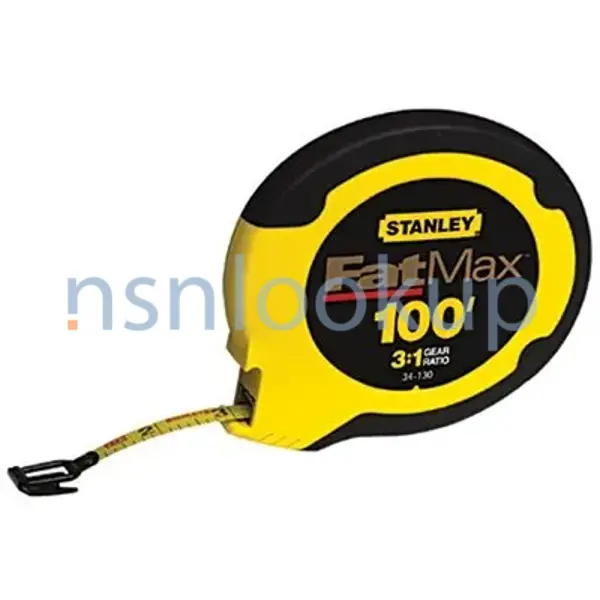

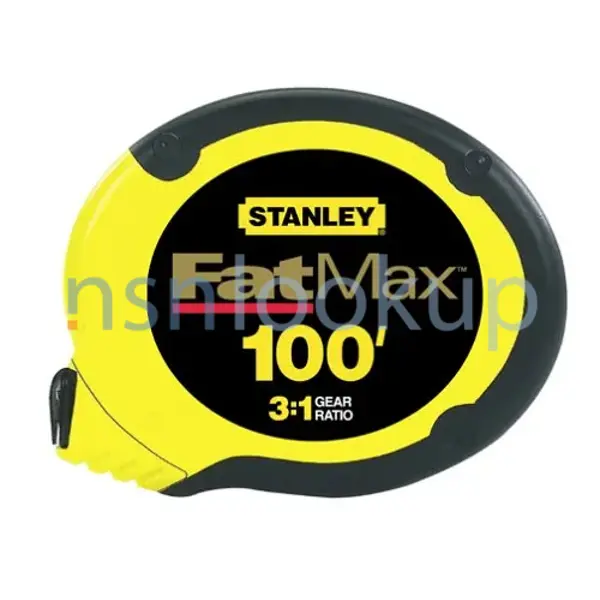

Measuring Tape
5210015506845 015506845 C2750DMM
A narrow strip of flexible material graduated with markings to indicate a specific type of measure such as arithmetic, geometric, metric, or the like. All tapes are used principally in measuring distances and dimensions too long to be measured by a ruler, are usually enclosed into a case with accommodations for rewinding and may or may not have a ring at one end. Includes dressmaker tapes to heavy-duty types sometimes called surveyor's chains, usually mounted in reels with holding handles. View more Measuring Tape
May 2023
5
Marketplace 5210-01-550-6845
Request a Quotation from participating marketplace vendors
Related Documents 5210-01-550-6845 1+ Documents (More...)
/fsg-52/fsc-5210/us
/fsg-52/fsc-5210/us 5210-01-550-6845 Measuring Tape 5210015506845015506845 Photo 1/2 5210-01-550-6845
Updated Every Day 5210-01-550-6845 RQST NE Updated Every Day 5210-01-550-6845 RQST Updated Every Day
Restrictions 5210-01-550-6845
5210-01-550-6845 is a Measuring Tape that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5210-01-550-6845
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5210-01-550-6845
- Canada (ZC01)
- Effective Date:
- 1 Apr 2007
Approved Sources 5210-01-550-6845
- Part Number
- Manufacturer
- Status
- C2750DMM
- Manufacturer
- 65LN0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- C2750DMM
- 37163 - Cooper Industries Inc Lufkin/Cooper (Replaced)
- Original Design
- Original Design
Datasheet 5210-01-550-6845
- Characteristic
- Specifications
- FIIG
- Specifications
- T299-E
- Design Type [APGF]
- General Purpose Distance Measuring
- Material [MATT]
- Steel
- Measuring Capacity [CMWL]
- 50 Meters (164 Feet)
- National Bureau Of Standards Certification [BTHJ]
- Not Provided
- Inclosure Type [AKNA]
- Reel
- Marking Type [CNJQ]
- Painted
- Plumb Bob [CNJN]
- Not Included
- Reading Direction [CMWC]
- Left To Right
- Width [ABGL]
- 0.250 Inches Nominal
- Winding Method [AQRE]
- Hand Crank
- Standard Graduation Unit [CMWK]
- Millimeters And Meters; Inches And Feet
- Surface Treatment [SFTT]
- Chromium
- Tape Smallest Graduation Unit [CMWM]
- 1 Mm; 1/10 And 1/100 In.
NATO Stock Numbers Related to 5210-01-550-6845
Freight Information 5210-01-550-6845
5210-01-550-6845 has freight characteristics managed by the Department of the Air Force.. 5210-01-550-6845 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
