5210-01-428-5581

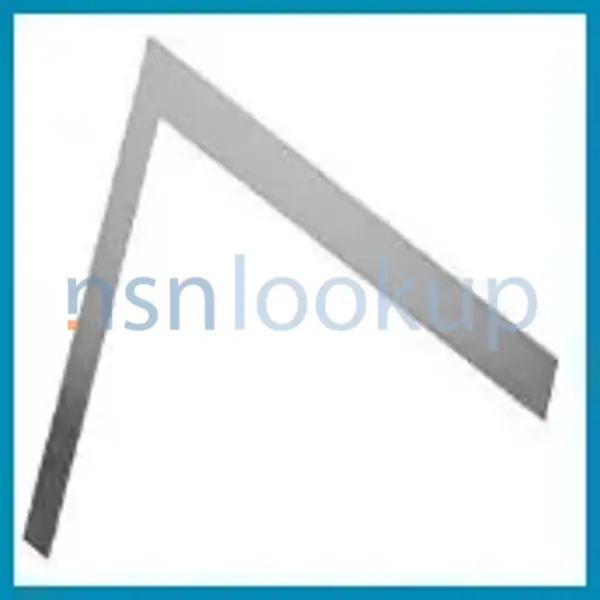

Carpenter's Square
5210014285581 014285581 45-500 6R157
A measuring tool consisting of a metal body (long leg) and a tongue (short leg) forming a 90 degree (1.6 radians) angle. Both the body and the tongue may be of the same thickness or may be tapered from the apex to the end of each leg. The item is graduated either on both edges or the outside edges only. May be inscribed with one or more reference tables. The item may be graduated for at least a portion of the blade in increments smaller than 1/32 inch (0.8 mm). View more Carpenter's Square
May 2023
8
Marketplace 5210-01-428-5581
Request a Quotation from participating marketplace vendors
Related Documents 5210-01-428-5581 3+ Documents (More...)
,CARPENTER'S RQST NS Request Quotation Updated Every Day 45-500 RQST NE Updated Every Day 6R157 RQST
NE Updated Every Day 5210-01-428-5581 RQST NE Updated Every Day 5210-01-428-5581 RQST Updated Every Day
Restrictions 5210-01-428-5581
5210-01-428-5581 is a Carpenter's Square that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5210-01-428-5581
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5210-01-428-5581
- US Army (A192)
- Effective Date:
- 1 May 1996
- Supplementary Receivers:
- BF
- US Air Force (FGGS)
- Effective Date:
- 1 May 1996
- NASA (G751)
- Effective Date:
- 1 Mar 1996
- US Marine Corps (MC14)
- Effective Date:
- 1 May 1996
- US Navy (N9QG)
- Effective Date:
- 1 May 1996
- Supplementary Collaborators:
- HDHS
- Supplementary Receivers:
- JV
- Turkey (ZW01)
- Effective Date:
- 1 Oct 2009
Approved Sources 5210-01-428-5581
- Part Number
- Manufacturer
- Status
- 45-500
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 6R157
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 45-500
- 78525 - Stanley Tools Div Of Stanley Works (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5210-01-428-5581
- Characteristic
- Specifications
- FIIG
- Specifications
- T299-A
- Blade Edge Smallest Graduation Unit [CMTC]
- 1/8 Inch
- Body Length [ADAQ]
- 24.000 Inches Nominal
- Design Type [APGF]
- One-Piece
- Material [MATT]
- Steel
- Special Features [FEAT]
- Buffed Finish; Reverse Reading Scale
- Tongue Length [ACUL]
- 16.000 Inches
Management Data 5210-01-428-5581
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5210-01-428-5581
Freight Information 5210-01-428-5581
5210-01-428-5581 has freight characteristics.. 5210-01-428-5581 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
