5210-01-428-5465
Measuring Tape
5210014285465 014285465 30-506 6R051
A narrow strip of flexible material graduated with markings to indicate a specific type of measure such as arithmetic, geometric, metric, or the like. All tapes are used principally in measuring distances and dimensions too long to be measured by a ruler, are usually enclosed into a case with accommodations for rewinding and may or may not have a ring at one end. Includes dressmaker tapes to heavy-duty types sometimes called surveyor's chains, usually mounted in reels with holding handles. View more Measuring Tape
May 2023
15
Marketplace 5210-01-428-5465
Request a Quotation from participating marketplace vendors
Related Documents 5210-01-428-5465 5+ Documents (More...)

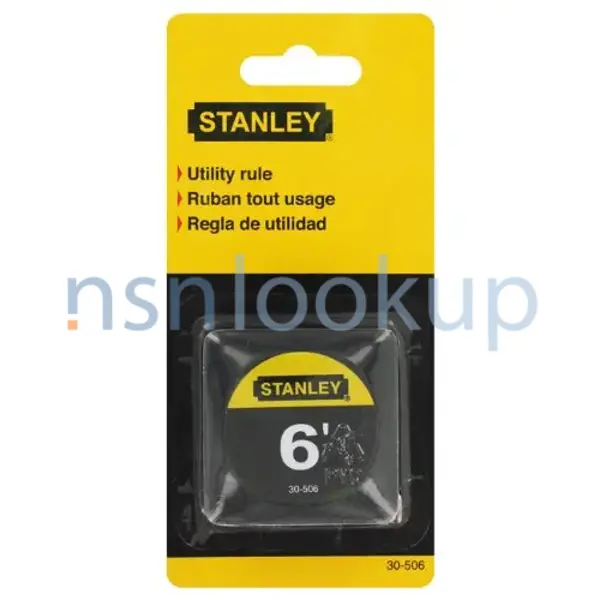

Photo 1/3 5210-01-428-5465 Photo 2/3 5210-01-428-5465 Photo 3/3 - - - 1.
TAPE,MEASURING 10 EA NS Request Quotation Updated Every Day 30-506 RQST NE Updated Every Day 6R051 RQST
/fsg-83/fsc-8315/dk
/fsg-83/fsc-8315/fr
/fsg-83/fsc-8315/nz
Restrictions 5210-01-428-5465
5210-01-428-5465 is a Measuring Tape that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5210-01-428-5465
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5210-01-428-5465
- Singapore (YJ01)
- Effective Date:
- 1 Feb 2004
- Greece (ZU01)
- Effective Date:
- 1 May 2008
Approved Sources 5210-01-428-5465
- Part Number
- Manufacturer
- Status
- 30-506
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 6R051
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5210-01-428-5465
- Characteristic
- Specifications
- FIIG
- Specifications
- T299-E
- Design Type [APGF]
- General Purpose Distance Measuring
- Material [MATT]
- Steel
- Measuring Capacity [CMWL]
- 6 Feet
- Inclosure Type [AKNA]
- Case
- Reading Direction [CMWC]
- Left To Right
- Width [ABGL]
- 0.500 Inches Nominal
- Winding Method [AQRE]
- Automatic Spring
- Special Features [FEAT]
- Yellow Blade; Stud Markings Every 16 In.; Black Abs Plastic Case
- Standard Graduation Unit [CMWK]
- Inches
- Tape Smallest Graduation Unit [CMWM]
- 1/16 In.
Similar Supply Items to 5210-01-428-5465
Freight Information 5210-01-428-5465
5210-01-428-5465 has freight characteristics.. 5210-01-428-5465 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
