5210-01-399-9331

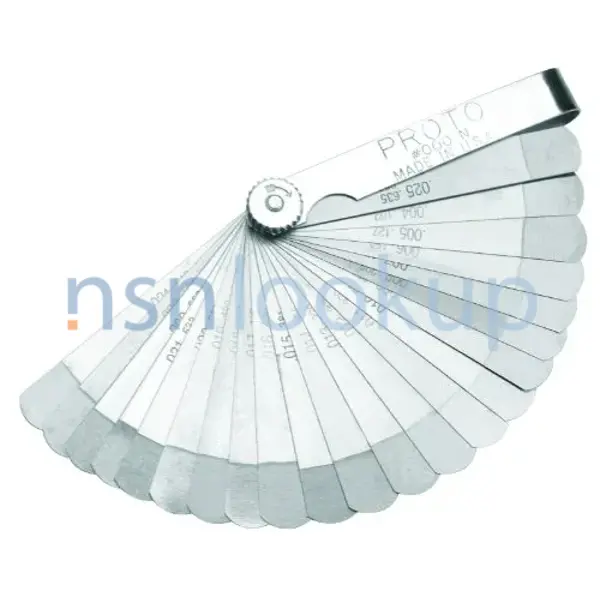

Thickness Gage
5210013999331 013999331 J000N 5C587 000N
One or more tempered steel blades (leaves) ground to and marked with their respective thickness and mounted in a holder or encased within a frame or case into which the leaves fold. It is used for checking narrow slots or gaging the clearance between fitted parts. Excludes BLADE, THICKNESS GAGE. See also GAGE, GAP SETTING. View more Thickness Gage
Managed by United States
NSN Created on 7 Dec 1994
Data Last Changed
May 2023
May 2023
NATO Update Count
14
14
NATO Data Quality
Marketplace 5210-01-399-9331
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5210-01-399-9331 5+ Documents (More...)
J000N 5C587 000N One or more tempered steel blades (leaves) ground to and marked with their respective
GAGE,THICKNESS RQST NS Request Quotation Updated Every Day J000N RQST NE Updated Every Day 000N
RQST NE Updated Every Day 5C587 RQST NE Updated Every Day 5210-01-399-9331 RQST NE Updated Every Day
GAGE,THICKNESS RQST NS Request Quotation Updated Every Day J000N RQST NE Updated Every Day 000N
RQST NE Updated Every Day 5C587 RQST NE Updated Every Day 5210-01-399-9331 RQST NE Updated Every Day
day Upgrade your Account Upgrade 5945-14-556-1243Solenoid Assembly5945145561243 145561243 2035-200-000N
SOLENOID ASSEMBLY 30 EA NS Request Quotation Subscribe to View Vendor Details... 2035-200-000N 5945-14
Thickness Gage 5210013999331 013999331,J000N Solenoid Assembly 5945145561243145561243 day Upgrade
SOLENOID ASSEMBLY 30 EA NS Request Quotation Subscribe to View Vendor Details... 2035-200-000N 5945-14
Thickness Gage 5210013999331 013999331,J000N Solenoid Assembly 5945145561243145561243 day Upgrade
Upgrade your Account Upgrade 6060-01-687-5699Fiber Optic Plug Connector6060016875699 016875699 CF-5PT6J8-000N
Thickness Gage 5210013999331 https//www.nsnlookup.com /fsg-52/fsc-5210/us 5210-01-399-9331 Thickness
Gage 5210013999331 013999331,J000N to View Vendor Details... 2035-200-000N 5945-14 https//www.nsnlookup.com
Thickness Gage 5210013999331 https//www.nsnlookup.com /fsg-52/fsc-5210/us 5210-01-399-9331 Thickness
Gage 5210013999331 013999331,J000N to View Vendor Details... 2035-200-000N 5945-14 https//www.nsnlookup.com
enable JavaScript in your web browser . 4020-22-272-0004Hemp Rope4020222720004 222720004 N04 0080 000N
Approved Sources 4020-22-272- https//www.nsnlookup.com https//www.nsnlookup.com /fsg-52/fsc-5210/us 5210-01-399-9331
Thickness Gage 5210013999331 013999331,J000N Connector6060016875699 016875699CF-5PT6J8-000N https
Approved Sources 4020-22-272- https//www.nsnlookup.com https//www.nsnlookup.com /fsg-52/fsc-5210/us 5210-01-399-9331
Thickness Gage 5210013999331 013999331,J000N Connector6060016875699 016875699CF-5PT6J8-000N https
https//www.nsnlookup.com
/fsg-59/fsc-5945/us
/fsg-59/fsc-5945/us
5945-01-191-0108 Relay Assembly 5945011910108 011910108
a day Upgrade your Account Upgrade 5945-01-191-0108Relay Assembly5945011910108 011910108 502-1454-000N
502-154-000N 5043-156 Two or more RELAYS (as modified) having a common mounting or mounted on each other
Thickness Gage 5210013999331 013999331,J000N Part NumberManufacturerStatus502-154-000N https https
502-154-000N 5043-156 Two or more RELAYS (as modified) having a common mounting or mounted on each other
Thickness Gage 5210013999331 013999331,J000N Part NumberManufacturerStatus502-154-000N https https
Restrictions 5210-01-399-9331
5210-01-399-9331 is a Thickness Gage that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5210-01-399-9331
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5210-01-399-9331
- US Coast Guard (C014)
- Effective Date:
- 1 Jan 1995
- US Air Force (FGGS)
- Effective Date:
- 1 Jan 1995
- NASA (G751)
- Effective Date:
- 1 Dec 1994
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2014
- Supplementary Collaborators:
- GG
- Canada (ZC01)
- Effective Date:
- 1 Apr 2014
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2008
Approved Sources 5210-01-399-9331
- Part Number
- Manufacturer
- Status
- J000N
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 5C587
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- J000N
- Z19N0 - The Trustee For Henchman Unit Trust (Active)
- Secondary Buy
- Secondary Buy
- 000N
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- J000N
- ZAE87 - Henchman Products Pty Ltd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5210-01-399-9331
- Characteristic
- Specifications
- FIIG
- Specifications
- T299-K
- Blade Group Quantity [CNLG]
- 1
- Blade Length [AEAE]
- 3.312 Inches Nominal
- Blade Lock [CNLH]
- Not Included
- Blade Quantity [AJLB]
- 22
- Blade Shape [AJMH]
- Straight
- Blade Thickness [CPMW]
- 0.0050 Inches And 0.0070 Inches 2Nd Blade
- Blade Thickness [CPMW]
- 0.0040 Inches And 0.0060 Inches 1St Blade
- Blade Thickness [CPMW]
- 0.0080 Inches And 0.0100 Inches 5Th Blade
- Blade Thickness [CPMW]
- 0.0060 Inches And 0.0080 Inches 3Rd Blade
- Blade Thickness [CPMW]
- 0.0070 Inches And 0.0090 Inches 4Th Blade
- Blade Thickness [CPMW]
- 0.0100 Inches And 0.0120 Inches 7Th Blade
- Blade Thickness [CPMW]
- 0.0090 Inches And 0.0110 Inches 6Th Blade
- Blade Thickness [CPMW]
- 0.0130 Inches And 0.0150 Inches 10Th Blade
- Blade Thickness [CPMW]
- 0.0110 Inches And 0.0130 Inches 8Th Blade
- Blade Thickness [CPMW]
- 0.0120 Inches And 0.0140 Inches 9Th Blade
- Blade Thickness [CPMW]
- 0.0150 Inches And 0.0170 Inches 12Th Blade
- Blade Thickness [CPMW]
- 0.0140 Inches And 0.0160 Inches 11Th Blade
- Blade Thickness [CPMW]
- 0.0180 Inches And 0.0200 Inches 15Th Blade
- Blade Thickness [CPMW]
- 0.0160 Inches And 0.0180 Inches 13Th Blade
- Blade Thickness [CPMW]
- 0.0170 Inches And 0.0190 Inches 14Th Blade
- Blade Thickness [CPMW]
- 0.0210 Inches And 0.0230 Inches 18Th Blade
- Blade Thickness [CPMW]
- 0.0190 Inches And 0.0210 Inches 16Th Blade
- Blade Thickness [CPMW]
- 0.0200 Inches And 0.0220 Inches 17Th Blade
- Blade Thickness [CPMW]
- 0.0240 Inches And 0.0260 Inches 21St Blade
- Blade Thickness [CPMW]
- 0.0220 Inches And 0.0240 Inches 19Th Blade
- Blade Thickness [CPMW]
- 0.0230 Inches And 0.0250 Inches 20Th Blade
- Blade Thickness [CPMW]
- 0.0250 Inches And 0.0270 Inches 22Nd Blade
- Blade Tip Width [CMZF]
- 0.500 Inches Nominal
- Measurement System [BDLS]
- English
- Special Features [FEAT]
- Stepped Blades; Blades Etched In Decimal And Metric Equivalents
Management Data 5210-01-399-9331
Navy
- Cognizance:
- 9Q
Similar Supply Items to 5210-01-399-9331
Freight Information 5210-01-399-9331
5210-01-399-9331 has freight characteristics.. 5210-01-399-9331 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
