5210-01-399-9325
Thickness Gage
5210013999325 013999325 J000SL 3R012 000SL

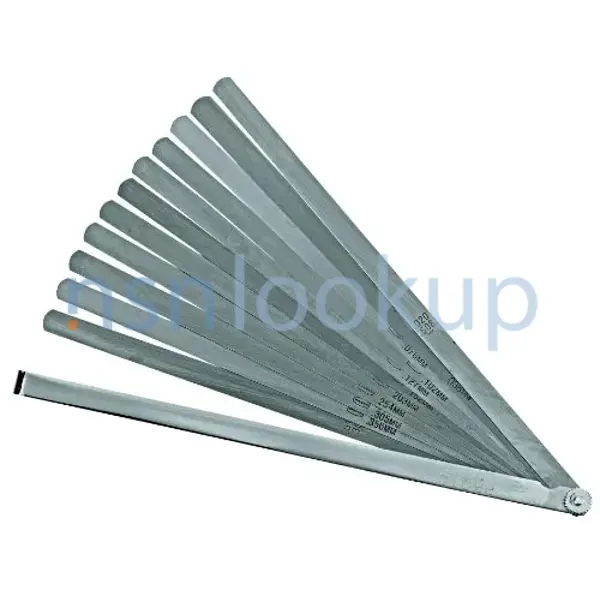

One or more tempered steel blades (leaves) ground to and marked with their respective thickness and mounted in a holder or encased within a frame or case into which the leaves fold. It is used for checking narrow slots or gaging the clearance between fitted parts. Excludes BLADE, THICKNESS GAGE. See also GAGE, GAP SETTING. View more Thickness Gage
May 2023
10
Marketplace 5210-01-399-9325
Request a Quotation from participating marketplace vendors
Related Documents 5210-01-399-9325 2+ Documents (More...)
/fsg-52/fsc-5210/us
GAGE,THICKNESS 10 EA NS Request Quotation Updated Every Day J000SL RQST NE Updated Every Day 000SL RQST
NE Updated Every Day 3R012 RQST NE Updated Every Day 5210-01-399-9325 RQST NE Updated Every Day 5210
Restrictions 5210-01-399-9325
5210-01-399-9325 is a Thickness Gage that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5210-01-399-9325
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5210-01-399-9325
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2008
Approved Sources 5210-01-399-9325
- Part Number
- Manufacturer
- Status
- J000SL
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 3R012
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 000SL
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5210-01-399-9325
- Characteristic
- Specifications
- FIIG
- Specifications
- T299-K
- Blade Group Quantity [CNLG]
- 1
- Measurement System [BDLS]
- English
- Blade Shape [AJMH]
- Straight
- Blade Quantity [AJLB]
- 12
- Blade Length [AEAE]
- 12.000 Inches Nominal
- Blade Tip Width [CMZF]
- 0.500 Inches Nominal
- Special Features [FEAT]
- Blades Etched With Decimal And Metric Equivalents
Similar Supply Items to 5210-01-399-9325
Freight Information 5210-01-399-9325
5210-01-399-9325 has freight characteristics.. 5210-01-399-9325 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
