5210-01-260-9549
Dial Indicator
5210012609549 012609549 711FSAZ A-A-2348 A-A-2348 TYCST3 MIL-I-18422TYPE3STYLE C 0-15-0 MIL-I-18422
A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING. View more Dial Indicator
January 2023
13
Marketplace 5210-01-260-9549
Request a Quotation from participating marketplace vendors
Related Documents 5210-01-260-9549 5+ Documents (More...)
/fsg-52/fsc-5210/us
MIL-I-18422 INDICATOR,DIAL 11 EA NS Request Quotation Updated Every 15 Minutes 5210-01-260-9549 BUY NE
Updated Every Day Search Global Test Supply 711FSAZ RQST NE Updated Every Day 5210-01-260-9549 RQST
/fsg-52/fsc-5210/us
/fsg-52/fsc-5210/us 5210-01-260-9549 Dial Indicator 5210012609549 012609549 A-A-2348A-A-2348 TYCST3
TY3STASZ2 MIL-I-18422 A mechanism for amplifying A-A A-A-2348 TYAST3 282 SK510192PC11 7551254 MIL-I-
/fsg-52/fsc-5210/us
A mechanism for amplifying and measuring the displacement A-A -2348 TYAST3 282 SK510192PC11 -52
Dial Indicator 5210012609549 012609549 A-A-2348 TYCST3 MIL-I-18422TYPE3STYLE C 0-15-0 MIL-I-18422
/fsg-52/fsc-5210/us
/fsg-52/fsc-5210/us 5210-01-260-9549 Dial Indicator 5210012609549 012609549 A-A-2348 TYCST3 MIL-I-18422TYPE3STYLE
A-A-2348 TYBST3 60100B-GSA MIL-I-18422 https//www.nsnlookup.com 003776525 A-A-2348 TYBST3 60100B-GSA
TY3STASZ2 MIL-I-18422 7731 MIL-I TY1STA MIL-I-18422 50090158 MIL-I-18422 TY3STASZ2 TY3STASZ2 MIL-I
-18422 A-A-2348 TYBST3 196A 8039138 50090158 MIL-I- 18422 TY3STASZ2 MIL-I-18422 https//www.nsnlookup.com
Restrictions 5210-01-260-9549
5210-01-260-9549 is a Dial Indicator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5210-01-260-9549
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5210-01-260-9549
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Nov 2009
Approved Sources 5210-01-260-9549
- Part Number
- Manufacturer
- Status
- 711FSAZ
- Manufacturer
- 57163 - L.S. Starrett Company (The) (Active)
- Incomplete Reference
- Incomplete Reference
- A-A-2348
- 58536 - Federal Commercial Item Description (Active)
- Incomplete Standard
- Incomplete Standard
- A-A-2348 TYCST3
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MIL-I-18422TYPE3STYLE C 0-15-0
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-I-18422
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5210-01-260-9549
- Characteristic
- Specifications
- FIIG
- Specifications
- T299-Z
- Accessory Components And Quantity [AKYD]
- Universal Shank,1; Case 1
- Bearing Type [BYDT]
- Jewel
- Contact Point Action Type [CPQZ]
- Swivel
- Contact Point Style Designator [CPRB]
- Ball
- Contact Point Location [CPQY]
- Extension Arm End
- Cushioned Movement Feature [CPRC]
- Not Included
- Dial Marking [ASSQ]
- 0-15-0/.001
- Dial Setting Type [CPQX]
- Adjustable
- Functional Description [FTLD]
- Universal Shop Appl U/W Machine Tools
- Graduation Unit [ANBJ]
- 0.00100 Inches
- Measurement Capacity [CPWG]
- 0.030 Inches
- Mounting Style [ADER]

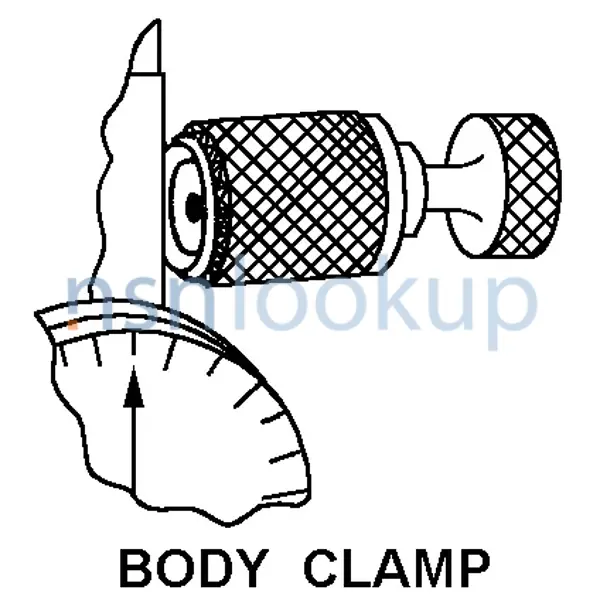

- Body Clamp
