5210-01-203-8661
Dial Indicator
5210012038661 012038661 80-144J 55893
A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING. View more Dial Indicator
May 2023
7
Marketplace 5210-01-203-8661
Request a Quotation from participating marketplace vendors
Related Documents 5210-01-203-8661 5+ Documents (More...)
/fsg-52/fsc-5210/us

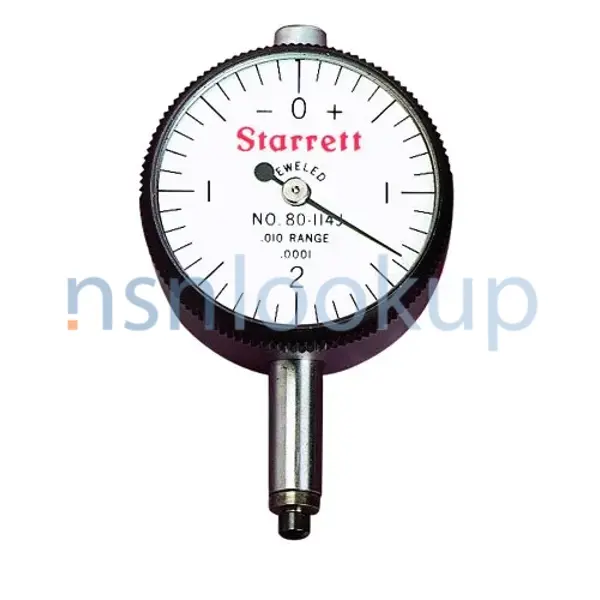

Photo 1/3 NSN 5210-01-203-8661 (Identification) 2/3 NSN 5210-01-203-8661 (Identification) 3/3 -
RQST NE Updated Every Day Search Global Test Supply 55893 RQST NE Updated Every Day 5210-01-203-8661
Bowl Spindle Assemb 4330995488606995488606 012038661 80-144J 55893 JavaScript in a day Upgrade your
Account Upgrade 5210-01-203-8661Dial Indicator5210012038661 012038661 80-144J 55893 /3 Catch Strike 5340013307975013307975
Bowl Spindle Assemb 4330995488606995488606 012038661 80-144J 55893 JavaScript in a day Upgrade your
Dial Indicator 5210012038661 012038661 $1 a day Upgrade your Account Upgrade 5210-01-203-8661Dial
a day Upgrade your Account Upgrade 5815-00-701-5488Plate5815007015488 007015488 SM-B-187235 644LX 55893
Dial Indicator 5210012038661 012038661 $1 a day Upgrade your Account Upgrade 5210-01-203-8661Dial
enable JavaScript in your web browser . 4330-99-548-8606Bowl Spindle Assemb4330995488606 995488606 55893
Dial Indicator 5210012038661 012038661 $1 a day Upgrade your Account Upgrade 5210-01-203-8661Dial
Restrictions 5210-01-203-8661
5210-01-203-8661 is a Dial Indicator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5210-01-203-8661
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5210-01-203-8661
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5210-01-203-8661
- Part Number
- Manufacturer
- Status
- 80-144J
- Manufacturer
- 64204 - L.S. Starrett Company, The (Active)
- Primary Buy
- Primary Buy
- 80-144J
- 57163 - L.S. Starrett Company (The) (Active)
- Secondary Buy
- Secondary Buy
- 55893
- 64204 - L.S. Starrett Company, The (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5210-01-203-8661
- Characteristic
- Specifications
- FIIG
- Specifications
- T299-Z
- Measurement Capacity [CPWG]
- 0.100 Inches
- Graduation Unit [ANBJ]
- 0.00100 Inches
- Dial Marking [ASSQ]
- 0-20-0
- Overall Diameter [ADAV]
- 1.266 Inches Nominal
- Dial Setting Type [CPQX]
- Adjustable
- Contact Point Location [CPQY]
- Stem
- Mounting Style [ADER]
- Post Type Lug
- Contact Point Action Type [CPQZ]
- Fixed
- Contact Point Style Designator [CPRB]
- Regular
- Point Length [AAUY]
- 0.094 Inches Nominal
- Point Diameter [AAVA]
- 0.125 Inches Nominal
- Cushioned Movement Feature [CPRC]
- Not Included
- Lifting Lever [CPRD]
- Not Included
- Tell-Tale Hand [CPMK]
- Not Included
Similar Supply Items to 5210-01-203-8661
Freight Information 5210-01-203-8661
5210-01-203-8661 has freight characteristics managed by the Netherlands.. 5210-01-203-8661 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
