5210-00-540-6517

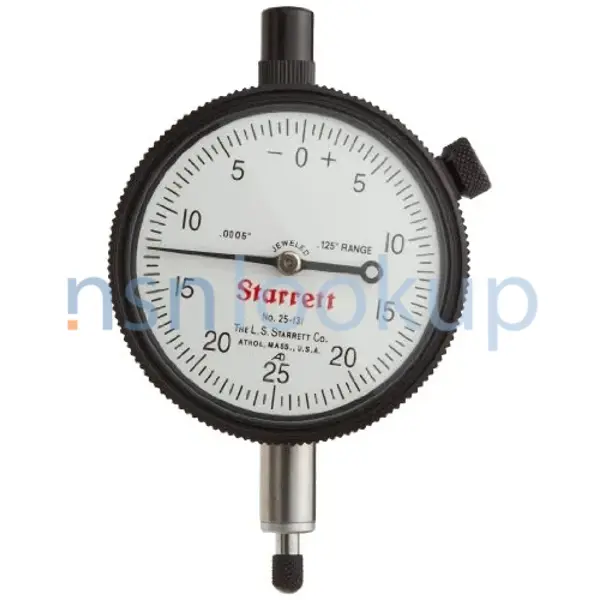

Dial Indicator
5210005406517 005406517 665JZ 56275 MIL-I-18422
A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING. View more Dial Indicator
May 2023
10
Marketplace 5210-00-540-6517
Request a Quotation from participating marketplace vendors
Related Documents 5210-00-540-6517 5+ Documents (More...)
Test Supply 56275 RQST NE Updated Every Day 5210-00-540-6517 RQST NE Updated Every Day 5210-00-540-6517
... ) https//www.nsnlookup.com /fsg-52/fsc-5210/us 5210-00-540-6517 Dial Indicator 5210005406517 005406517,665JZ
/fsg-52/fsc-5210/us
5210005406517 005406517,665JZ Dial Indicator 5210005415687005415687 003226346 TY2STA MIL-I-18422 A mechanism
for amplifying A-A-2348 TYBST3 196A 8039138 50090158 MIL-I- 18422 TY3STASZ2 MIL-I-18422 A mechanism
/fsg-52/fsc-5210/us
A mechanism for amplifying A-A-2348 TYBST3 196A 8039138 50090158 MIL-I- 18422 TY3STASZ2 MIL-I-18422
TY3STA MIL-I-18422 A mechanism for amplifying and measuring the displacement of a movable contact
Hole Attachment 5210007687799 TY3STASZ2 MIL-I-18422 A-A-2348 TYBST3 196A 8039138 50090158 MIL-I- 18422
TY3STASZ2 MIL-I-18422 Indicator 5210005552753005552753,A3Q TY3STASZ2 MIL-I-18422 A mechanism for amplifying
/fsg-52/fsc-5210/us
A mechanism for amplifying A-A-2348 TYBST3 196A 8039138 50090158 MIL-I-18422 TY3STASZ2 MIL-I-18422 A
A-A-2348 TYBST3 196A 8039138 50090158 MIL-I- 18422 TY3STASZ2 MIL-I-18422 A mechanism for amplifying
Restrictions 5210-00-540-6517
5210-00-540-6517 is a Dial Indicator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5210-00-540-6517
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5210-00-540-6517
- Brazil (YA01)
- Effective Date:
- 1 Sep 2000
Approved Sources 5210-00-540-6517
- Part Number
- Manufacturer
- Status
- 665JZ
- Manufacturer
- 57163 - L.S. Starrett Company (The) (Active)
- Primary Buy
- Primary Buy
- 56275
- 57163 - L.S. Starrett Company (The) (Active)
- Secondary Buy
- Secondary Buy
- MIL-I-18422
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5210-00-540-6517
- Characteristic
- Specifications
- FIIG
- Specifications
- T299-Z
- Measurement Capacity [CPWG]
- 0.125 Inches
- Graduation Unit [ANBJ]
- 0.00050 Inches
- Dial Marking [ASSQ]
- 0-25-0
- Overall Diameter [ADAV]
- 2.250 Inches Nominal
- Dial Setting Type [CPQX]
- Adjustable
- Contact Point Location [CPQY]
- Rim

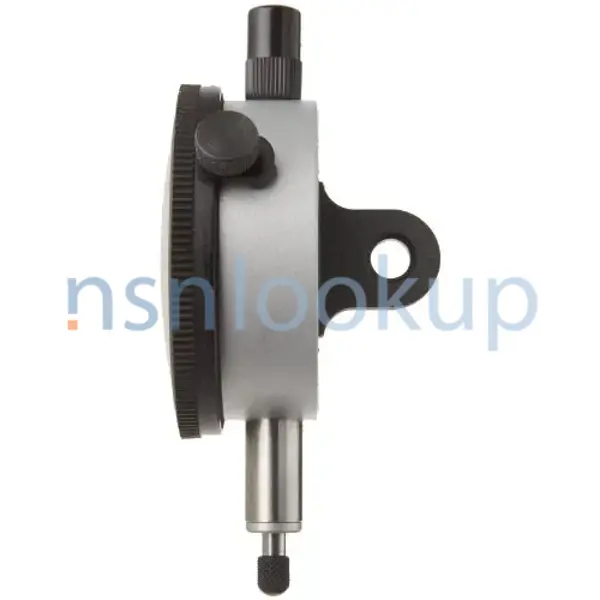

- Mounting Style [ADER]
- Lug On Center
- Contact Point Action Type [CPQZ]
- Plunger
- Contact Point Style Designator [CPRB]
- Regular
- Bearing Type [BYDT]
- Jewel
- Cushioned Movement Feature [CPRC]
- Not Included
- Lifting Lever [CPRD]
- Not Included
- Tell-Tale Hand [CPMK]
- Not Included

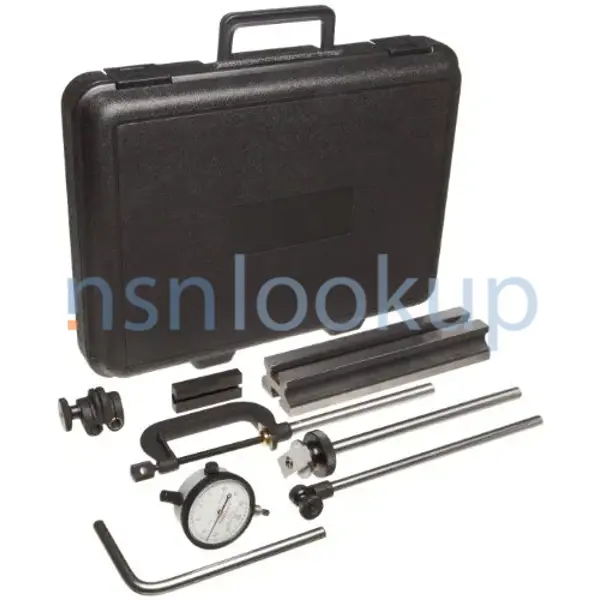

- Accessory Components And Quantity [AKYD]
- Base,665A,52783;Upright Base Post,665B,52783;Horizontal Gage Holding Rod,665C,52755;Swival Post Snug,665D,52754;Clamp Attachment,665G,52792;Offset Arm,665G-1,52789;Tool Post Holder,665H,52790;Reducing Bushing,665L,52756
Similar Supply Items to 5210-00-540-6517
Freight Information 5210-00-540-6517
5210-00-540-6517 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 121570. A Sub NMFC of X. It has a NMFC Description of GAGES AIR LIQUID LEVEL PRESSURE. 5210-00-540-6517 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 61770 which rates the freight between FCL and LCL. 5210-00-540-6517 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72B for ocean manifesting and military sealift. 5210-00-540-6517 is not classified as a special type of cargo when transported by water. 5210-00-540-6517 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
