5210-00-347-2591

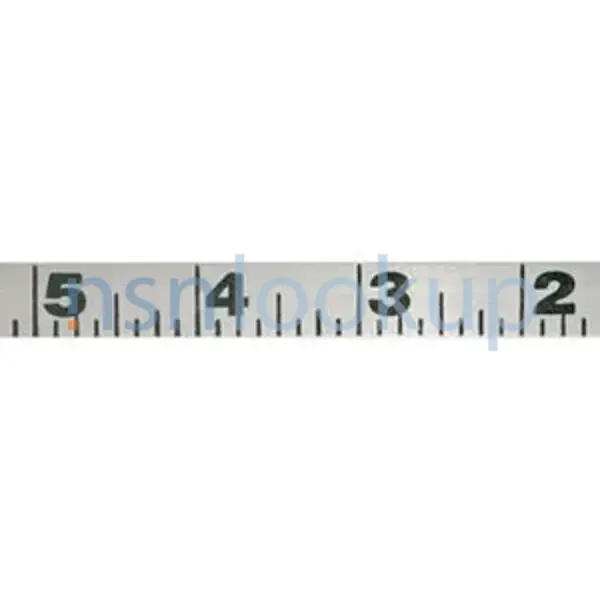

Replacement Measuring Tape
5210003472591 003472591 A-A-52216 58923 MIL-T-16644 137661 0CN1295SF590
A narrow strip of flexible material, graduated with markings to indicate a specific type of measure such as arithmetic, geometric, metric, or the like. To be used as a replacement for encased measuring tapes. View more Replacement Measuring Tape
May 2023
13
Marketplace 5210-00-347-2591
Request a Quotation from participating marketplace vendors
Related Documents 5210-00-347-2591 5+ Documents (More...)
TY1SZ2FN1 MIL-T-16644 A narrow A-A-52216 TY1SZ1 A-A-52216 TY1SZ1FN1 MIL-T-16644 A narrow strip of flexible
AA52216-1 590G /fsg-52/fsc-5210/us 5210-00-347-2591 Replacement Measuring Tape 5210003472591 Account
A-A-52216 TY1SZ2FN1 MIL-T-16644 Plumb Bob 5210005414338005414338MIL-T-16644 00-221-1885Measuring Tape5210002211885
https//www.nsnlookup.com /fsg-52/fsc-5210/us 5210-00-347-2591 Replacement Measuring Tape 5210003472591
/fsg-52/fsc-5210/us 5210-00-347-2591 Replacement Measuring Tape 5210003472591 Account Upgrade 5210-00
-347-2591Replacement Measuring Tape5210003472591 003472591 A-A-52216 58923 MIL-T-16644 A narrow strip
TY1SZ1 A-A-52216 TY1SZ1FN1 MIL-T-16644 A narrow strip of flexible material graduated with https//www.nsnlookup.com
TY1SZ1FN1 MIL-T-16644 A narrow strip of flexible material graduated with AA52216-1 A-A-52216 TY1SZ2FN1MIL-T
/fsg-52/fsc-5210/us
Replacement Measuring Tape 5210003472591 A-A-52216 TY1SZ1 A-A-52216 TY1SZ1FN1 MIL-T-16644 A narrow
TY1SZ2FN1 MIL-T-16644 A narrow strip of flexible material, graduated with markings to indicate A-A-52216
Restrictions 5210-00-347-2591
5210-00-347-2591 is a Replacement Measuring Tape that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5210-00-347-2591
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5210-00-347-2591
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTHD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5210-00-347-2591
- Part Number
- Manufacturer
- Status
- A-A-52216
- Manufacturer
- 58536 - Federal Commercial Item Description (Active)
- Incomplete Standard
- Incomplete Standard
- 58923
- 0MFD0 - U S Tape Co (Active)
- Secondary Buy
- Secondary Buy
- MIL-T-16644
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 137661
- 26741 - Mechanical Technology, Incorporated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 0CN1295SF590
- 37163 - Cooper Industries Inc Lufkin/Cooper (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5210-00-347-2591
- Characteristic
- Specifications
- FIIG
- Specifications
- T299-E
- Design Type [APGF]
- Tank Gaging
- Material [MATT]
- Steel
- Measuring Capacity [CMWL]
- 75 Feet
- Marking Type [CNJQ]
- Raised
- Rule Type Characteristic [CNJP]
- Included
- Special Features [FEAT]
- Graduated In.And Ft
- Width [ABGL]
- 0.500 Inches Nominal
- Tape Smallest Graduation Unit [CMWM]
- 1/8 In.
Management Data 5210-00-347-2591
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Navy
- Cognizance:
- 9Q
NATO Stock Numbers Related to 5210-00-347-2591
Freight Information 5210-00-347-2591
5210-00-347-2591 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186440. A Sub NMFC of X. It has a NMFC Description of TOOLS:TAPE MEASURES IN BXS. 5210-00-347-2591 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91000 which rates the freight between FCL and LCL. 5210-00-347-2591 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5210-00-347-2591 is not classified as a special type of cargo when transported by water. 5210-00-347-2591 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
