5210-00-233-5474
Thickness Gage Blade
5210002335474 002335474 599-9647-15 667-1 1/2 52838 GGG-G-17 TY8CL4STA GGG-G-17

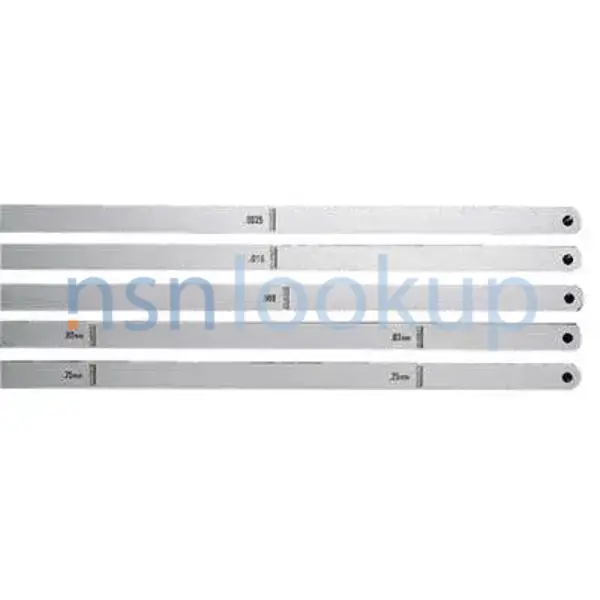

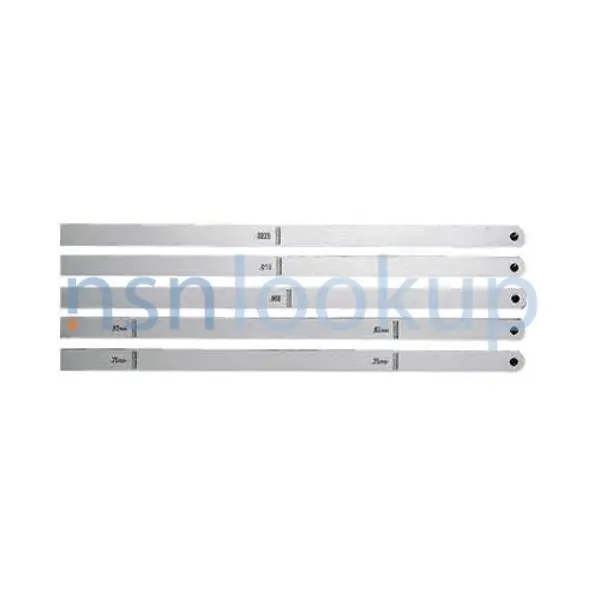

An item made of tempered steel, usually strip of leaf in shape, 12 inches (304.8 mm) or less in length, ground to and normally marked with its specific thickness. The blade may have a hole in one end, which allows for insertion in a thickness gage used either singly or with a readily attachable handle for checking or setting valve tappets, piston clearance, ring gear and pinion play, guided missile antenna radome and guided missile test stand cradle clearance, and the like. Excludes bulk thickness gage stock. View more Thickness Gage Blade
May 2023
12
Marketplace 5210-00-233-5474
Request a Quotation from participating marketplace vendors
Related Documents 5210-00-233-5474 5+ Documents (More...)
RQST NE Updated Every Day Search Global Test Supply 52838 RQST NE Updated Every Day 5210-00-233-5474
Starrett Company (The) (Active) Canceled/Obsolete RNCC 5 RNVC 9 DAC 4 GGG-G-17 TY8CL4STA 80244 -
Updated Every Day 5210-00 Starrett Company (The) (Active) Canceled/Obsolete RNCC 5 RNVC 9 DAC 4 GGG-G-17
Thickness Gage Blade 5210002335474 002335474 Upgrade 5210-00-233-5474Thickness Gage Blade5210002335474
/fsg-52/fsc-5210/us
two or more steel strips of Starrett Company (The) (Active) Canceled/Obsolete RNCC 5 RNVC 9 DAC 4 GGG-G-17
Thickness Gage Blade 5210002335474 002335474 Upgrade 5210-00-233-5474Thickness Gage Blade5210002335474
Thickness Gage Blade 5210002335474 002335474 Upgrade 5210-00-233-5474Thickness Gage Blade5210002335474
002335474 599-9647-15 667-1 1/2 52838 GGG-G-17 Starrett Company (The) (Active) Canceled/Obsolete RNCC
Gage Stock Set 5210001583906 GGG-G-17 TY8CL4STA FB6B0015THRU015 FB6A0015THRU015 A group of two or more
-17 Starrett Company (The) (Active) Canceled/Obsolete RNCC 5 RNVC 9 DAC 4 GGG-G-17 TY8CL4STA 80244 -
Restrictions 5210-00-233-5474
5210-00-233-5474 is a Thickness Gage Blade that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5210-00-233-5474
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5210-00-233-5474
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5210-00-233-5474
- Part Number
- Manufacturer
- Status
- 599-9647-15
- Manufacturer
- 09058 - Brown & Sharpe, Inc. (Active)
- Primary Buy
- Primary Buy
- 667-1 1/2
- 57163 - L.S. Starrett Company (The) (Active)
- Primary Buy
- Primary Buy
- 52838
- 57163 - L.S. Starrett Company (The) (Active)
- Secondary Buy
- Secondary Buy
- GGG-G-17 TY8CL4STA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-G-17
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5210-00-233-5474
- Characteristic
- Specifications
- FIIG
- Specifications
- T299-X
- Measurement System [BDLS]
- English
- Thickness [THKS]
- 0.0015 Inches
- Length [ABRY]
- 12.000 Inches Nominal
- Shape [SHPE]
- Straight
- Width [ABGL]
- 0.500 Inches Nominal
- End Hole [CPQQ]
- Not Included
- End Shape And Location [AXPT]
- Round Both Ends
- Holder [AETA]
- Not Included
NATO Stock Numbers Related to 5210-00-233-5474
Freight Information 5210-00-233-5474
5210-00-233-5474 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5210-00-233-5474 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5210-00-233-5474 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5210-00-233-5474 is not classified as a special type of cargo when transported by water. 5210-00-233-5474 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
