5136-01-431-6119

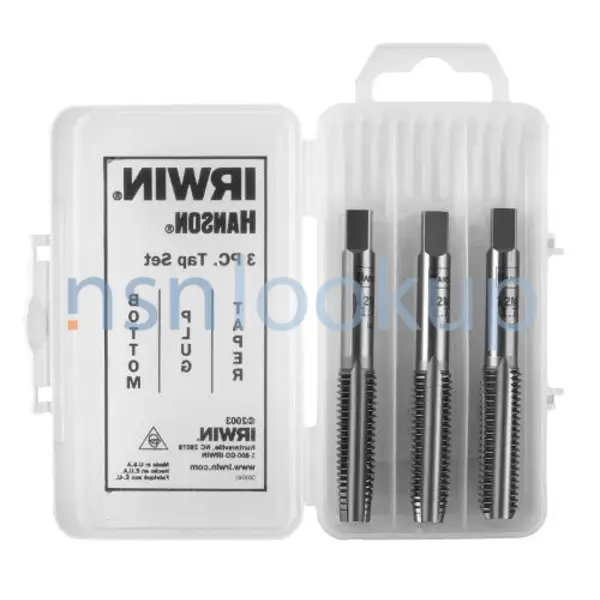

Thread Cutting Tap Set
5136014316119 014316119 2654
A group of TAP, THREAD CUTTING having different characteristics. It may include tap wrench(es) and counterboring tool(s). View more Thread Cutting Tap Set
May 2023
10
Marketplace 5136-01-431-6119
Request a Quotation from participating marketplace vendors
Related Documents 5136-01-431-6119 2+ Documents (More...)
Every Day 5136-01-431-6119 RQST Updated Every Day 5136-01-431-6119 RQST NE Related Documents 5136-01
Every Day 5136-01-431-6119 RQST Updated Every Day 5136-01-431-6119 RQST NE Restrictions 5136-01-431-
Restrictions 5136-01-431-6119
5136-01-431-6119 is a Thread Cutting Tap Set that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5136-01-431-6119
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5136-01-431-6119
- Spain (YB01)
- Effective Date:
- 1 May 2006
Approved Sources 5136-01-431-6119
- Part Number
- Manufacturer
- Status
- 2654
- Manufacturer
- 5M2Q1 - Irwin Industrial Tool Company (Obsolete)
- Original Design
- Original Design
- 2654
- 1JU00 - Irwin Industrial Tool Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5136-01-431-6119
- Characteristic
- Specifications
- FIIG
- Specifications
- T294-Q
- Tap Quantity [AWEM]
- 3
- Screw Thread Series Designator [AJYP]
- Unf
- Tap Material [BTWX]
- Steel
- Thread Direction [AAJF]
- Right-Hand
- Tap Characteristic [BTWY]
- Fractional Size 5/8-18 Nf; Cut Threads; 1 Ea Of Taper, Plug And Bottoming Styles
Similar Supply Items to 5136-01-431-6119
Freight Information 5136-01-431-6119
5136-01-431-6119 has freight characteristics.. 5136-01-431-6119 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
