5136-01-431-1922

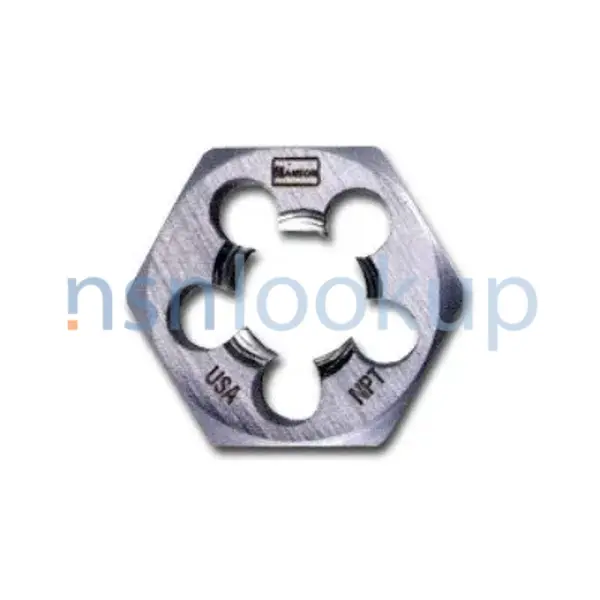

Thread Cutting Die
5136014311922 014311922 6711
A die of one or two or more piece construction designed to be held in a DIESTOCK, die holder, die head or collet, for cutting external threads. The one-piece type may be partially split for adjustment. Excludes DIE AND COLLET; DIE, RETHREADING and CHASER, THREAD, HAND. View more Thread Cutting Die
May 2023
9
Marketplace 5136-01-431-1922
Request a Quotation from participating marketplace vendors
Related Documents 5136-01-431-1922 2+ Documents (More...)
/fsg-51/fsc-5136/us 5136-01-431-1922 Thread Cutting Die 5136014311922014311922 Updated Every Day 5136
-01-431-1922 RQST NE Updated Every Day 5136-01-431-1922 RQST Updated Every Day 5136-01-431-1922 RQST
Restrictions 5136-01-431-1922
5136-01-431-1922 is a Thread Cutting Die that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5136-01-431-1922
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5136-01-431-1922
- US Army (A192)
- Effective Date:
- 1 Apr 2015
- Supplementary Receivers:
- AZ
- NASA (G751)
- Effective Date:
- 1 Apr 2015
Approved Sources 5136-01-431-1922
- Part Number
- Manufacturer
- Status
- 6711
- Manufacturer
- 5M2Q1 - Irwin Industrial Tool Company (Obsolete)
- Original Design
- Original Design
- 6711
- 1JU00 - Irwin Industrial Tool Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5136-01-431-1922
- Characteristic
- Specifications
- FIIG
- Specifications
- A13600
- Material And Location [ANNQ]
- Steel Overall
- Special Features [FEAT]
- Hexagon Shape
- Thread Size And Series/Type Designator [THDS]
- 0.125-28 Bsp.Tr Ext
- Width Across Flats [AAZK]
- 1.000 Inches Nominal
- Thread Direction [AAJF]
- Right-Hand
Management Data 5136-01-431-1922
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Dec 2021
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Feb 2020
- Department of the Army (DA)
- EA
- Subscribe
- EA
- Dec 2007
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- V
- Discontinued Without Replacement
- V
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5136-01-431-1922
Freight Information 5136-01-431-1922
5136-01-431-1922 has freight characteristics.. 5136-01-431-1922 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
