5136-01-337-8981
Thread Cutting Tap
5136013378981 013378981 11901
An internal threading tool with longitudinally separated cutting edges designed to form specific threads. View more Thread Cutting Tap
Managed by United States
NSN Created on 24 Apr 1991
Data Last Changed
January 2023
January 2023
NATO Update Count
2
2
NATO Data Quality
Marketplace 5136-01-337-8981
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Global Test Supply
11901 Stabila 11901 Pocket Level Pro Magnetic with holster STK NE $21.40 Distributor Buy Now
FedMall
Updated Every 15 Minutes
Updated Every 15 Minutes 5136-01-337-8981 BUY NE FedMall
Updated Every Day 5136-01-337-8981 RQST NE
Updated Every Day 5136-01-337-8981 RQST
Updated Every Day 5136-01-337-8981 RQST NE
Related Documents 5136-01-337-8981 5+ Documents (More...)
Day 5136-01-337-8981 RQST NE Updated Every Day 5136-01-337-8981 RQST Updated Every Day 5136-01-337-8981
Test Supply 11901 Stabila 11901 Day 5136-01-337-8981 RQST NE Updated Every Day 5136-01-337-8981 RQST
Stabila 11901 660782320,12-11901 12-11901 Managed by Australia NSN 11901 Stabila 11901 Stabila 11901
Test Supply 11901 Stabila 11901 Day 5136-01-337-8981 RQST NE Updated Every Day 5136-01-337-8981 RQST
Stabila 11901 660782320,12-11901 12-11901 Managed by Australia NSN 11901 Stabila 11901 Stabila 11901
how to enable JavaScript in your web browser . 5995-66-078-2320Cable Assy5995660782320 660782320 12-11901
https//www.nsnlookup.com /fsg-59/fsc-5995/au 5995-66-078-2320 Cable Assy 5995660782320 660782320,12-11901
https//www.nsnlookup.com /fsg-59/fsc-5995/au 5995-66-078-2320 Cable Assy 5995660782320 660782320,12-11901
https//www.nsnlookup.com /fsg-59/fsc-5995/au 5995-66-078-2320 Cable Assy 5995660782320 660782320,12-11901
https//www.nsnlookup.com /fsg-59/fsc-5995/au 5995-66-078-2320 Cable Assy 5995660782320 660782320,12-11901
vendors Section 123838569 Stabila 11901 vendors Section 123838569 Stabila 11901 vendors Request Global
Stabila 11901 Stabila 11901 Stabila 11901 RQST NE Updated Every Day 5935-14-505-8006 RQST https//www.nsnlookup.com
/fsg-51/fsc-5136/us 5136-01-337-8981 Thread Cutting Tap 5136013378981 013378981 Request a Quotation
Stabila 11901 Stabila 11901 Stabila 11901 RQST NE Updated Every Day 5935-14-505-8006 RQST https//www.nsnlookup.com
/fsg-51/fsc-5136/us 5136-01-337-8981 Thread Cutting Tap 5136013378981 013378981 Request a Quotation
Request a Quotation from participating marketplace vendors Request Global Test Supply 11901 Stabila 11901
Stabila 1190111901 Stabila ... 11901 Stabila 11901 Stabila 11901 Stabila 11901 Stabila 11901 RQST NE
Thread Cutting Tap 5136013378981 013378981 Request a Quotation from participating marketplace vendors
Stabila 1190111901 Stabila ... 11901 Stabila 11901 Stabila 11901 Stabila 11901 Stabila 11901 RQST NE
Thread Cutting Tap 5136013378981 013378981 Request a Quotation from participating marketplace vendors
11901 Stabila 11901 Stabila 11901 Stabila 11901 RQST NE Updated Every Day 5935-14-505-8006 RQST Supply
560-239951 42AA1586 X3XCLR201-11901 0821LR201-11901 W20L1STERSL2MG201-11901 A deformable material which
https//www.nsnlookup.com /fsg-51/fsc-5136/us 5136-01-337-8981 Thread Cutting Tap 5136013378981 013378981
560-239951 42AA1586 X3XCLR201-11901 0821LR201-11901 W20L1STERSL2MG201-11901 A deformable material which
https//www.nsnlookup.com /fsg-51/fsc-5136/us 5136-01-337-8981 Thread Cutting Tap 5136013378981 013378981
Restrictions 5136-01-337-8981
5136-01-337-8981 is a Thread Cutting Tap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5136-01-337-8981
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5136-01-337-8981
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
Approved Sources 5136-01-337-8981
- Part Number
- Manufacturer
- Status
- 11901
- Manufacturer
- 92061 - Bendix Corp The Industrial Tools Div (Active)
- Primary Buy
- Primary Buy

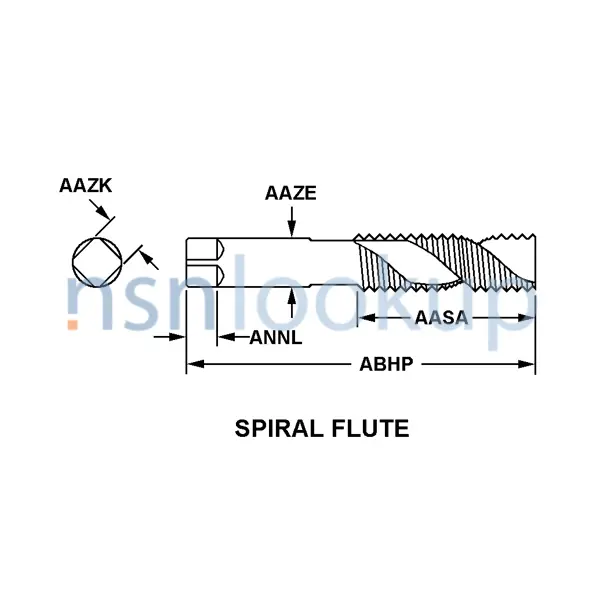

Datasheet 5136-01-337-8981
- Characteristic
- Specifications
- FIIG
- Specifications
- A13600
- Flute Quantity [ALAR]
- 3
- Material And Location [ANNQ]
- Steel, High Speed Overall
- Shank Diameter [AAZE]
- 0.255 Inches Nominal
- Overall Length [ABHP]
- 2.500 Inches Nominal
- Thread Size And Series/Type Designator [THDS]
- 0.250-28 Unf
- Thread Structure [ANMJ]
- Regular
- Width Across Flats [AAZK]
- 0.191 Inches Nominal
- Starting Chamfer Type [ANMP]
- Plug
- Square End Length [ANNL]
- 0.312 Inches Nominal
- Style Designator [STYL]
- Spiral Flute
- Thread Direction [AAJF]
- Right-Hand
- Thread Forming Method [ANMM]
- Cut
- Thread Length [AASA]
- 1.000 Inches Nominal
- Thread Pitch Diameters [AAJE]
- +0.2273/+0.2288 Inches
Management Data 5136-01-337-8981
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Army (DA)
- EA
- Subscribe
- EA
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5136-01-337-8981
Freight Information 5136-01-337-8981
5136-01-337-8981 has freight characteristics.. 5136-01-337-8981 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
