5136-01-151-1808
Thread Cleaning Tap
5136011511808 011511808 B94.9 2529A32
An item which conforms in appearance and design to a TAP, THREAD CUTTING, but is fabricated from material unsuitable for thread cutting. It is used exclusively for cleaning foreign material from internal threads. View more Thread Cleaning Tap
January 2023
4
Marketplace 5136-01-151-1808
Request a Quotation from participating marketplace vendors
Related Documents 5136-01-151-1808 5+ Documents (More...)
TAP,THREAD CLEANING RQST NS Request Quotation FedMall Updated Every 15 Minutes 5136-01-151-1808
BUY NE FedMall Updated Every Day 2529A32 RQST NE Updated Every Day 5136-01-151-1808 RQST NE Updated
Thread Cleaning Tap 5136011511808 011511808 000716905 112-9247 5136-12-314-5123 https//www.nsnlookup.com
/fsg-51/fsc-5136/us 5136-01-151-1808 https 006244982 314-5123 5136-22-610-3673 -01-147-5436 5136-01-
Thread Cleaning Tap 5136011511808 011511808 5136-01-151-1808 5136-27-043-6795 5136006244982 006244982
112-9247 5136-12-314-5123 610-3673 5136-01-147-5436 5136-01-151-1808 -27-043-6795 Cleaning Tap 5136000716905
/fsg-51/fsc-5136/tr 5136-27-043-6795 Thread Cleaning Tap 5136270436795270436795 -01-147-5436 5136-01-151-1808
27-043-6795 https 174-4485 5136-01-174-4489 https 314-5123 5136-22-610-3673 5136-01-147-5436 5136-01-151-1808
www.nsnlookup.com /fsg-51/fsc-5136/us 5136-01-174-4485 Thread Cleaning Tap 5136011744485011744485 5136-01-151-1808
5136-27-043-6795 5136-01-174-4485 112-9247 5136-12-314-5123 5136-22-610-3673 5136-01-147-5436 5136-01-151-1808
Restrictions 5136-01-151-1808
5136-01-151-1808 is a Thread Cleaning Tap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5136-01-151-1808
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5136-01-151-1808
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Jun 2004
Approved Sources 5136-01-151-1808
- Part Number
- Manufacturer
- Status
- B94.9
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- 2529A32
- 39428 - Mcmaster-Carr Supply Co (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5136-01-151-1808
- Characteristic
- Specifications
- FIIG
- Specifications
- A13600

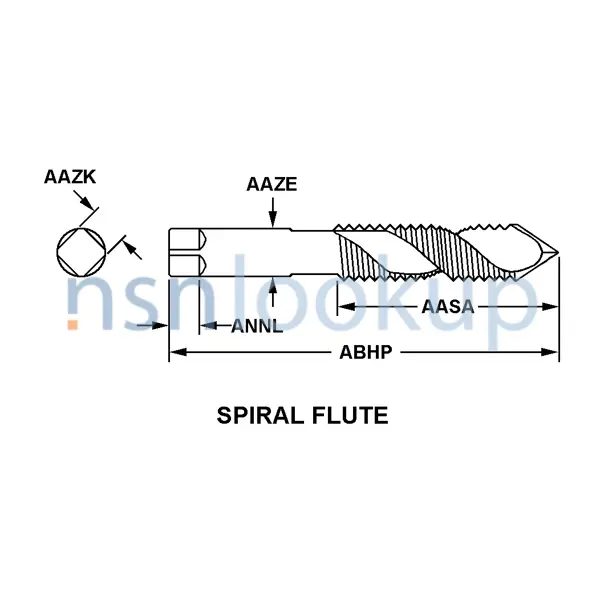

- Material And Location [ANNQ]
- Steel, High Speed Overall
- Shank Diameter [AAZE]
- 0.220 Inches Nominal
- Overall Length [ABHP]
- 2.375 Inches Nominal
- Special Features [FEAT]
- H3 Pitch Dia;Plug Type Limits And Chamfers;Numbers Of Flutes;3
- Width Across Flats [AAZK]
- 0.165 Inches Nominal
- Specification/Standard Data [ZZZK]
- 05047-Asme B94.9 Professional/Industrial Association Standard
- Square End Length [ANNL]
- 0.281 Inches Nominal
- Style Designator [STYL]
- Spiral Flute
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.500 Inches Nominal
- Thread Pitch Diameters [AAJE]
- +0.1707/+0.1712 Inches
- Thread Size And Series/Type Designator [THDS]
- 10.000-32 Unf
Management Data 5136-01-151-1808
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Navy (DN)
- EA
- Subscribe
- EA
Navy
- Cognizance:
- 9Q
NATO Stock Numbers Related to 5136-01-151-1808
Freight Information 5136-01-151-1808
5136-01-151-1808 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5136-01-151-1808 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5136-01-151-1808 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5136-01-151-1808 is not classified as a special type of cargo when transported by water. 5136-01-151-1808 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
