5136-00-580-7333

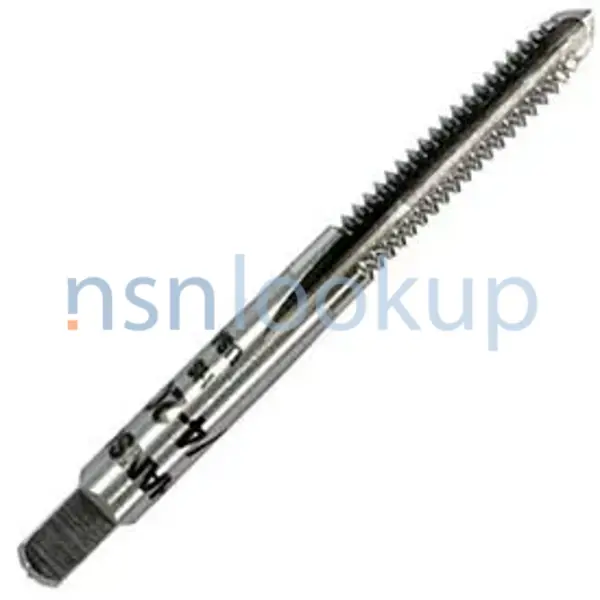

Thread Cutting Tap
5136005807333 005807333 B94.9 B94.9 5/16-18 UNC HS G H3 14092 C54504 11206 122075 12025 08379 GGG-T-70 TY1SEASTA 310315 GGG-T-70 A-A-625
An internal threading tool with longitudinally separated cutting edges designed to form specific threads. View more Thread Cutting Tap
Managed by United States
NSN Created on 1 Jan 1961
Data Last Changed
November 2023
November 2023
NATO Update Count
40
40
NATO Data Quality
Marketplace 5136-00-580-7333
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes 5136-00-580-7333 BUY NE
Updated Every Day 5136-00-580-7333 RQST NE
Updated Every Day 5136-00-580-7333 RQST
Updated Every Day 5136-00-580-7333 RQST NE
Related Documents 5136-00-580-7333 5+ Documents (More...)
B94.9 B94.9 5/16-18 UNC HS G H3 14092 C54504 11206 122075 12025 08379 GGG-T-70 TY1SEASTA 310315 GGG-T
NE Updated Every Day 5136-00-580-7333 RQST Updated Every Day 5136-00 TY1SEBSTC A-A-624 GGG-T-70 An internal
A-A-625GGG-T-70 TY1SEASTA An internal threading tool with longitudinally A-A-625GGG-T-70 TY1SEASTA GGG-T-70
NE Updated Every Day 5136-00-580-7333 RQST Updated Every Day 5136-00 TY1SEBSTC A-A-624 GGG-T-70 An internal
A-A-625GGG-T-70 TY1SEASTA An internal threading tool with longitudinally A-A-625GGG-T-70 TY1SEASTA GGG-T-70
JavaScript in your web browser . 2910-14-398-7510Carburetor Nozzle2910143987510 143987510 5000044121 310315
/www.nsnlookup.com /fsg-51/fsc-5136/us 5136-01-431-6134 Thread Cutting Tap 5136014316134014316134 310315
for $1 a day Upgrade your Account Upgrade 4935-01-184-8536Emitter Assembly4935011848536 011848536 310315
/www.nsnlookup.com /fsg-51/fsc-5136/us 5136-01-431-6134 Thread Cutting Tap 5136014316134014316134 310315
for $1 a day Upgrade your Account Upgrade 4935-01-184-8536Emitter Assembly4935011848536 011848536 310315
for $1 a day Upgrade your Account Upgrade 5136-01-431-6134Thread Cutting Tap5136014316134 014316134 310315
/www.nsnlookup.com /fsg-51/fsc-5136/us 5136-01-431-6134 Thread Cutting Tap 5136014316134014316134 310315
for $1 a day Upgrade your Account Upgrade 4935-01-184-8536Emitter Assembly4935011848536 011848536 310315
/www.nsnlookup.com /fsg-51/fsc-5136/us 5136-01-431-6134 Thread Cutting Tap 5136014316134014316134 310315
for $1 a day Upgrade your Account Upgrade 4935-01-184-8536Emitter Assembly4935011848536 011848536 310315
enable JavaScript in your web browser . 5340-14-212-1702Manual Control Handle5340142121702 142121702 122075
to enable JavaScript in your web browser . 4710-15-156-7559Metallic Tube4710151567559 151567559 0-122075
1PA39630-122075 A straight, hollow product, welded or seamless, of round, square, or any other cross
to enable JavaScript in your web browser . 4710-15-156-7559Metallic Tube4710151567559 151567559 0-122075
1PA39630-122075 A straight, hollow product, welded or seamless, of round, square, or any other cross
to enable JavaScript in your web browser . 4710-15-156-7559Metallic Tube4710151567559 151567559 0-122075
1PA39630-122075 A straight, hollow product, welded or seamless, of round, square, or any other cross
Thread Cutting Tap 5136005807333 005807333 142121702 122075 to enable JavaScript in your web browser
1PA39630-122075 A straight, hollow product, welded or seamless, of round, square, or any other cross
Thread Cutting Tap 5136005807333 005807333 142121702 122075 to enable JavaScript in your web browser
Restrictions 5136-00-580-7333
5136-00-580-7333 is a Thread Cutting Tap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5136-00-580-7333
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5136-00-580-7333
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AZCTBF
- MOE Rule:
- B031
- Effective Date:
- 1 Apr 1991
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G161)
- Effective Date:
- 1 Apr 1991
- NASA (G181)
- Effective Date:
- 1 Apr 1991
- NASA (G721)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G761)
- Effective Date:
- 1 Apr 1991
- NASA (G771)
- Effective Date:
- 1 Apr 1991
- NASA (G861)
- Effective Date:
- 1 Apr 1991
- NASA (G881)
- Effective Date:
- 1 Apr 1991
- NASA (G931)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- NIQG
- Supplementary Collaborators:
- GTKEHXHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Poland (WP01)
- Effective Date:
- 1 May 2005
- Brazil (YA01)
- Effective Date:
- 1 Sep 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Jun 1996
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5136-00-580-7333
- Part Number
- Manufacturer
- Status
- B94.9
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- 310315
- 78525 - Stanley Tools Div Of Stanley Works (Active)
- Primary Buy
- Primary Buy
- B94.9 5/16-18 UNC HS G H3
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 14092
- 60NQ9 - Greenfield Industries Inc (Active)
- Secondary Buy
- Secondary Buy
- C54504
- 60NQ9 - Greenfield Industries Inc (Active)
- Secondary Buy
- Secondary Buy
- 11206
- 0FNZ7 - Osg Usa Inc (Active)
- Secondary Buy
- Secondary Buy
- 122075
- 56922 - Jarvis Cutting Tools Inc (Active)
- Secondary Buy
- Secondary Buy
- 12025
- 92061 - Bendix Corp The Industrial Tools Div (Active)
- Secondary Buy
- Secondary Buy
- 08379
- 9Z213 - Regal-Beloit Corporation (Active)
- Secondary Buy
- Secondary Buy
- GGG-T-70 TY1SEASTA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 310315
- 1JU00 - Irwin Industrial Tool Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 310315
- 5M2Q1 - Irwin Industrial Tool Company (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-T-70
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- C54504
- 1NEX4 - Kennametal Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A-A-625
- 58536 - Federal Commercial Item Description (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 14092
- 1NEX4 - Kennametal Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5136-00-580-7333
- Characteristic
- Specifications
- FIIG
- Specifications
- A13600
- Flute Quantity [ALAR]
- 4
- Material And Location [ANNQ]
- Steel, High Speed Overall
- Shank Diameter [AAZE]
- 0.318 Inches Nominal
- Overall Length [ABHP]
- 2.719 Inches Nominal
- Width Across Flats [AAZK]
- 0.238 Inches Nominal
- Specification/Standard Data [ZZZK]
- 05047-Asme B94.9 Professional/Industrial Association Standard
- Square End Length [ANNL]
- 0.375 Inches Nominal
- Starting Chamfer Type [ANMP]
- Taper
- Style Designator [STYL]
- Straight Flute
- Thread Direction [AAJF]
- Right-Hand
- Thread Forming Method [ANMM]
- Ground
- Thread Length [AASA]
- 1.125 Inches Nominal
- Thread Pitch Diameters [AAJE]
- +0.2774/+0.2779 Inches
- Thread Structure [ANMJ]
- Regular
- Thread Size And Series/Type Designator [THDS]
- 0.312-18 Unc
DLA Procurement Analysis 5136-00-580-7333
Management Data 5136-00-580-7333
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2023
- US Marine Corps (DM)
- EA
- Subscribe
- EA
- Jul 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5136-00-203-4359
- 0
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5136-00-221-7903
- 4
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5136-00-580-7333
Freight Information 5136-00-580-7333
5136-00-580-7333 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5136-00-580-7333 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5136-00-580-7333 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5136-00-580-7333 is not classified as a special type of cargo when transported by water. 5136-00-580-7333 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
