5136-00-580-7175

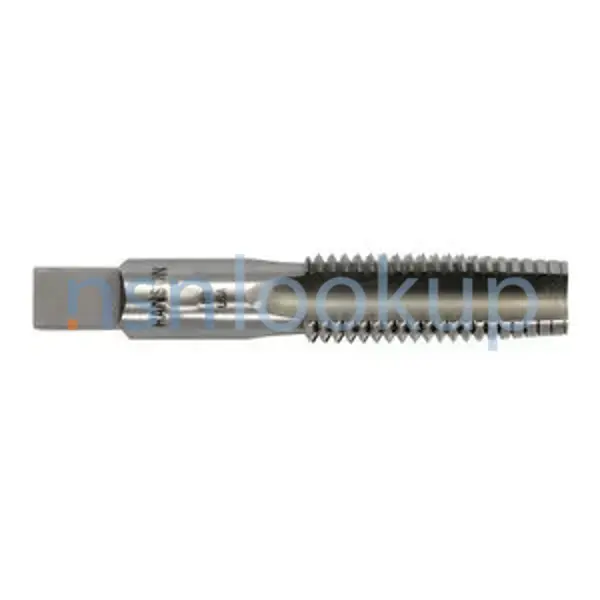

Thread Cutting Tap
5136005807175 005807175 B94.9 B94.9 7/8-14 UNF HS G H4 125787 13180 08623 11357 GGG-T-70 310434 14516 C54890 A-A-625 GGG-T-70 TY1SEBSTA
An internal threading tool with longitudinally separated cutting edges designed to form specific threads. View more Thread Cutting Tap
