5136-00-528-2299

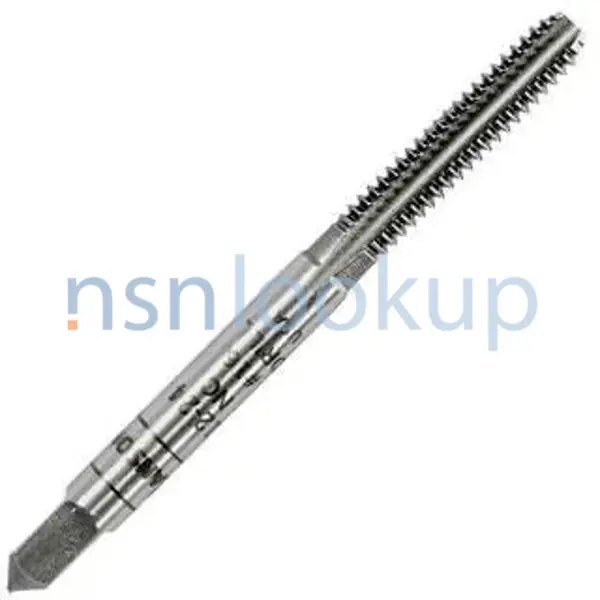

Thread Cutting Tap
5136005282299 005282299 B94.9 B94.9 5/8-11 UNC FRS T121 17203 T121 GGG-T-60 TY1SEAST3 C62317 1040 103 5/8-11 UNC 1552 GGG-T-60 303 5/8-11 UNC
An internal threading tool with longitudinally separated cutting edges designed to form specific threads. View more Thread Cutting Tap
November 2023
24
Marketplace 5136-00-528-2299
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5136-00-528-2299 5+ Documents (More...)
Every Day FRS T121 RQST NE Updated Every Day T121 RQST NE Updated Every Day 5136-00-528-2299 RQST NE
Day FRS T121 RQST NE Updated Every Day T121 RQST NE Updated Every Day 5136-00-528-2299 RQST NE https
Account Upgrade 5136-00-528-2299Thread Cutting Tap5136005282299 005282299 B94.9 B94.9 5/8-11 UNC CUTTING
Thread Cutting Tap 5136005282299 005282299 Upgrade your Account Upgrade 5136-00-528-2299Thread
Documents 1005-15-202-7018 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5136/us 5136-00-528-2299
Thread Cutting Tap 5136005282299 005282299 Cutting Tap5136005282299 005282299 B94.9 B94.9 5/8-11
RQST NE Related Documents 5136-01 Sources Datasheet Management BUY NE FedMall Updated Every Day FRS T121
005282299 B94.9 B94.9 5/8-11 UNC FRS T121 CUTTING 99 EA NS Request Quotation 1040 TAP,THREAD CUTTING
17195 GGG-T-60 5136-00-528-2299 Thread Cutting Tap 5136005282299 005282299 B94.9 5/8-11 UNC FRS T121
17203 T121 GGG-T-60 C62325 GGG-T-60 TY1SEAST3 303 3/4-10 UNC 1040 An internal threading GGG-T-60 TAP
Restrictions 5136-00-528-2299
5136-00-528-2299 is a Thread Cutting Tap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5136-00-528-2299
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5136-00-528-2299
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- BD
- NASA (G161)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2014
- Supplementary Collaborators:
- GG
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5136-00-528-2299
- Part Number
- Manufacturer
- Status
- B94.9
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- 1552
- 78525 - Stanley Tools Div Of Stanley Works (Active)
- Primary Buy
- Primary Buy
- FRS T121
- 55719 - Idsc Holdings Llc (Active)
- Primary Buy
- Primary Buy
- B94.9 5/8-11 UNC
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 17203
- 92061 - Bendix Corp The Industrial Tools Div (Active)
- Secondary Buy
- Secondary Buy
- T121
- 55719 - Idsc Holdings Llc (Active)
- Secondary Buy
- Secondary Buy
- GGG-T-60 TY1SEAST3
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- C62317
- 1NEX4 - Kennametal Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1040
- 41672 - Morse Cutting Tools Div Of Morse (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 103 5/8-11 UNC
- 13130 - Cleveland Twist Drill Co Div Of (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 1552
- 5M2Q1 - Irwin Industrial Tool Company (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-T-60
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1552
- 1JU00 - Irwin Industrial Tool Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 303 5/8-11 UNC
- 1NEX4 - Kennametal Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5136-00-528-2299
- Characteristic
- Specifications
- FIIG
- Specifications
- A13600
- Flute Quantity [ALAR]
- 4
- Material And Location [ANNQ]
- Steel Overall
- Shank Diameter [AAZE]
- 0.480 Inches Nominal
- Overall Length [ABHP]
- 3.812 Inches Nominal
- Width Across Flats [AAZK]
- 0.360 Inches Nominal
- Specification/Standard Data [ZZZK]
- 05047-Asme B94.9 Professional/Industrial Association Standard
- Square End Length [ANNL]
- 0.562 Inches Nominal
- Starting Chamfer Type [ANMP]
- Bottoming
- Style Designator [STYL]
- Straight Flute
- Thread Direction [AAJF]
- Right-Hand
- Thread Forming Method [ANMM]
- Cut
- Thread Length [AASA]
- 1.812 Inches Nominal
- Thread Pitch Diameters [AAJE]
- +0.5665/+0.5690 Inches
- Thread Structure [ANMJ]
- Regular
- Thread Size And Series/Type Designator [THDS]
- 0.625-11 Unc
Management Data 5136-00-528-2299
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5136-00-186-6653
- 4
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5136-00-528-2299
Freight Information 5136-00-528-2299
5136-00-528-2299 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5136-00-528-2299 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5136-00-528-2299 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5136-00-528-2299 is not classified as a special type of cargo when transported by water. 5136-00-528-2299 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
