5133-01-597-6006

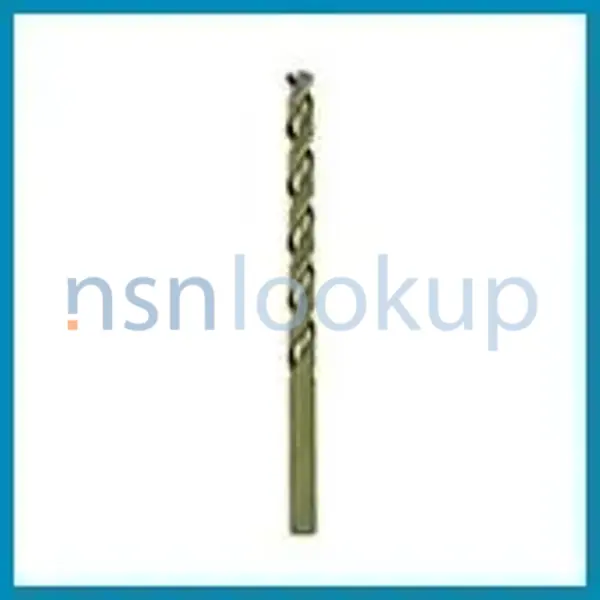

Twist Drill
5133015976006 015976006 12169
An end cutting tool having two or more cutting edges, and having helical flutes or grooves adjacent thereto for the admission of coolant and the ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified); and DRILL,TWIST, BONE. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED. View more Twist Drill
May 2023
7
Marketplace 5133-01-597-6006
Request a Quotation from participating marketplace vendors
Related Documents 5133-01-597-6006 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5133-01-597-6006 RQST NE Updated Every Day 5133-01-597-6006 RQST
Updated Every Day 5133-01-597-6006 RQST NE Related Documents 5133-01-597-6006 5+ Documents ( More...
Twist Drill 5133015976006 015976006,12169 Electrical Conduit Bushing 5975123215160 Upgrade your
Account Upgrade 5975-12-321-5160Electrical Conduit Bushing5975123215160 123215160167-12169 Twist Drill
Twist Drill 5133015976006 015976006,12169 https//www.nsnlookup.com /fsg-76/fsc-7660/uk 7660-99-
262-1505 Book 7660992621505 992621505,12169,00- 12169 instructions how to enable JavaScript in your web
Upgrade your Account Upgrade 5975-12-321-5160Electrical Conduit Bushing5975123215160 123215160 167-12169
Upgrade your Account Upgrade 5975-12-321-5160Electrical Conduit Bushing5975123215160 123215160167-12169
Restrictions 5133-01-597-6006
5133-01-597-6006 is a Twist Drill that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5133-01-597-6006
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5133-01-597-6006
- NASA (G751)
- Effective Date:
- 1 Jun 2011
- US Marine Corps (MC14)
- Effective Date:
- 1 Jun 2011
Approved Sources 5133-01-597-6006
- Part Number
- Manufacturer
- Status
- 12169
- Manufacturer
- 11195 - Magna Div Vermont American Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 5133-01-597-6006
- Characteristic
- Specifications
- FIIG
- Specifications
- A188A0
- Cutting End Style [AKZH]
- General Purpose
- Cutting Rotation Direction [AKZV]
- Right-Hand
- Flute Length [ALAA]
- 3.000 Inches Nominal
- Flute Quantity [ALAR]
- 2
- Material [MATT]
- Steel, High Speed Overall
- Nominal Cutting Diameter [AKZL]
- 0.2969 Inches
- Point Type [BBDT]
- Split
- Point Angle [CSKR]
- 135.0 Degrees Nominal
- Shank Diameter [AAZE]
- 0.296 Inches Nominal
- Shank Style [AAZF]
- Straight Round
- Overall Length [ABHP]
- 4.375 Inches Nominal
- Special Features [FEAT]
- Fractional Size 19/64; For Use On Wood, Plastic And Metal
- Surface Treatment [SFTT]
- Gold Oxide Overall
Management Data 5133-01-597-6006
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- US Marine Corps (DM)
- EA
- Subscribe
- EA
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 6
- Critical Repair Part to a Non-Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5133-01-597-6006
Freight Information 5133-01-597-6006
5133-01-597-6006 has freight characteristics.. 5133-01-597-6006 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
