5133-01-588-1792

Rotary Driven Masonry Drill

5133015881792 015881792 B212.15 B212.15 FMD 4 IRW 326006 55232748 W2506 326006

A rotary type drilling tool having inserted carbide cutter(s) fixed to one end with a straight round shank or a taper round shank, primarily designed for use in DRILL, ELECTRIC, PORTABLE or DRILL, PNEUMATIC, PORTABLE. View more Rotary Driven Masonry Drill

Managed by United States

NSN Created on 6 Sep 2010

Data Last Changed
May 2023

NATO Update Count
12

NATO Data Quality

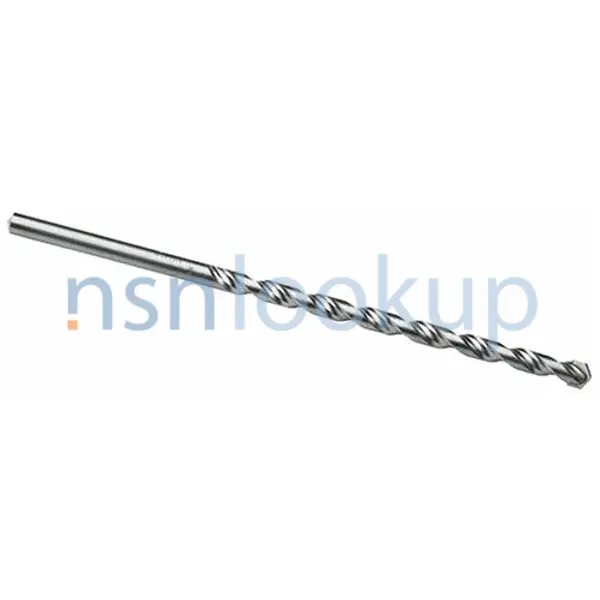

5133-01-588-1792 DRILL,MASONRY,ROTARY DRIVEN 5133015881792 015881792 1/6 — 5133-01-588-1792 Photo 1/6

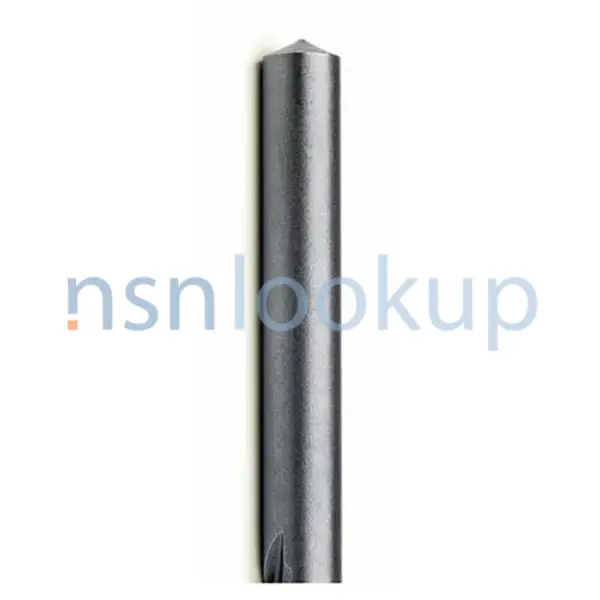

5133-01-588-1792 DRILL,MASONRY,ROTARY DRIVEN 5133015881792 015881792 2/6 — 5133-01-588-1792 Photo 2/6

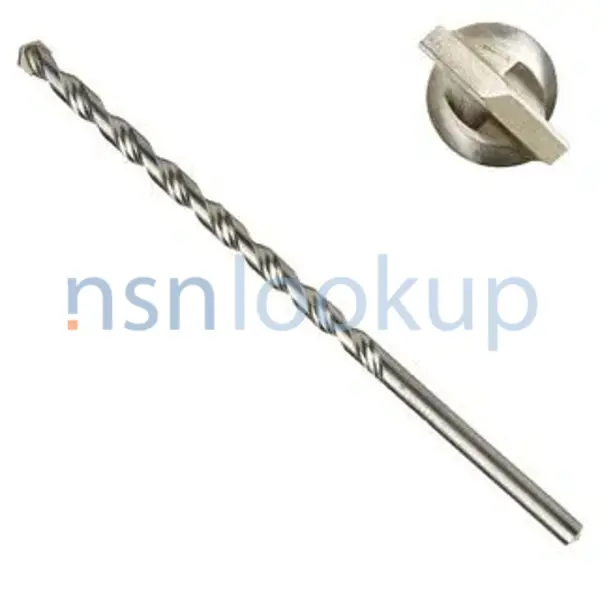

5133-01-588-1792 DRILL,MASONRY,ROTARY DRIVEN 5133015881792 015881792 3/6 — 5133-01-588-1792 Photo 3/6

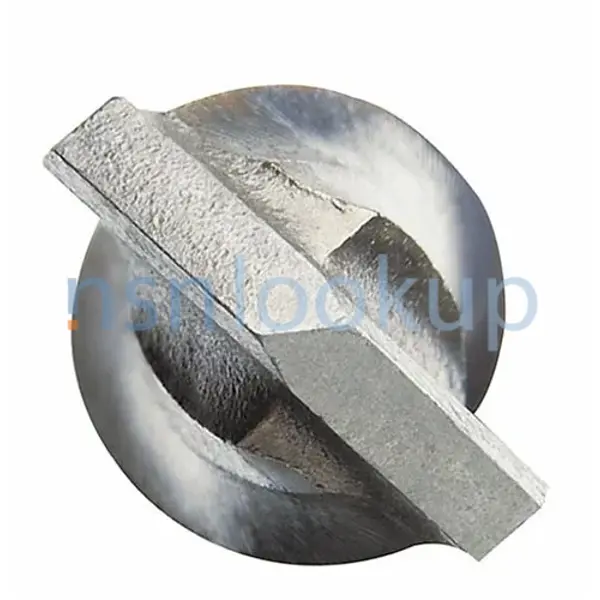

5133-01-588-1792 DRILL,MASONRY,ROTARY DRIVEN 5133015881792 015881792 4/6 — 5133-01-588-1792 Photo 4/6

AAZF Style 76 for 5133-01-588-1792 5/6 — NSN 5133-01-588-1792 (Identification) 5/6

AKZH Style 58 for 5133-01-588-1792 6/6 — NSN 5133-01-588-1792 (Identification) 6/6

Marketplace 5133-01-588-1792

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

5133-01-588-1792 DRILL,MASONRY,ROTARY DRIVEN RQST NS

FedMall

Updated Every 15 Minutes

5133-01-588-1792 BUY NE FedMall

Updated Every Day

5133-01-588-1792 RQST NE

Updated Every Day

5133-01-588-1792 RQST

Updated Every Day

5133-01-588-1792 RQST NE

Related Documents 5133-01-588-1792 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-51/fsc-5133/us

5133-01-588-1792 Rotary Driven Masonry Drill 5133015881792

B212.15 B212.15 FMD 4 IRW 326006 55232748 W2506 326006 A rotary type drilling tool having inserted carbide
) https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133-01-588-1792 Rotary Driven Masonry Drill 5133015881792
/fsg-51/fsc-5133/us 5133-01-588-1792 Rotary Driven Masonry Drill 5133015881792 https//www.nsnlookup.com

https//www.nsnlookup.com
/fsg-10/fsc-1005/uk

1005-99-154-2662 Extractor 1005991542662 991542662

588-1792Rotary Driven Masonry Drill5133015881792 015881792 B212.15 B212.15 FMD 4 IRW 326006 55232748
W2506 588-1792Rotary Driven Masonry Drill5133015881792 015881792 B212.15 B212.15 FMD 4 IRW 326006 55232748
588-1792Rotary Driven Masonry Drill5133015881792 015881792 B212.15 B212.15 FMD 4 IRW 326006 55232748

https//www.nsnlookup.com
/fsg-76/fsc-7690/us

7690-01-697-1610 Label 7690016971610 016971610,326006

- Upgrade for $1 a day Upgrade your Account Upgrade 7690-01-697-1610Label7690016971610 016971610 326006
326006 https//www.nsnlookup.com /fsg-51/fsc-5120/it 5120-15 https//www.nsnlookup.com /fsg-59/fsc-5910
/us 5910-01-571-1521 Plastic Dielectric Fixed Capacitor 015711521 55232748 W2506 326006 A rotary type

https//www.nsnlookup.com
/fsg-51/fsc-5120/it

5120-15-143-4267 Giravite A Taglio C 5120151434267 151434267

5120-15-143-4267Giravite A Taglio C5120151434267 151434267 326-0,5X3X100 326-0-5X3X100 326-0E5X3X100 326006
W2506 https//www.nsnlookup.com /fsg-59/fsc 55232748 W2506 4267Giravite A Taglio C5120151434267 151434267326
015881792 B212.15 B212.15 FMD 4 IRW 326006 55232748 W2506 326006 A rotary type drilling tool having

https//www.nsnlookup.com
/fsg-59/fsc-5945/de

5945-12-323-2438 Electrical Solenoid 5945123232438 123232438

2438Electrical Solenoid5945123232438 123232438 R900010611 R900326006 GP 45-A2-A M.P. 5,4 OHM SO 010611 326006
5120-15-143-4267Giravite A Taglio C5120151434267 151434267 326-0,5X3X100 326-0-5X3X100 326-0E5X3X100 326006
Rotary Driven Masonry Drill 5133015881792 Upgrade 5133-01-588-1792Rotary Driven Masonry Drill5133015881792

Restrictions 5133-01-588-1792

5133-01-588-1792 is a Rotary Driven Masonry Drill that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5133-01-588-1792

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5133-01-588-1792

US Army (A192)
Effective Date:: 1 Dec 2010
Supplementary Receivers:: BF; AMC 0 AMSC 0 IMC Z IMCACTY CD

NASA (G751)
Effective Date:: 1 Sep 2010; AMC 0 AMSC 0

US Marine Corps (MC14)
Effective Date:: 1 Mar 2011; AMC 0 AMSC 0 IMC Z IMCACTY PA

US Navy (N9QG)
Effective Date:: 1 Jul 2011
Supplementary Collaborators:: HD; AMC 0 AMSC 0 IMC Z IMCACTY HD

Approved Sources 5133-01-588-1792

Part Number
Manufacturer
Status
B212.15: 80204 - American National Standards (Active); Incomplete Reference; RNCC 3 RNVC 1 DAC 4
326006: 78525 - Stanley Tools Div Of Stanley Works (Active); Primary Buy; RNCC 3 RNVC 2 DAC 4
B212.15 FMD 4: 80244 - General Services Administration (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
IRW 326006: 00NS2 - Kipper Tool Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
55232748: 4J007 - Msc Industrial Direct Co., Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
W2506: 33287 - Bosch Automotive Service Solutions (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
W2506: 20624 - Tru-Cut, Inc. (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
326006: 5M2Q1 - Irwin Industrial Tool Company (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
326006: 1JU00 - Irwin Industrial Tool Company (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4

Datasheet 5133-01-588-1792

Characteristic
Specifications
FIIG: A188A0
Cutting End Style [AKZH]: Slow Helix Single Bit Coreless Masonry
Flute Length [ALAA]: 4.000 Inches Nominal
Hardness Rating [CQFM]: 53.0 Rockwell C Nominal
Nominal Cutting Diameter [AKZL]: 0.2500 Inches
Nondefinitive Spec/Std Data [ZZZT]: Fmd4 Designator
Material [MATT]: Carbide Tip
Material [MATT]: Steel Shank
Shank Diameter [AAZE]: 0.250 Inches Nominal
Shank Style [AAZF]: Straight Round
Overall Length [ABHP]: 6.000 Inches Nominal
Specification/Standard Data [ZZZK]: 80204-Ansi B212.15 Professional/Industrial Association Standard

Management Data 5133-01-588-1792

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2021: Department of the Navy (DN); EA; Subscribe
Apr 2020: US Marine Corps (DM); EA; Subscribe
Feb 2020: Department of the Navy (DN); EA; Subscribe

Army

Materiel Category and Inventory Manager:

E: General Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9Q

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

02

Operational Test:

: No Special Procedures

Similar Supply Items to 5133-01-588-1792

Freight Information 5133-01-588-1792

5133-01-588-1792 has freight characteristics.. 5133-01-588-1792 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
