5133-01-204-1780
Auger Bit
5133012041780 012041780 48311 41H24 11/16 (5/8 IN. HEX)
A manual or power driven boring tool with a double twist solid center or a single twist hollow or solid center body of one nominal diameter. It is formed into a cutter head at one end, and a shank at the other end. The double twist body type must have either a screw point or a brad point. Excludes BIT, PLUG; and BIT, EXPANSIVE. See also BIT, HOLLOW CHISEL. View more Auger Bit
May 2023
10
Marketplace 5133-01-204-1780
Request a Quotation from participating marketplace vendors
Related Documents 5133-01-204-1780 5+ Documents (More...)

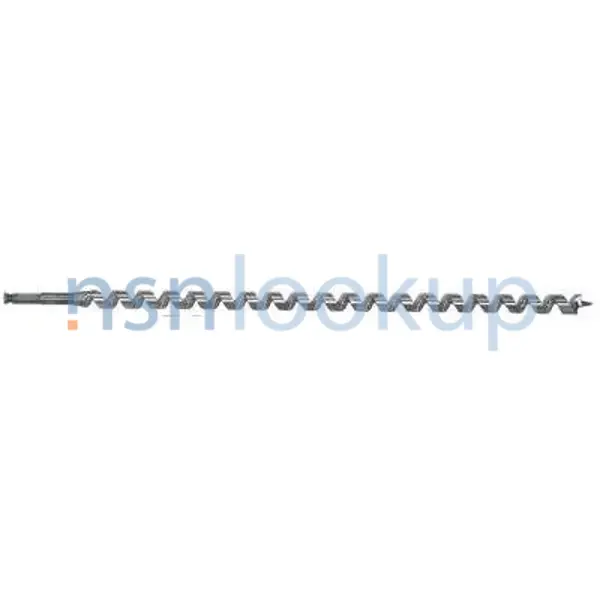

Photo 1/3 NSN 5133-01-204-1780 (Identification) 2/3 NSN 5133-01-204-1780 (Identification) 3/3 -
5133-01-204-1780 RQST Updated Every Day 5133-01-204-1780 RQST NE Related Documents 5133-01-204-1780
enable JavaScript in your web browser . 6625-01-195 -1940Computer Test Set6625011951940 011951940 48311
enable JavaScript in your web browser . 6625-01-195 -1940Computer Test Set6625011951940 011951940 48311
enable JavaScript in your web browser . 6625-01-195 -1940Computer Test Set6625011951940 011951940 48311
/www.nsnlookup.com /fsg-47/fsc-4710/us 4710-01-063-6328 Metal Tube Assembly 4710010636328010636328 48311
RQST Updated Every /fsg-59/fsc-5930/fr 5930-14-276-4000 Foot Switch 5930142764000 142764000,48311 48311
https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133-01-204-1780 Auger Bit 5133012041780 012041780,48311
/www.nsnlookup.com /fsg-47/fsc-4710/us 4710-01-063-6328 Metal Tube Assembly 4710010636328010636328 48311
how to enable JavaScript in your web browser . 5930-14-276-4000Foot Switch5930142764000 142764000 48311
Restrictions 5133-01-204-1780
5133-01-204-1780 is a Auger Bit that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5133-01-204-1780
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5133-01-204-1780
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- HD
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5133-01-204-1780
- Part Number
- Manufacturer
- Status
- 48311
- Manufacturer
- 5M2Q1 - Irwin Industrial Tool Company (Obsolete)
- Original Design
- Original Design
- 48311
- 1JU00 - Irwin Industrial Tool Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 41H24 11/16 (5/8 IN. HEX)
- 5M2Q1 - Irwin Industrial Tool Company (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 41H24 11/16 (5/8 IN. HEX)
- 1JU00 - Irwin Industrial Tool Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5133-01-204-1780
- Characteristic
- Specifications
- FIIG
- Specifications
- A188A0
- Material [MATT]
- Steel Overall
- Cutting End Style [AKZH]
- Hollow Center Single Twist W/Screw Point
- Twist Length [AKZY]
- 21.000 Inches Nominal
- Shank Style [AAZF]
- Hexagon
- Width Across Flats [ASDB]
- 0.625 Inches Nominal
- Overall Length [ABHP]
- 24.000 Inches Nominal
- Nominal Cutting Diameter [AKZL]
- 0.6875 Inches
- Special Features [FEAT]
- Single Spur; Utility Pole Type; For Use With Impact Wrench; 5/8 In. Quick Change Hex Shank
NATO Stock Numbers Related to 5133-01-204-1780
Freight Information 5133-01-204-1780
5133-01-204-1780 has freight characteristics managed by the Food and Drug Administration (FDA).. 5133-01-204-1780 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
