5133-01-053-7932

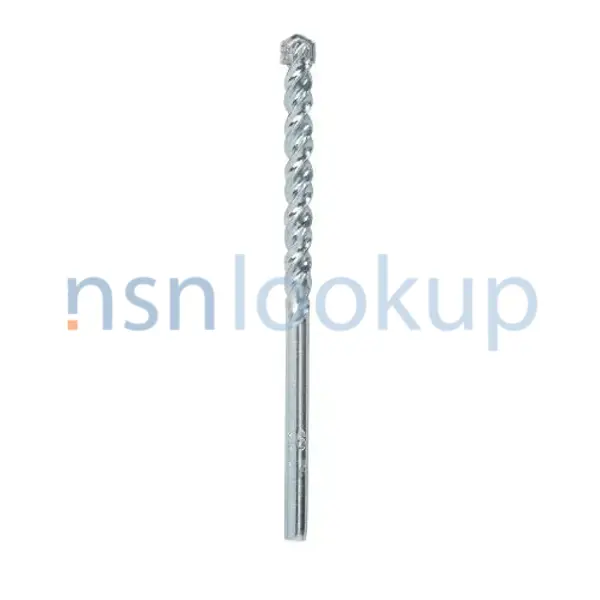

Twist Drill
5133010537932 010537932 NAS907 NAS907 TYJSZ5/64 12355 10305 R10C 5/64 3069A13 46605 550 5/64 710-226101 3011 5/64 DBTBC5/64 33755 300C 5/64 DBC5/64 DBC15 04139 2013 5/64 817 5/64 3700-0078
An end cutting tool having two or more cutting edges, and having helical flutes or grooves adjacent thereto for the admission of coolant and the ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified); and DRILL,TWIST, BONE. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED. View more Twist Drill
November 2023
32
Marketplace 5133-01-053-7932
Request a Quotation from participating marketplace vendors
Related Documents 5133-01-053-7932 5+ Documents (More...)
33755 300C 5/64 DBC5/64 DBC15 04139 2013 5/64 817 5/64 3700-0078 An end cutting tool having two or more
12355 DRILL,TWIST 19 PG NS Request Quotation Subscribe to View Vendor Details... 10305 DRILL,TWIST 10
5/64 710-226101 3011 5/64 DBTBC5/64 33755 300C https -51 Drill Bits, Counterbores, and Countersinks:
Twist Drill 5133010537932 010537932,,NAS907 Upgrade for $1 a day Upgrade your Account Upgrade 5133
NAS907 TYJSZ5/64 385 5/64 46-10250 575 An end cutting tool having two or more cutting edges, and having
/us 5133-01-053-7932 Twist Drill 5133010537932 010537932,,NAS907 NAS907 TYJSZ5/64 12355 10305 R10C 5/
Twist Drill 5133001034293001034293,NAS907NAS907 TYJSZ5/64 385 NAS907 TYJSZ5/64 12355 10305 R10C Twist
https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133-01-053-7932 Twist Drill 5133010537932 010537932,,NAS907
NAS907 TYJSZ5/64 6305D An end cutting tool having two or more cutting edges, and having helical flutes
NAS907 TYJSZ5/64 385 5/64 46-10250 575 An end cutting tool having two or more cutting edges, and having
Restrictions 5133-01-053-7932
5133-01-053-7932 is a Twist Drill that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5133-01-053-7932
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5133-01-053-7932
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AZBF
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G860)
- Effective Date:
- 1 Jun 2001
- NASA (G881)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Mar 2008
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2011
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1994
- Belgium (ZB01)
- Effective Date:
- 1 Nov 2016
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Feb 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1998
- Portugal (ZP01)
- Effective Date:
- 1 May 2012
- Italy (ZR01)
- Effective Date:
- 1 Sep 2001
Approved Sources 5133-01-053-7932
- Part Number
- Manufacturer
- Status
- NAS907
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Incomplete Reference
- Incomplete Reference
- NAS907 TYJSZ5/64
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 10305
- 16568 - Precision Twist Drill Co (Active)
- Secondary Buy
- Secondary Buy
- R10C 5/64
- 16568 - Precision Twist Drill Co (Active)
- Secondary Buy
- Secondary Buy
- 3069A13
- 39428 - Mcmaster-Carr Supply Co (Active)
- Secondary Buy
- Secondary Buy
- 46605
- 60NQ9 - Greenfield Industries Inc (Active)
- Secondary Buy
- Secondary Buy
- 550 5/64
- 60NQ9 - Greenfield Industries Inc (Active)
- Secondary Buy
- Secondary Buy
- 710-226101
- 18056 - Doall Baltimore Company (Active)
- Secondary Buy
- Secondary Buy
- 3011 5/64
- 03882 - New York Twist Drill Inc (Active)
- Secondary Buy
- Secondary Buy
- DBTBC5/64
- 55719 - Idsc Holdings Llc (Active)
- Secondary Buy
- Secondary Buy
- 33755
- 03882 - New York Twist Drill Inc (Active)
- Secondary Buy
- Secondary Buy
- 300C 5/64
- 8J729 - Michigan Drill Corp (Active)
- Secondary Buy
- Secondary Buy
- 46605
- 65400 - Greenfield Industries Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 550 5/64
- 65400 - Greenfield Industries Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- DBC5/64
- 55719 - Idsc Holdings Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- DBC15
- 55719 - Idsc Holdings Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 04139
- 13130 - Cleveland Twist Drill Co Div Of (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2013 5/64
- 13130 - Cleveland Twist Drill Co Div Of (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 817 5/64
- 13130 - Cleveland Twist Drill Co Div Of (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 3700-0078
- 13130 - Cleveland Twist Drill Co Div Of (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 12355
- 11195 - Magna Div Vermont American Corp (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5133-01-053-7932
- Characteristic
- Specifications
- FIIG
- Specifications
- A188A0
- Material [MATT]
- Steel, Cobalt High Speed Overall
- Cutting End Style [AKZH]
- General Purpose
- Flute Length [ALAA]
- 1.000 Inches Nominal
- Shank Style [AAZF]
- Straight Round
- Shank Diameter [AAZE]
- 0.078 Inches Nominal
- Overall Length [ABHP]
- 2.000 Inches Nominal
- Nominal Cutting Diameter [AKZL]
- 0.0781 Inches
- Cutting Rotation Direction [AKZV]
- Right-Hand
- Point Type [BBDT]
- Split
- Point Angle [CSKR]
- 135.0 Degrees Nominal
- Flute Quantity [ALAR]
- 2
- Special Features [FEAT]
- Jobbers Lg; Fractional Size 5/64
- Specification/Standard Data [ZZZK]
- 80205-Nas907 Professional/Industrial Association Standard
- Nondefinitive Spec/Std Data [ZZZT]
- J Type
DLA Procurement Analysis 5133-01-053-7932
Management Data 5133-01-053-7932
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2023
- Department of the Army (DA)
- PG
- Subscribe
- 1
- PG
- Dec 2020
- Department of the Air Force (DF)
- PG
- Subscribe
- 1
- PG
- Feb 2020
- Department of the Air Force (DF)
- PG
- Subscribe
- 1
- PG
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
- Department of the Air Force (DF)
- F
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
- US Marine Corps (DM)
- M
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
- Department of the Navy (DN)
- N
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
- General Services Administration (TG)
- I
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- 0
- Physical Category:
- 1
- Bin
Similar Supply Items to 5133-01-053-7932
Freight Information 5133-01-053-7932
5133-01-053-7932 has freight characteristics managed by the General Services Administration (GSA).It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5133-01-053-7932 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5133-01-053-7932 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5133-01-053-7932 is not classified as a special type of cargo when transported by water. 5133-01-053-7932 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
