5133-01-017-8305
Wood Boring Spade Bit
5133010178305 010178305 88807 88 7/16
A manual or power driven boring tool with a flat body provided with a sharp center point to serve as a guide, a shearing edge to cut the fibers around the edge of the hole and a broad chisel edge to pare and remove the center. View more Wood Boring Spade Bit
May 2023
12
Marketplace 5133-01-017-8305
Request a Quotation from participating marketplace vendors
Related Documents 5133-01-017-8305 5+ Documents (More...)

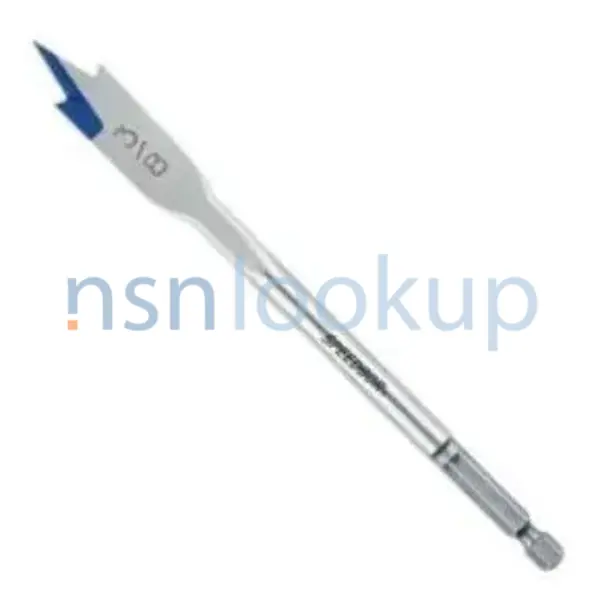

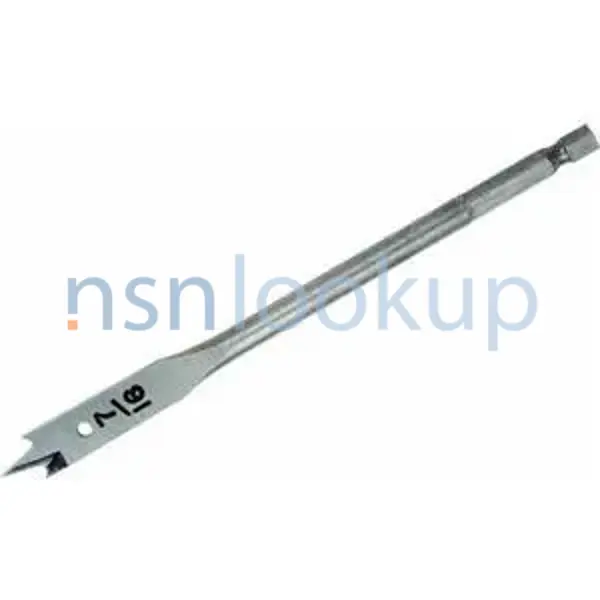

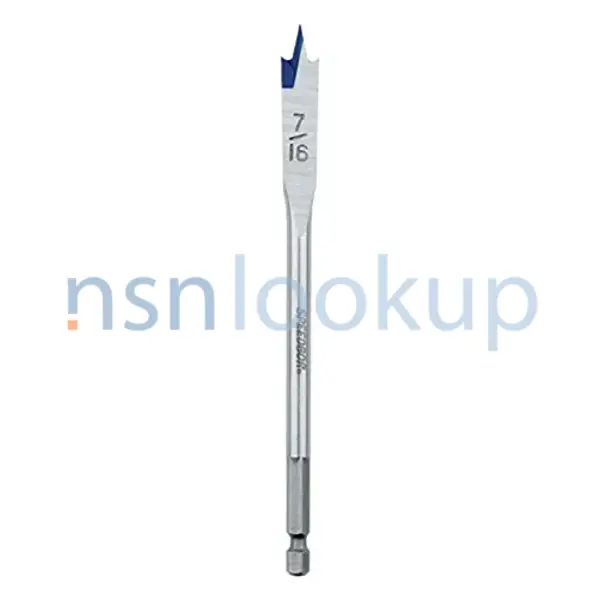

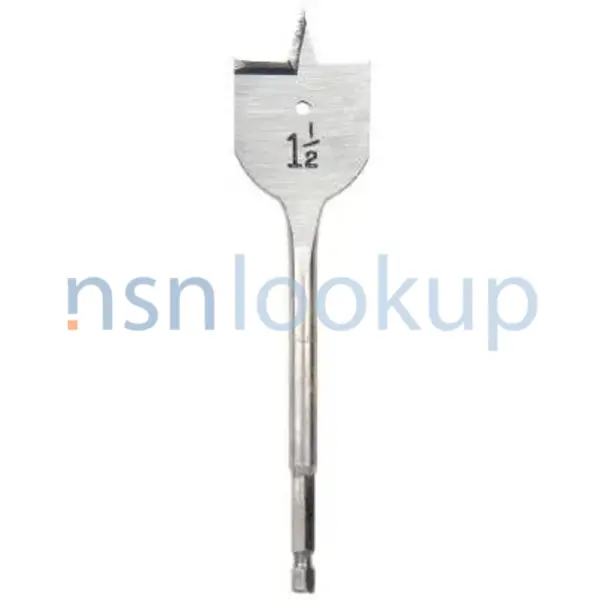

Photo 1/6 5133-01-017-8305 Photo 2/6 5133-01-017-8305 Photo 3/6 5133-01-017-8305 Photo 4/6 NSN
5133-01-017-8305 (Identification) 5/6 NSN 5133-01-017-8305 (Identification) 6/6 - - - - - - 1.
5365-14-414-2017 Machine Thread Plug 5365144142017 144142017 5752 Part NumberManufacturerStatus160-88807
to enable JavaScript in your web browser . 3020-14-521-5751Groove Pulley3020145215751 145215751 160-88807
/fsg-31/fsc-3120/fr
-414-2017 Machine Thread Plug 5365144142017 144142017 5751Groove Pulley3020145215751 145215751 160-88807
enable JavaScript in your web browser . 3120-14-314-2307Sleeve Bushing3120143142307 143142307 160-88807
www.nsnlookup.com /fsg-59/fsc-5998/us 5998-00-165-1116 Circuit Card Assembly 5998001651116001651116 88807
$1 a day Upgrade your Account Upgrade 5998-00-165 -1116Circuit Card Assembly5998001651116 001651116 88807
$1 a day Upgrade your Account Upgrade 5998-00-165-1116Circuit Card Assembly5998001651116 001651116 88807
www.nsnlookup.com /fsg-59/fsc-5998/us 5998-00-165-1116 Circuit Card Assembly 5998001651116001651116 88807
Restrictions 5133-01-017-8305
5133-01-017-8305 is a Wood Boring Spade Bit that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5133-01-017-8305
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5133-01-017-8305
- Canada (ZC01)
- Effective Date:
- 1 Jan 2009
Approved Sources 5133-01-017-8305
- Part Number
- Manufacturer
- Status
- 88807
- Manufacturer
- 5M2Q1 - Irwin Industrial Tool Company (Obsolete)
- Original Design
- Original Design
- 88 7/16
- 1JU00 - Irwin Industrial Tool Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 88807
- 1JU00 - Irwin Industrial Tool Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5133-01-017-8305
- Characteristic
- Specifications
- FIIG
- Specifications
- A188A0
- Cutting End Style [AKZH]
- Flat Head Machine W/Brad Point
- Hardness Rating [CQFM]
- 40.0 Rockwell C Minimum And 53.0 Rockwell C Maximum
- Nominal Cutting Diameter [AKZL]
- 0.4375 Inches
- Material [MATT]
- Steel Overall
- Shank Style [AAZF]
- Hexagon W/Shoulder
- Overall Length [ABHP]
- 6.000 Inches Nominal
- Width Across Flats [ASDB]
- 0.250 Inches Nominal
Similar Supply Items to 5133-01-017-8305
Freight Information 5133-01-017-8305
5133-01-017-8305 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186630. A Sub NMFC of X. It has a NMFC Description of TOOLS:NOI O/T PLSTC IN BBLS/BXS. 5133-01-017-8305 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5133-01-017-8305 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5133-01-017-8305 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5133-01-017-8305 is not classified as a special type of cargo when transported by water. 5133-01-017-8305 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
