5133-00-988-5701

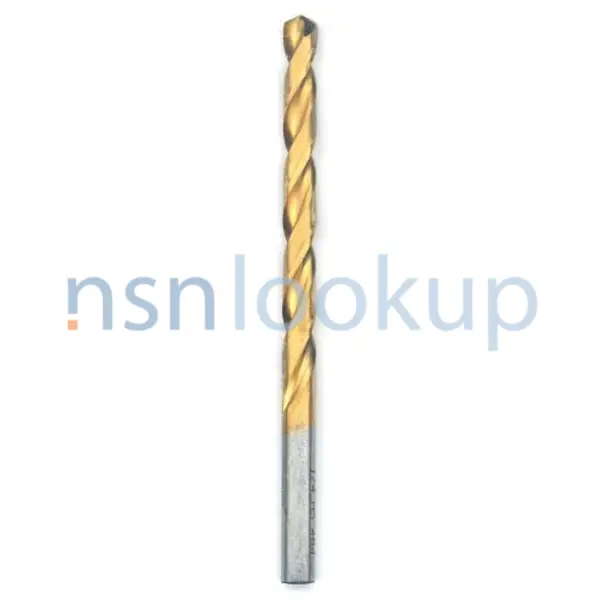

Twist Drill
5133009885701 009885701 NAS907 NAS907 TYJSZ7/32 12364 10314 R10C 7/32 46614 550 7/32 DBTBC7/32 300C 7/32 3011 7/32 33764 2013 7/32 3700-0218 DBC7/32 04240 206C 7/32 817 7/32 20914
An end cutting tool having two or more cutting edges, and having helical flutes or grooves adjacent thereto for the admission of coolant and the ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified); and DRILL,TWIST, BONE. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED. View more Twist Drill
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
November 2023
November 2023
NATO Update Count
43
43
NATO Data Quality
Marketplace 5133-00-988-5701
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5133-00-988-5701 5+ Documents (More...)
NAS907 NAS907 TYJSZ7/32 12364 10314 R10C 7/32 46614 550 7/32 DBTBC7/32 300C 7/32 3011 7/32 33764 2013
7/32 3700-0218 DBC7/32 04240 206C 7/32 817 7/32 20914 An end cutting tool having two or more cutting
Details... 5133-00-988-5701 DRILL,TWIST RQST NS Request Quotation Updated Every Day DBTBC7/32 RQST NE
7/32 3700-0218 DBC7/32 04240 206C 7/32 817 7/32 20914 An end cutting tool having two or more cutting
Details... 5133-00-988-5701 DRILL,TWIST RQST NS Request Quotation Updated Every Day DBTBC7/32 RQST NE
NAS907NAS907 TYJSZ7466773033A217300C NAS907 TYJSZ7/32 12364 10314 R10C 7/32 46614 550 7/32 DBTBC7/32
300C 7/32 3011 7/32 33764 2013 7/32 https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133-01-535-8377 Twist
https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133-00-988-5701 Twist Drill 5133009885701 009885701,NAS907
300C 7/32 3011 7/32 33764 2013 7/32 https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133-01-535-8377 Twist
https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133-00-988-5701 Twist Drill 5133009885701 009885701,NAS907
$1 a day Upgrade your Account Upgrade 5998-00-034-7796Circuit Card Assembly5998000347796 000347796 33764
-2 33764-2-PC5,7,10,11-0.25IN Managed by United States NSN Created on https//www.nsnlookup.com /fsg-
https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133-00-988-5701 Twist Drill 5133009885701 009885701,NAS907
-2 33764-2-PC5,7,10,11-0.25IN Managed by United States NSN Created on https//www.nsnlookup.com /fsg-
https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133-00-988-5701 Twist Drill 5133009885701 009885701,NAS907
NAS907 DRILL,TWIST RQST NS Request Quotation Updated Every Day 5133-00-837-7583 RQST Updated Every Day
NS Request Quotation Updated Every Day DBTBC7/32 https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133
NS Request Quotation Updated Every Day DBTBC7/32 https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133
NS Request Quotation Updated Every Day DBTBC7/32 https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133
NS Request Quotation Updated Every Day DBTBC7/32 https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133
to enable JavaScript in your web browser . 5940-12-044-3526Deckblech5940120443526 120443526 2501-72-33764
to enable JavaScript in your web browser . 5940-12-044-3526Deckblech5940120443526 1204435262501-72-33764
Twist Drill 5133009885701 009885701,NAS907 009885701NAS907NAS907 TYJSZ7/321236410314R10C 7/3246614550
to enable JavaScript in your web browser . 5940-12-044-3526Deckblech5940120443526 1204435262501-72-33764
Twist Drill 5133009885701 009885701,NAS907 009885701NAS907NAS907 TYJSZ7/321236410314R10C 7/3246614550
Restrictions 5133-00-988-5701
5133-00-988-5701 is a Twist Drill that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5133-00-988-5701
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5133-00-988-5701
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AZ
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G860)
- Effective Date:
- 1 Jun 2001
- US Marine Corps (MC14)
- Effective Date:
- 1 Mar 2008
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Dec 2001
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Feb 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Aug 2000
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5133-00-988-5701
- Part Number
- Manufacturer
- Status
- NAS907
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Incomplete Reference
- Incomplete Reference
- NAS907 TYJSZ7/32
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 10314
- 16568 - Precision Twist Drill Co (Active)
- Secondary Buy
- Secondary Buy
- R10C 7/32
- 16568 - Precision Twist Drill Co (Active)
- Secondary Buy
- Secondary Buy
- 46614
- 60NQ9 - Greenfield Industries Inc (Active)
- Secondary Buy
- Secondary Buy
- 550 7/32
- 60NQ9 - Greenfield Industries Inc (Active)
- Secondary Buy
- Secondary Buy
- DBTBC7/32
- 55719 - Idsc Holdings Llc (Active)
- Secondary Buy
- Secondary Buy
- 300C 7/32
- 8J729 - Michigan Drill Corp (Active)
- Secondary Buy
- Secondary Buy
- 3011 7/32
- 03882 - New York Twist Drill Inc (Active)
- Secondary Buy
- Secondary Buy
- 33764
- 03882 - New York Twist Drill Inc (Active)
- Secondary Buy
- Secondary Buy
- 2013 7/32
- 13130 - Cleveland Twist Drill Co Div Of (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 3700-0218
- 13130 - Cleveland Twist Drill Co Div Of (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- DBC7/32
- 55719 - Idsc Holdings Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 04240
- 13130 - Cleveland Twist Drill Co Div Of (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 206C 7/32
- 42970 - Lear Siegler Inc National Twist (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 817 7/32
- 13130 - Cleveland Twist Drill Co Div Of (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 46614
- 65400 - Greenfield Industries Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 550 7/32
- 65400 - Greenfield Industries Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 20914
- 42970 - Lear Siegler Inc National Twist (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 12364
- 11195 - Magna Div Vermont American Corp (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5133-00-988-5701
- Characteristic
- Specifications
- FIIG
- Specifications
- A188A0
- Material [MATT]
- Steel, Cobalt High Speed Overall
- Cutting End Style [AKZH]
- General Purpose
- Flute Length [ALAA]
- 2.500 Inches Nominal
- Shank Style [AAZF]
- Straight Round
- Shank Diameter [AAZE]
- 0.219 Inches Nominal
- Overall Length [ABHP]
- 3.750 Inches Nominal
- Nominal Cutting Diameter [AKZL]
- 0.2188 Inches
- Cutting Rotation Direction [AKZV]
- Right-Hand
- Point Type [BBDT]
- Split
- Point Angle [CSKR]
- 135.0 Degrees Nominal
- Flute Quantity [ALAR]
- 2
- Special Features [FEAT]
- Jobbers Lg; Fractional Size 7/32
- Specification/Standard Data [ZZZK]
- 80205-Nas907 Professional/Industrial Association Standard
- Nondefinitive Spec/Std Data [ZZZT]
- J Type
Management Data 5133-00-988-5701
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2023
- US Marine Corps (DM)
- PG
- Subscribe
- 1
- PG
- Dec 2020
- Department of the Air Force (DF)
- PG
- Subscribe
- 1
- PG
- Feb 2020
- Department of the Air Force (DF)
- PG
- Subscribe
- 1
- PG
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
- Department of the Air Force (DF)
- F
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
- US Marine Corps (DM)
- M
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
- Department of the Navy (DN)
- N
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
- General Services Administration (TG)
- I
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- 0
- Physical Category:
- 1
- Bin
NATO Stock Numbers Related to 5133-00-988-5701
5133-12-391-7590 5133-25-103-8830 5133-99-436-4893 5133-12-368-7561 5133-12-368-6120 5133-12-388-5924 5133-19-004-1714 5133-22-610-6009 5133-12-370-0633 5133-12-121-8086 5133-17-125-0517 5133-12-368-6232 5133-99-124-2206 5133-12-310-9585 5133-12-369-0246 5133-25-100-2796 5133-21-870-2067 5133-99-428-7325
Freight Information 5133-00-988-5701
5133-00-988-5701 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5133-00-988-5701 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5133-00-988-5701 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5133-00-988-5701 is not classified as a special type of cargo when transported by water. 5133-00-988-5701 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
