5133-00-988-5698

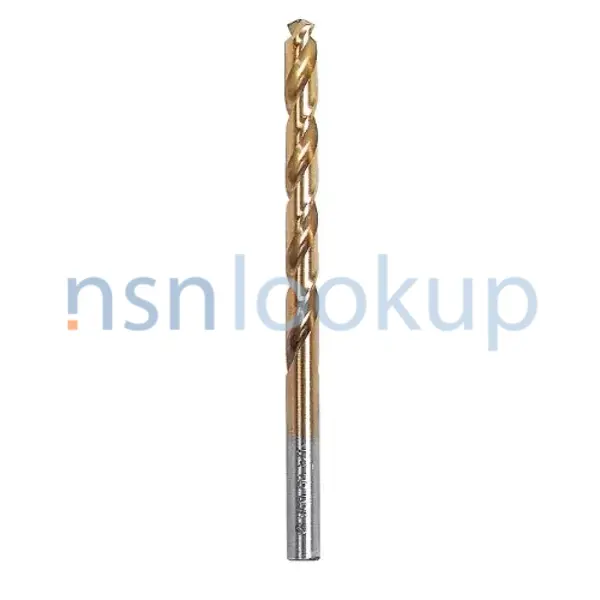

Twist Drill
5133009885698 009885698 NAS907 NAS907 TYJSZ11/64 12361 DBC11/64A DBC11/64 3011 11/64 R10C 11/64 550 11/64 DBTBC11/64 33761 10311 3069A19 46611 300C 11/64 04208 2013 11/64
An end cutting tool having two or more cutting edges, and having helical flutes or grooves adjacent thereto for the admission of coolant and the ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified); and DRILL,TWIST, BONE. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED. View more Twist Drill
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
November 2023
November 2023
NATO Update Count
47
47
NATO Data Quality
Marketplace 5133-00-988-5698
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Updated Every Day DBC11/64A RQST NE
Updated Every Day DBC11/64 RQST NE
Updated Every Day DBTBC11/64 RQST NE
Updated Every Day 3069A19 RQST NE
Updated Every Day 5133-00-988-5698 RQST NE
Updated Every Day 5133-00-988-5698 RQST
Updated Every Day 5133-00-988-5698 RQST NE
Related Documents 5133-00-988-5698 5+ Documents (More...)
NAS907 NAS907 TYJSZ11/64 12361 DBC11/64A DBC11/64 3011 11/64 R10C 11/64 550 11/64 DBTBC11/64 33761 10311
3069A19 46611 300C 11/64 04208 2013 11/64 An end cutting tool having two or more cutting edges, and
Updated Every Day DBC11/64A RQST NE Updated Every Day DBC11/64 RQST NE Updated Every Day DBTBC11/64
3069A19 46611 300C 11/64 04208 2013 11/64 An end cutting tool having two or more cutting edges, and
Updated Every Day DBC11/64A RQST NE Updated Every Day DBC11/64 RQST NE Updated Every Day DBTBC11/64
NAS907 TYJSZ11/64 6311D An end cutting tool having two or more cutting edges, and having helical flutes
DRILL,TWIST https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133-00-988-5698 Twist Drill 5133009885698
009885698,NAS907 Upgrade for $1 a day Upgrade your Account Upgrade 5133-00-988-5698Twist Drill5133009885698
DRILL,TWIST https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133-00-988-5698 Twist Drill 5133009885698
009885698,NAS907 Upgrade for $1 a day Upgrade your Account Upgrade 5133-00-988-5698Twist Drill5133009885698
988-5701 5133-00-988-5655 5133-00-222-9468 5133-01-597-6006 5133-21-105-1095 5133-01-053-7932 5133-00-988-5698
988-5701 5133-00-988-5655 5133-00-222-9468 5133-01-597-6006 5133-21-105-1095 5133-01-053-7932 5133-00-988-5698
Upgrade for $1 a day Upgrade your Account Upgrade 5133-01-650-3668Twist Drill5133016503668 016503668 DBTBC11/64
vendors Request FedMall Updated Every 15 Minutes 5133-01-650-3668 BUY NE FedMall Updated Every Day DBTBC11/64
Twist Drill 5133009885698 009885698,NAS907 Twist Drill 5133016503668016503668 BUY NE FedMall Updated
vendors Request FedMall Updated Every 15 Minutes 5133-01-650-3668 BUY NE FedMall Updated Every Day DBTBC11/64
Twist Drill 5133009885698 009885698,NAS907 Twist Drill 5133016503668016503668 BUY NE FedMall Updated
Restrictions 5133-00-988-5698
5133-00-988-5698 is a Twist Drill that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5133-00-988-5698
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5133-00-988-5698
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AZCTBF
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G860)
- Effective Date:
- 1 Jun 2001
- US Marine Corps (MC14)
- Effective Date:
- 1 Mar 2008
- US Navy (N9QG)
- Effective Date:
- 1 Jun 2004
- Supplementary Collaborators:
- GT
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2011
- Spain (YB01)
- Effective Date:
- 1 Dec 2001
- Singapore (YJ01)
- Effective Date:
- 1 Dec 1996
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Feb 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2010
- Italy (ZR01)
- Effective Date:
- 1 Sep 2001
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Jan 2014
Approved Sources 5133-00-988-5698
- Part Number
- Manufacturer
- Status
- NAS907
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Incomplete Reference
- Incomplete Reference
- NAS907 TYJSZ11/64
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- DBC11/64A
- 55719 - Idsc Holdings Llc (Active)
- Secondary Buy
- Secondary Buy
- DBC11/64
- 55719 - Idsc Holdings Llc (Active)
- Secondary Buy
- Secondary Buy
- 3011 11/64
- 03882 - New York Twist Drill Inc (Active)
- Secondary Buy
- Secondary Buy
- R10C 11/64
- 16568 - Precision Twist Drill Co (Active)
- Secondary Buy
- Secondary Buy
- 550 11/64
- 60NQ9 - Greenfield Industries Inc (Active)
- Secondary Buy
- Secondary Buy
- DBTBC11/64
- 55719 - Idsc Holdings Llc (Active)
- Secondary Buy
- Secondary Buy
- 33761
- 03882 - New York Twist Drill Inc (Active)
- Secondary Buy
- Secondary Buy
- 10311
- 16568 - Precision Twist Drill Co (Active)
- Secondary Buy
- Secondary Buy
- 3069A19
- 39428 - Mcmaster-Carr Supply Co (Active)
- Secondary Buy
- Secondary Buy
- 46611
- 60NQ9 - Greenfield Industries Inc (Active)
- Secondary Buy
- Secondary Buy
- 300C 11/64
- 8J729 - Michigan Drill Corp (Active)
- Secondary Buy
- Secondary Buy
- 04208
- 1NEX4 - Kennametal Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2013 11/64
- 1NEX4 - Kennametal Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2013 11/64
- 13130 - Cleveland Twist Drill Co Div Of (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 04208
- 13130 - Cleveland Twist Drill Co Div Of (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 46611
- 65400 - Greenfield Industries Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 550 11/64
- 65400 - Greenfield Industries Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 12361
- 11195 - Magna Div Vermont American Corp (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5133-00-988-5698
- Characteristic
- Specifications
- FIIG
- Specifications
- A188A0
- Material [MATT]
- Steel, Cobalt High Speed Overall
- Cutting End Style [AKZH]
- General Purpose
- Flute Length [ALAA]
- 2.125 Inches Nominal
- Shank Style [AAZF]
- Straight Round
- Shank Diameter [AAZE]
- 0.172 Inches Nominal
- Overall Length [ABHP]
- 3.250 Inches Nominal
- Nominal Cutting Diameter [AKZL]
- 0.1719 Inches
- Cutting Rotation Direction [AKZV]
- Right-Hand
- Point Type [BBDT]
- Split
- Point Angle [CSKR]
- 135.0 Degrees Nominal
- Flute Quantity [ALAR]
- 2
- Special Features [FEAT]
- Jobbers Lg; Fractional Size 11/64
- Specification/Standard Data [ZZZK]
- 80205-Nas907 Professional/Industrial Association Standard
- Nondefinitive Spec/Std Data [ZZZT]
- J Type
Management Data 5133-00-988-5698
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2023
- General Services Administration (TG)
- PG
- Subscribe
- PG
- Dec 2020
- Department of the Air Force (DF)
- PG
- Subscribe
- PG
- Feb 2020
- Department of the Air Force (DF)
- PG
- Subscribe
- PG
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
- Department of the Air Force (DF)
- F
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
- US Marine Corps (DM)
- M
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
- Department of the Navy (DN)
- N
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
- General Services Administration (TG)
- I
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- 0
- Physical Category:
- 1
- Bin
Similar Supply Items to 5133-00-988-5698
Freight Information 5133-00-988-5698
5133-00-988-5698 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5133-00-988-5698 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5133-00-988-5698 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5133-00-988-5698 is not classified as a special type of cargo when transported by water. 5133-00-988-5698 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
