5133-00-988-5673

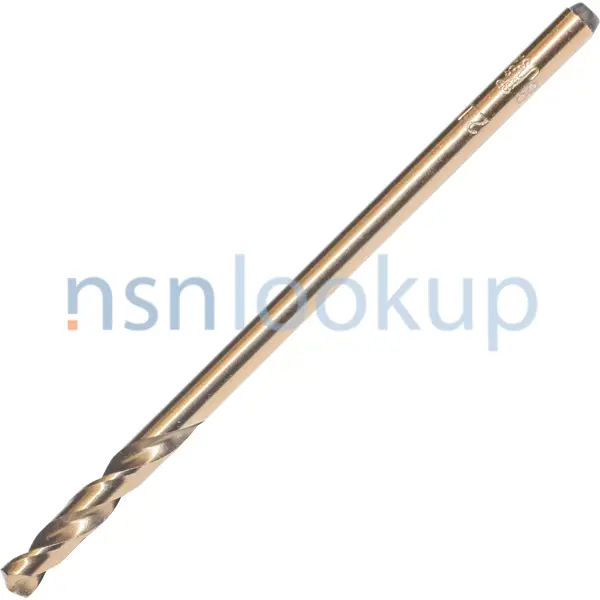

Twist Drill
5133009885673 009885673 NAS907 NAS907 TYDSZ21 4138681 3332 21 35563 R89CO 21 58821 58821OXIDE 3318 21
An end cutting tool having two or more cutting edges, and having helical flutes or grooves adjacent thereto for the admission of coolant and the ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified); and DRILL,TWIST, BONE. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED. View more Twist Drill
September 2023
31
#21 (0.159"), 3-1/4" L, 1-1/16" L Flute
Marketplace 5133-00-988-5673
Request a Quotation from participating marketplace vendors
Restrictions 5133-00-988-5673
5133-00-988-5673 is a Twist Drill that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5133-00-988-5673
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5133-00-988-5673
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- CT
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Mar 1997
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- NIQG
- Supplementary Collaborators:
- GTHE
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Jun 1999
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5133-00-988-5673
- Part Number
- Manufacturer
- Status
- NAS907
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Incomplete Reference
- Incomplete Reference
- NAS907 TYDSZ21
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 4138681
- 9S833 - Minnesota Twist Drill Inc (Active)
- Secondary Buy
- Secondary Buy
- 3332 21
- 03882 - New York Twist Drill Inc (Active)
- Secondary Buy
- Secondary Buy
- 35563
- 03882 - New York Twist Drill Inc (Active)
- Secondary Buy
- Secondary Buy
- R89CO 21
- 16568 - Precision Twist Drill Co (Active)
- Secondary Buy
- Secondary Buy
- 58821
- 16568 - Precision Twist Drill Co (Active)
- Secondary Buy
- Secondary Buy
- 58821OXIDE
- H2313 - Eriks B.V. (Active)
- Secondary Buy
- Secondary Buy
- 58821OXIDE
- H1784 - Van Eyle & Ruygers Schwartz (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 3318 21
- 13130 - Cleveland Twist Drill Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5133-00-988-5673
- Characteristic
- Specifications
- FIIG
- Specifications
- A188A0
- Cutting End Style [AKZH]
- General Purpose
- Cutting Rotation Direction [AKZV]
- Right-Hand
- Flute Length [ALAA]
- 1.062 Inches Nominal
- Flute Quantity [ALAR]
- 2
- Material [MATT]
- Steel, Cobalt High Speed Overall
- Nominal Cutting Diameter [AKZL]
- 0.1590 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- D Type And 21 Size
- Point Type [BBDT]
- Split
- Point Angle [CSKR]
- 135.0 Degrees Nominal
- Shank Diameter [AAZE]
- 0.159 Inches Nominal
- Shank Style [AAZF]
- Straight Round
- Overall Length [ABHP]
- 3.250 Inches Nominal
- Special Features [FEAT]
- Jobbers Lg; Short Flute; Wire Size 21
- Specification/Standard Data [ZZZK]
- 80205-Nas907 Professional/Industrial Association Standard
Management Data 5133-00-988-5673
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
NATO Stock Numbers Related to 5133-00-988-5673
Freight Information 5133-00-988-5673
5133-00-988-5673 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5133-00-988-5673 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5133-00-988-5673 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5133-00-988-5673 is not classified as a special type of cargo when transported by water. 5133-00-988-5673 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
