5133-00-865-4228

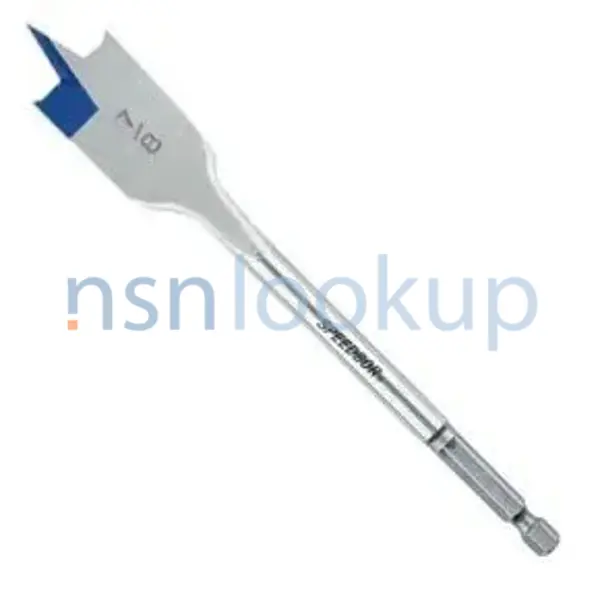

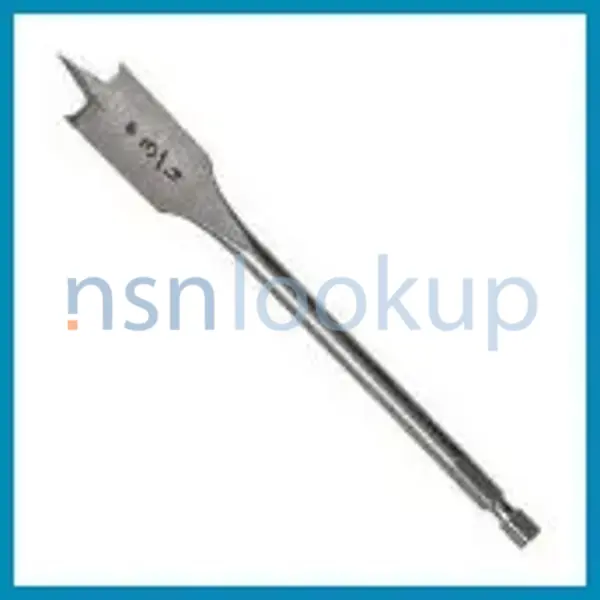

Wood Boring Spade Bit
5133008654228 008654228 25107 GGG-B-383 88814 861 GGG-B-383 TY1CLQ
A manual or power driven boring tool with a flat body provided with a sharp center point to serve as a guide, a shearing edge to cut the fibers around the edge of the hole and a broad chisel edge to pare and remove the center. View more Wood Boring Spade Bit
May 2023
25
Marketplace 5133-00-865-4228
Request a Quotation from participating marketplace vendors
Related Documents 5133-00-865-4228 5+ Documents (More...)
GGG-B-383 BIT,SPADE,WOOD BORING 8 PG NS Request Quotation Subscribe to View Vendor Details... 861 BIT
8 PG NS Request Quotation Subscribe to View Vendor Details... 861 BIT Photo 2/5 5133-00-865-4228 Photo
www.nsnlookup.com /fsg-51/fsc-5133/us 5133-00-865-4223 Wood Boring Spade Bit 5133008654223 008654223 856 GGG-B-383
www.nsnlookup.com /fsg-51/fsc-5133/us 5133-00-865-4226 Wood Boring Spade Bit 5133008654226 008654226 88812 859 GGG-B-383
Upgrade your Account Upgrade 5133-00-865-4225Wood Boring Spade Bit5133008654225 008654225 25104 88811 GGG-B-383
TY1CLQ GGG-B-383 858 A manual or power driven boring tool with a flat body provided with a sharp
9 PG NS Request Quotation us 5133-00-865-4223 Wood Boring Spade Bit 5133008654223 008654223 856 GGG-B-383
fsg-51/fsc-5133/us 5133-00-865-4229 Wood Boring Spade Bit 5133008654229 008654229 88816 99916 863 GGG-B-383
www.nsnlookup.com /fsg-51/fsc-5133/us 5133-00-865-4226 Wood Boring Spade Bit 5133008654226 008654226 88812 859 GGG-B-383
fsg-51/fsc-5133/us 5133-00-865-4229 Wood Boring Spade Bit 5133008654229 008654229 88816 99916 863 GGG-B-383
Restrictions 5133-00-865-4228
5133-00-865-4228 is a Wood Boring Spade Bit that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5133-00-865-4228
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5133-00-865-4228
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AMCLBF
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- TT
- NASA (G721)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G801)
- Effective Date:
- 1 Apr 1991
- NASA (G861)
- Effective Date:
- 1 Apr 1991
- NASA (G881)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTJN
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5133-00-865-4228
- Part Number
- Manufacturer
- Status
- 88814
- Manufacturer
- 78525 - Stanley Tools Div Of Stanley Works (Active)
- Primary Buy
- Primary Buy
- 25107
- 91916 - Mephisto Tool Co Inc (Active)
- Secondary Buy
- Secondary Buy
- GGG-B-383
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 88814
- 1JU00 - Irwin Industrial Tool Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 861
- 76028 - The Gorilla Glue Company Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-B-383 TY1CLQ
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 88814
- 5M2Q1 - Irwin Industrial Tool Company (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5133-00-865-4228
- Characteristic
- Specifications
- FIIG
- Specifications
- A188A0
- Cutting End Style [AKZH]
- Flat Head Machine W/Brad Point
- Hardness Rating [CQFM]
- 40.0 Rockwell C Minimum And 53.0 Rockwell C Maximum
- Nominal Cutting Diameter [AKZL]
- 0.8750 Inches
- Material [MATT]
- Steel Overall
- Shank Style [AAZF]
- Hexagon W/Shoulder
- Overall Length [ABHP]
- 6.000 Inches Minimum And 6.500 Inches Maximum
- Width Across Flats [ASDB]
- 0.250 Inches Nominal
Management Data 5133-00-865-4228
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2021
- Department of the Air Force (DF)
- PG
- Subscribe
- 6
- PG
- Feb 2020
- Department of the Air Force (DF)
- PG
- Subscribe
- 6
- PG
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- K
- U/I Contains 6 Ea
- 00000000006EA
- K
- Department of the Air Force (DF)
- F
- K
- U/I Contains 6 Ea
- 00000000006EA
- K
- US Marine Corps (DM)
- M
- K
- U/I Contains 6 Ea
- 00000000006EA
- K
- Department of the Navy (DN)
- N
- K
- U/I Contains 6 Ea
- 00000000006EA
- K
- General Services Administration (TG)
- I
- K
- U/I Contains 6 Ea
- 00000000006EA
- K
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5133-00-865-4228
Freight Information 5133-00-865-4228
5133-00-865-4228 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186630. A Sub NMFC of X. It has a NMFC Description of TOOLS:NOI O/T PLSTC IN BBLS/BXS. 5133-00-865-4228 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5133-00-865-4228 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5133-00-865-4228 is not classified as a special type of cargo when transported by water. 5133-00-865-4228 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
