5133-00-391-4622
Countersink Cutter
5133003914622 003914622 6432 L853NSH2PC85A
The detachable portion of a machine countersink which includes the cutting edge, having various size cutting angles and a special shank. The special shank is designed to accommodate a special holder. The cutter may have an integral pilot or be designed for an interchangeable pilot, which may or may not be included. For items with special holder included, use COUNTERSINK. View more Countersink Cutter
May 2023
20
Marketplace 5133-00-391-4622
Request a Quotation from participating marketplace vendors
Related Documents 5133-00-391-4622 1+ Documents (More...)
RQST NE Updated Every Day 5133-00-391-4622 RQST Updated Every Day 5133-00-391-4622 RQST NE Related
Documents 5133-00-391-4622 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133
Restrictions 5133-00-391-4622
5133-00-391-4622 is a Countersink Cutter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5133-00-391-4622
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5133-00-391-4622
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5133-00-391-4622
- Part Number
- Manufacturer
- Status
- 6432
- Manufacturer
- 66042 - Thomas C. Wilson, Inc. (Obsolete)
- Original Design
- Original Design
- L853NSH2PC85A
- 66042 - Thomas C. Wilson, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5133-00-391-4622
- Characteristic
- Specifications
- FIIG
- Specifications
- A188A0
- Body Diameter [ABPM]
- 0.640 Nominal Inches
- Cutting End Style [AKZH]
- Straight Flute Blunt End
- Flute Quantity [ALAR]
- 4
- Nominal Thread Diameter [AHYM]
- 0.216 Inches
- Material [MATT]
- Steel Overall
- Included Angle [CTHT]
- 45.0 Degrees Nominal
- Point Diameter [AAVA]
- 0.125 Inches Nominal

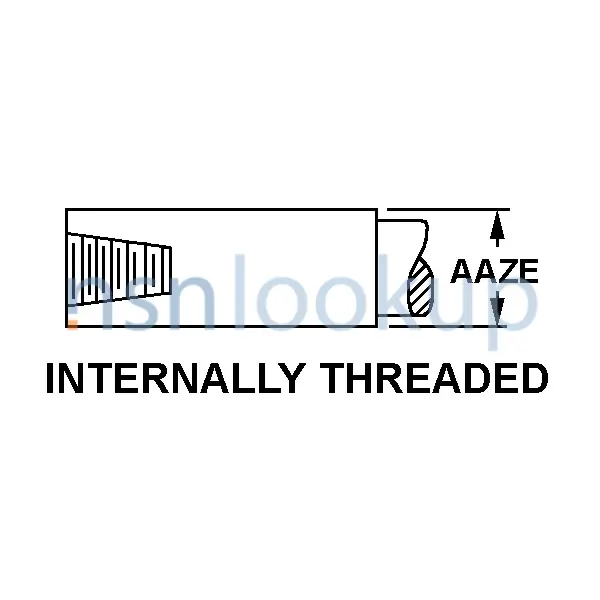

- Shank Diameter [AAZE]
- 0.375 Nominal Inches
- Shank Style [AAZF]
- Internally Threaded
- Overall Length [ABHP]
- 2.312 Inches Nominal
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2B
- Thread Quantity [CQRN]
- 28 Per Inch
- Thread Series Designator [THSD]
- Unf
DLA Procurement Analysis 5133-00-391-4622
Management Data 5133-00-391-4622
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5133-00-391-4622
Freight Information 5133-00-391-4622
5133-00-391-4622 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5133-00-391-4622 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5133-00-391-4622 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5133-00-391-4622 is not classified as a special type of cargo when transported by water. 5133-00-391-4622 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
