5133-00-293-0227
Bell-Hanger's Bit
5133002930227 002930227 GGG-B-383 GGG-B-383 TY1CLB 48PT-5/16X18
A twist drill-like item having a bit stock shank, with or without a small hole near the point for use in pulling wire. The length of twist is approximately 3 1/2 inches (88.9 mm) and the over-all length varies from 12 inches to 36 inches (304.8 mm to 914.4 mm). View more Bell-Hanger's Bit
May 2023
4
Marketplace 5133-00-293-0227
Request a Quotation from participating marketplace vendors
Related Documents 5133-00-293-0227 5+ Documents (More...)
GGG-B-383 BIT,BELL-HANGER'S 8 EA NS Request Quotation Updated Every Day 5133-00-293-0227 RQST NE Updated
www.nsnlookup.com /fsg-51/fsc-5133/us 5133-00-156-8461 Bell-Hanger's Bit 5133001568461 001568461 GGG-B-383
-8461 RQST NE Updated -51/fsc-5133/us 5133-00-596-9330 Bell-Hanger's Bit 5133005969330 005969330 GGG-B-383
www.nsnlookup.com /fsg-51/fsc-5133/us 5133-00-293-0228 Bell-Hanger's Bit 5133002930228 002930228 GGG-B-383
www.nsnlookup.com /fsg-51/fsc-5133/us 5133-00-156-8461 Bell-Hanger's Bit 5133001568461 001568461 GGG-B-383
www.nsnlookup.com /fsg -51/fsc-5133/us 5133-00-293-0228 Bell-Hanger's Bit 5133002930228 002930228 GGG-B-383
www.nsnlookup.com /fsg-51/fsc-5133/us 5133-00-293-0228 Bell-Hanger's Bit 5133002930228 002930228 GGG-B-383
GGG-B-383 TY1CLB A twist drill-like item having a bit stock shank, with or without a small hole
https//www.nsnlookup.com /fsg-51/fsc-5133/us 5133-00-293-0227 Bell-Hanger's Bit 5133002930227 002930227
GGG-B-383 TY1CLB 48PT-5/16X18 A twist drill-like item having a bit stock shank, with or without TY1CLB
Restrictions 5133-00-293-0227
5133-00-293-0227 is a Bell-Hanger's Bit that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5133-00-293-0227
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5133-00-293-0227
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR)
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5133-00-293-0227
- Part Number
- Manufacturer
- Status
- 48PT-5/16X18
- Manufacturer
- 26289 - Greenlee Textron Inc. (Active)
- Primary Buy
- Primary Buy
- GGG-B-383
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- GGG-B-383 TY1CLB
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5133-00-293-0227
- Characteristic
- Specifications
- FIIG
- Specifications
- A188A0

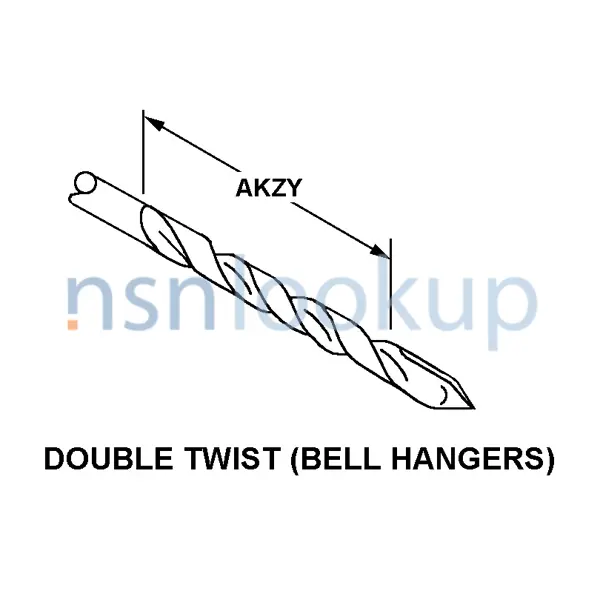

- Cutting End Style [AKZH]
- Double Twist (Bell Hangers)
- Hardness Rating [CQFM]
- 40.0 Rockwell C Minimum And 53.0 Rockwell C Maximum
- Nominal Cutting Diameter [AKZL]
- 0.3125 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- B Class And 1 Type
- Material [MATT]
- Steel Overall
- Shank Large End Square Width [ALAF]
- 0.312 Inches Nominal
- Shank Small End Square Width [ALAH]
- 0.187 Inches Nominal
- Shank Style [AAZF]
- Taper-Square
- Overall Length [ABHP]
- 18.000 Inches Nominal
- Twist Length [AKZY]
- 3.500 Inches Minimum
Similar Supply Items to 5133-00-293-0227
Freight Information 5133-00-293-0227
5133-00-293-0227 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5133-00-293-0227 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5133-00-293-0227 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5133-00-293-0227 is not classified as a special type of cargo when transported by water. 5133-00-293-0227 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
