5133-00-277-6667
Auger Bit
5133002776667 002776667 45307 GGG-B-383 TY1CLI GGG-B-383
A manual or power driven boring tool with a double twist solid center or a single twist hollow or solid center body of one nominal diameter. It is formed into a cutter head at one end, and a shank at the other end. The double twist body type must have either a screw point or a brad point. Excludes BIT, PLUG; and BIT, EXPANSIVE. See also BIT, HOLLOW CHISEL. View more Auger Bit
May 2023
15
Marketplace 5133-00-277-6667
Request a Quotation from participating marketplace vendors
Related Documents 5133-00-277-6667 5+ Documents (More...)

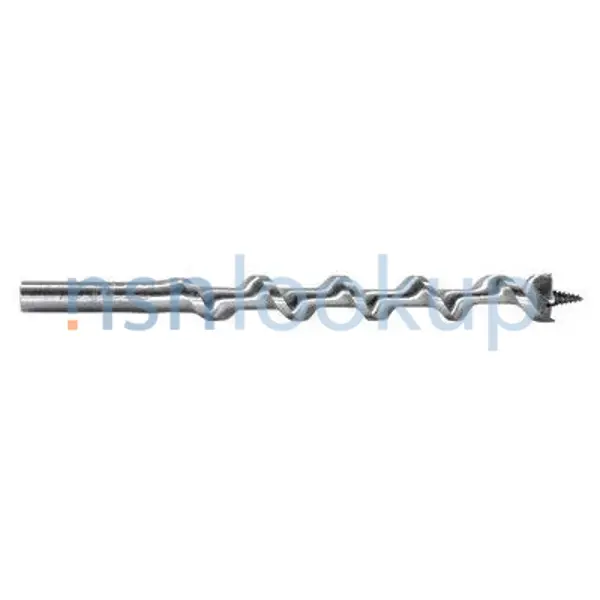

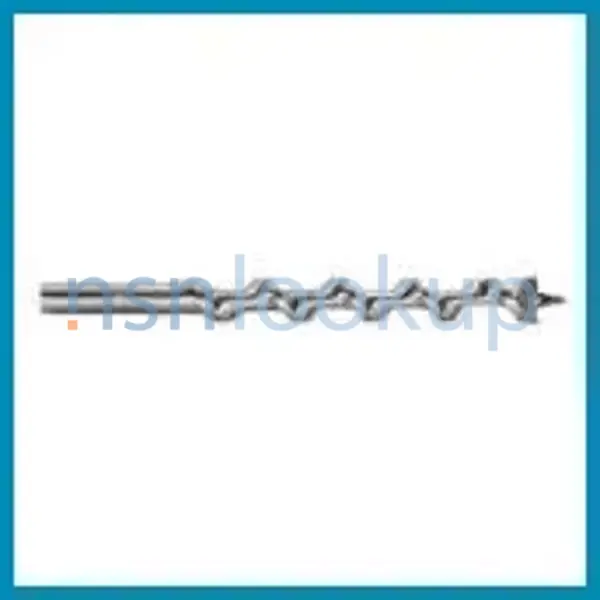

Photo 3/5 NSN 5133-00-277-6667 (Identification GGG-B-383 BIT,AUGER 8 GGG-B-383 TY1CLI A manual
TY1CLI A manual or power driven boring tool with a double twist solid center or a single GGG-B-383 GGG-B
TY1CLI A manual or power driven boring tool with a double twist solid center or a single GGG-B-383
GGG-B-383 TY1CLI A manual or power driven boring tool with a double twist solid center or a single GGG-B
TY1CLI A manual or power driven boring tool with a double twist solid center or a single GGG-B-383
GGG-B-383 TY1CLI A manual or power driven boring tool with a double twist solid center or a single GGG-B
TY1CLI A manual or power driven boring tool with a double twist solid center or a single GGG-B-383
GGG-B-383 TY1CLI A manual or power driven boring tool with a double twist solid center or a single GGG-B
TY1CLI A manual or power driven boring tool with a double twist solid center or a single GGG-B-383
GGG-B-383 TY1CLI A manual or power driven boring tool with a double twist solid center or a single GGG-B
Restrictions 5133-00-277-6667
5133-00-277-6667 is a Auger Bit that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5133-00-277-6667
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5133-00-277-6667
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Jun 2004
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5133-00-277-6667
- Part Number
- Manufacturer
- Status
- 45307
- Manufacturer
- 78525 - Stanley Tools Div Of Stanley Works (Active)
- Primary Buy
- Primary Buy
- 45307
- 5M2Q1 - Irwin Industrial Tool Company (Obsolete)
- Original Design
- Original Design
- GGG-B-383 TY1CLI
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-B-383
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 45307
- 1JU00 - Irwin Industrial Tool Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5133-00-277-6667
- Characteristic
- Specifications
- FIIG
- Specifications
- A188A0
- Hardness Rating [CQFM]
- 40.0 Rockwell C Minimum And 53.0 Rockwell C Maximum
- Nominal Cutting Diameter [AKZL]
- 0.4375 Inches
- Material [MATT]
- Steel Overall
- Shank Diameter [AAZE]
- 0.500 Inches Nominal
- Shank Style [AAZF]
- Straight Round
- Overall Length [ABHP]
- 8.000 Inches Minimum And 8.500 Inches Maximum
- Twist Length [AKZY]
- 6.000 Inches Minimum And 6.500 Inches Maximum
Management Data 5133-00-277-6667
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 6
- EA
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
NATO Stock Numbers Related to 5133-00-277-6667
Freight Information 5133-00-277-6667
5133-00-277-6667 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5133-00-277-6667 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5133-00-277-6667 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5133-00-277-6667 is not classified as a special type of cargo when transported by water. 5133-00-277-6667 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
