5133-00-133-4215
Twist Drill
5133001334215 001334215 34757 60769 A-A-517 10428 43560
An end cutting tool having two or more cutting edges, and having helical flutes or grooves adjacent thereto for the admission of coolant and the ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified); and DRILL,TWIST, BONE. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED. View more Twist Drill
May 2023
19
Marketplace 5133-00-133-4215
Request a Quotation from participating marketplace vendors
Related Documents 5133-00-133-4215 5+ Documents (More...)

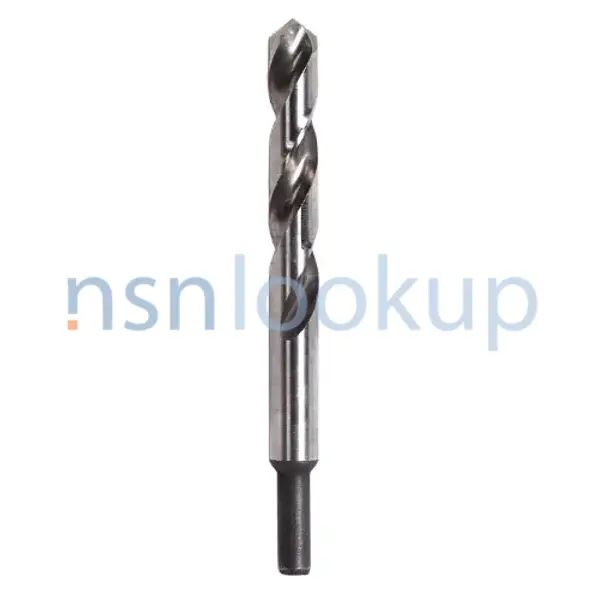

Photo 1/3 NSN 5133-00-133-4215 (Identification) 2/3 NSN 5133-00-133-4215 (Identification) 3/3 -
Updated Every 15 Minutes 5133-00-133-4215 BUY NE FedMall Updated Every Day 5133-00-133-4215 RQST NE Updated
-1 60769 //www.nsnlookup.com /fsg-43/fsc-4320/fr 4320 Satellite 4320143112689143112689,AD3-60769-1 how
Twist Drill 5133001334215 001334215,34757 Satellite 4320143112689143112689,AD3-60769-1 how to enable
-1 60769 //www.nsnlookup.com /fsg-43/fsc-4320/fr 4320 Satellite 4320143112689143112689,AD3-60769-1 how
to enable JavaScript in your web browser . 4320 -14-311-2689Satellite4320143112689 143112689AD3-60769
TRANSFORMER,CURRENT 10 EA NS Request Quotation Subscribe to View Vendor Details... 43560 TRANSFORMER
0JKN0 - Hdt Expeditionary Systems, Inc https Feder 5360998898168 998898168,43560 HH166-43560 0JKN0 -
Restrictions 5133-00-133-4215
5133-00-133-4215 is a Twist Drill that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5133-00-133-4215
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5133-00-133-4215
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTJNHD
Approved Sources 5133-00-133-4215
- Part Number
- Manufacturer
- Status
- 34757
- Manufacturer
- 56630 - Viking Drill And Tool Inc (Active)
- Primary Buy
- Primary Buy
- 60769
- 52203 - Premier Industrial Corp Premier (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- A-A-517
- 58536 - Federal Commercial Item Description (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 60769
- 22168 - Premier Industrial Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 10428
- 62835 - Vermont American Corp Hardware Tool (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 43560
- 52203 - Premier Industrial Corp Premier (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5133-00-133-4215
- Characteristic
- Specifications
- FIIG
- Specifications
- A188A0
- Material [MATT]
- Steel, High Speed Overall
- Cutting End Style [AKZH]
- General Purpose
- Flute Length [ALAA]
- 2.063 Inches Nominal
- Shank Style [AAZF]
- Straight Round
- Shank Diameter [AAZE]
- 0.250 Inches Nominal
- Overall Length [ABHP]
- 4.688 Inches Nominal
- Nominal Cutting Diameter [AKZL]
- 0.4375 Inches
- Cutting Rotation Direction [AKZV]
- Right-Hand
- Point Type [BBDT]
- Split
- Point Angle [CSKR]
- 135.0 Degrees Nominal
- Flute Quantity [ALAR]
- 2
- Special Features [FEAT]
- Reduced 1/4 In. Dia Shank; Fractional Size 7/16
Management Data 5133-00-133-4215
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2012
- Department of the Navy (DN)
- EA
- Subscribe
- EA
Navy
- Cognizance:
- 9Q
Similar Supply Items to 5133-00-133-4215
Freight Information 5133-00-133-4215
5133-00-133-4215 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5133-00-133-4215 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5133-00-133-4215 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5133-00-133-4215 is not classified as a special type of cargo when transported by water. 5133-00-133-4215 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
