5130-01-611-4519

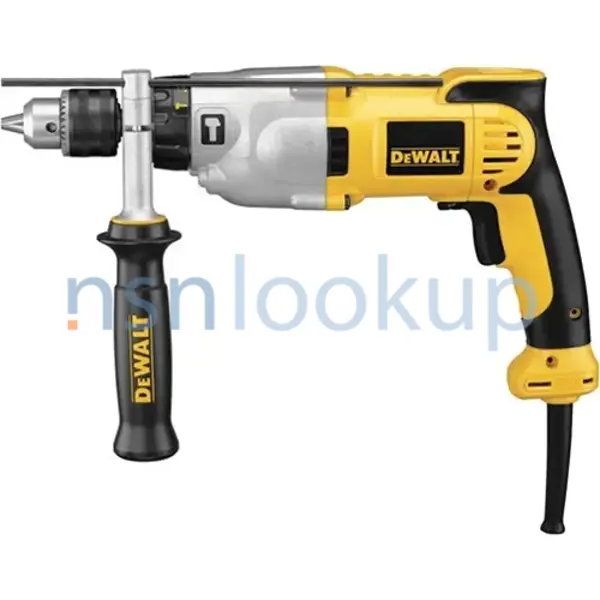

Portable Electric Hammer-Drill
5130016114519 016114519 DWD520
A hand-held, electric-powered tool for drilling into brick, block, concrete or other masonry surfaces. It incorporates an impacting mechanism which may be disengaged to allow for conventional drilling operations. For items that use spline or slotted drive shank (SDS) drill bits, see HAMMER,ROTARY,ELECTRIC,PORTABLE. View more Portable Electric Hammer-Drill
May 2023
8
Marketplace 5130-01-611-4519
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-611-4519 1+ Documents (More...)
/fsg-51/fsc-5130/us 5130-01-611-4519 Portable Electric Hammer-Drill 5130016114519 Every Day 5130-01-
5130-01-611-4519 RQST Updated Every Day 5130-01 Restrictions 5130-01-611-4519 DEMIL Restrictions 5130
Restrictions 5130-01-611-4519
5130-01-611-4519 is a Portable Electric Hammer-Drill that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5130-01-611-4519
- Canada (ZC01)
- Effective Date:
- 1 Sep 2012
Approved Sources 5130-01-611-4519
- Part Number
- Manufacturer
- Status
- DWD520
- Manufacturer
- 7CGP8 - Dewalt Industrial Tool Co (Active)
- Primary Buy
- Primary Buy
- DWD520
- 07429 - Black And Decker Us Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5130-01-611-4519
- Characteristic
- Specifications
- FIIG
- Specifications
- A572A0
- Drive End Type [BRZR]
- Keyed Jaw Chuck
- Accessory Components And Quantity [AKYD]
- Side Handle, Depth Rod, Chuck Key, Chuck Key Holder
- Alternating Current Rating In Amps [ACUS]
- 10.0
- Current Type [ACDC]
- Ac
- Features Provided [CBBL]
- Reversible
- Frequency Rating [ACZB]
- 60.0 Hertz Nominal
- No Load Speed In Rpm [BRZT]
- 3500.0 Maximum
- Impact Blows Per Minute [AKUL]
- 56000.0
- Size Designator [AMRN]
- 0.500 Inches Nominal
- Overall Length [ABHP]
- 14.000 Inches Nominal
- Phase [FAAZ]
- Single
- Special Features [FEAT]
- Two Speed Ranges, 0 To 1200/0 To 3500 Rpm; 0 To 56000 Bpm; 1/2 In. Steel, 1-1/2 In. Wood, 5/32 To 7/16 In. Concrete Capacity
- Voltage Rating [AMSE]
- 120.0 Volts Nominal
- Speed Adjustments [ABBB]
- Variable Speed
Management Data 5130-01-611-4519
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Similar Supply Items to 5130-01-611-4519
Freight Information 5130-01-611-4519
5130-01-611-4519 has freight characteristics managed by the Department of the Air Force.. 5130-01-611-4519 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
