5130-01-550-8683

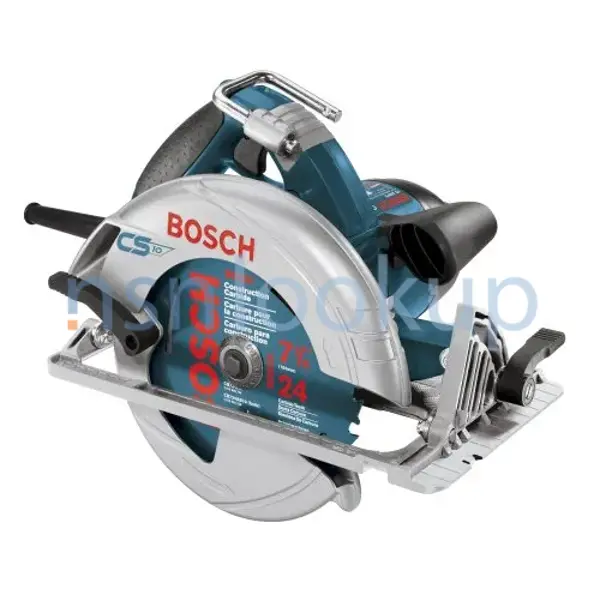

Electric Portable Circular Saw
5130015508683 015508683 CS10
An electric driven saw which cuts by means of a revolving circular saw blade or abrasive saw wheel. It is furnished with circular saw blade(s) or abrasive saw wheel(s). View more Electric Portable Circular Saw
May 2023
4
Marketplace 5130-01-550-8683
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5130-01-550-8683 5+ Documents (More...)
Electric Portable Circular Saw 5130015508683 CS10 SAW,CIRCULAR,PORTABLE,ELECTRIC 10 EA NS Request Quotation
5130-01-550-8683 RQST NE Related Documents Electric Portable Circular Saw 5130015508683 United States
,CS10 -14-288-0494 Electrical Cord Assembly 5995142880494 ,CS10 -14-288-0494 Electrical Cord Assembly
https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-550-8683 Electric Portable Circular Saw 5130015508683
Bosch 7-1/ FLC-CS10-FS18340- FLC-CS10-FS18340-15-193-6217 Italy https//www.nsnlookup.com /fsg-10/fsc
-1005/au 1005-66-145-1087 Small Arms Sling 1005661451087 661451087,CS10 FLC-CS10-FS18340-15-193-6217
-1087 Small Arms Sling 1005661451087 661451087,CS10 FLC-CS10-FS18340-15-193-6217 Italy (ZR) Approved
/fsg-53/fsc-5305/fr 5305-14-492-8928 Screw 5305144928928 144928928,CS10 FLC-CS10-FS18340- FLC-CS10-FS18340
FLC-CS10-FS18340- FLC-CS10-FS18340-15-193-6217 Italy (ZR) Approved Sources 8340-15-193-6217 Part NumberManufacturerStatusFLC-CS10
144928928,CS10 FLC-CS10-FS18340-15-193-6217 Italy (ZR) Approved Sources 8340-15-193-6217 Part NumberManufacturerStatusFLC-CS10
Restrictions 5130-01-550-8683
5130-01-550-8683 is a Electric Portable Circular Saw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-01-550-8683
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-01-550-8683
- Canada (ZC01)
- Effective Date:
- 1 May 2007
Approved Sources 5130-01-550-8683
- Part Number
- Manufacturer
- Status
- CS10
- Manufacturer
- 53867 - Robert Bosch Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 5130-01-550-8683
- Characteristic
- Specifications
- FIIG
- Specifications
- T294-Z
- Rotational Speed Rating In Rpm [AMZE]
- 5600.0
- Current Type [ACDC]
- Ac
- Voltage Rating [AMSE]
- 120.0 Volts Nominal
- Frequency Rating [ACZB]
- 60.0 Hertz Nominal
- Phase [FAAZ]
- Single
- Alternating Current Rating In Amps [ACUS]
- 15.0
- Blade Diameter [BBPJ]
- 7.250 Inches Nominal
- Arbor Size [BBQX]
- 5/8 In.
- Motor Armature Axis Position [BZZW]
- Parallel To Saw Blade Spindle Axis
- Vertical Cut Depth [BZZX]
- 2.438 Inches
- Cord Length [BQMM]
- 10.0 Feet Nominal
- Accessory Components And Quantity [AKYD]
- Carbide Tipped Blade And Carrying Bag
- Features Provided [CBBL]
- Spindle Lock
- Special Features [FEAT]
- Top Handle; 1-7/8 In. Cut Depth At 45 Deg; Soft Grip Handle; Built-In Saw Hook; Magnesium Shoe; 56 Deg Bevel Capacity
Similar Supply Items to 5130-01-550-8683
Freight Information 5130-01-550-8683
5130-01-550-8683 has freight characteristics managed by the Department of the Air Force.. 5130-01-550-8683 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
