Premium Information is available for this item - Upgrade for $1 a day
5130-01-504-4101

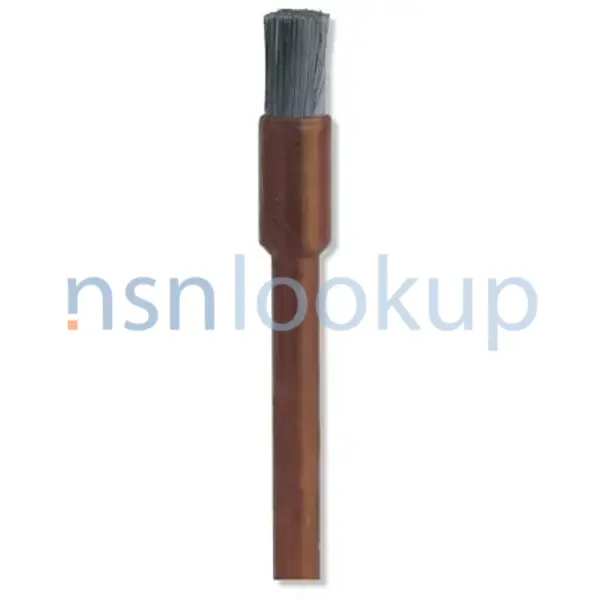

Rotary End Wire Brush
5130015044101 015044101 532
A brush having a circular wire fill section secured in a tubular back, and a 1/4 inch round shank drive. The fill material extends parallel or at right angles to the axis of its shank. It is used in a rotary, power-operated device for carbon removing, cleaning, smoothing and the like. See also BRUSH, WIRE, ROTARY CUP; and BRUSH, WIRE, ROTARY WHEEL. View more Rotary End Wire Brush
May 2023
6
Marketplace 5130-01-504-4101
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-504-4101 3+ Documents (More...)
Details... 532 BRUSH,WIRE,ROTARY END 4 EA NS Request Quotation Subscribe to View Vendor Details... 5130
Day 5130-01-504-4101 RQST NE Updated Every Day 5130-01-504-4101 RQST Updated Every Day 5130-01-504-4101
Restrictions 5130-01-504-4101
5130-01-504-4101 is a Rotary End Wire Brush that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-01-504-4101
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-01-504-4101
- US Air Force (FGGS)
- Effective Date:
- 1 Nov 2013
- NASA (G751)
- Effective Date:
- 1 Nov 2013
- US Navy (N9QG)
- Effective Date:
- 1 Dec 2014
- Supplementary Collaborators:
- GG
- Singapore (YJ01)
- Effective Date:
- 1 Jan 2003
Approved Sources 5130-01-504-4101
- Part Number
- Manufacturer
- Status
- 532
- Manufacturer
- 48851 - Dremel Services Center (Active)
- Primary Buy
- Primary Buy
- 532
- 18531 - Dremel Mfg Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-504-4101
- Characteristic
- Specifications
- FIIG
- Specifications
- A15400
- Fill Material [BDMQ]
- Steel, Corrosion Resisting
- Maximum Speed Rating In Rpm [ATPR]
- 15000.0
- Outside Diameter [ABKV]
- 0.125 Inches Nominal
- Style Designator [STYL]
- Solid Filled
- Special Features [FEAT]
- 1/8 In. Dia Shank; For Cleaning, Deburring And Surface Finishing Of Stainless Steel, Aluminum, Silver, Pewter Or Other White Materials
Management Data 5130-01-504-4101
Navy
- Cognizance:
- 9Q
Similar Supply Items to 5130-01-504-4101
Freight Information 5130-01-504-4101
5130-01-504-4101 has freight characteristics managed by Singapore.. 5130-01-504-4101 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
