5130-01-486-2243

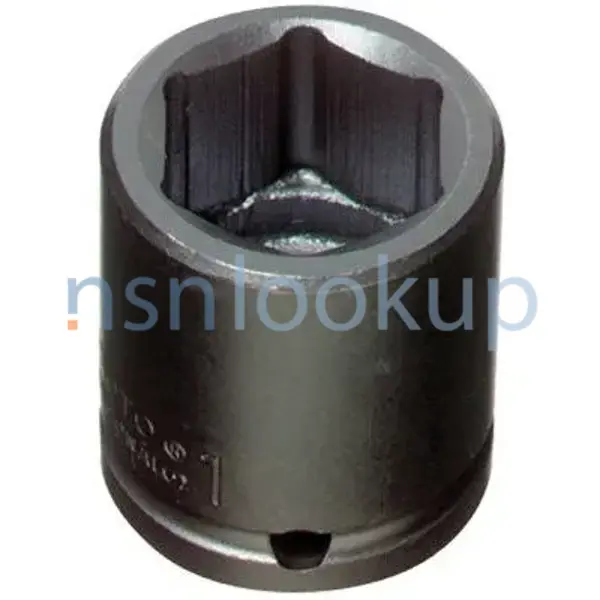

Socket Wrench Socket
5130014862243 014862243 B107.2 B107.2 TY1CL1 STP 7418H J7418H 1AW22 7418H
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
May 2023
9
Marketplace 5130-01-486-2243
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-486-2243 5+ Documents (More...)
NE FedMall Updated Every Day J7418H RQST NE Updated Every Day 7418H RQST NE Updated Every Day 1AW22
RQST NE Updated Every Day 7418H RQST NE Updated Every Day 1AW22 CL1STA GGG-W-660 B107.2 TY1CL1 PF140A
1AW22 7418H An item having an internal https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-593-0358
014862243 B107.2 B107.2 TY1CL1 STP 7418H Socket Wrench Socket 5120015930358015930358 $1 a day Upgrade
www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-486-2243 Socket Wrench Socket 5130014862243 014862243 Upgrade
5130-01-486-2243Socket Wrench Socket5130014862243 014862243 B107.2 B107.2 TY1CL1 STP 7418H J7418H Request
//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-486-2243 Socket Wrench Socket 5130014862243 014862243
Account Upgrade 5130-01-486-2243Socket Wrench Socket5130014862243 014862243 B107.2 B107.2 TY1CL1 STP
6150-01-433-8931 https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-486-2243 Socket Wrench Socket
5130014862243 014862243 Photo 1/2 NSN 5130-01-486-2243 (Identification) 2/2 - - 1.
Restrictions 5130-01-486-2243
5130-01-486-2243 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-01-486-2243
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-01-486-2243
- US Army (A192)
- Effective Date:
- 1 Aug 2001
- Supplementary Receivers:
- AZBF
- NASA (G751)
- Effective Date:
- 1 Aug 2001
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2014
- Supplementary Collaborators:
- GG
Approved Sources 5130-01-486-2243
- Part Number
- Manufacturer
- Status
- B107.2
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.2 TY1CL1
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- STP 7418H
- 00NS2 - Kipper Tool Company (Active)
- Secondary Buy
- Secondary Buy
- J7418H
- 1CV05 - The Stanley Works (Active)
- Secondary Buy
- Secondary Buy
- 1AW22
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 7418H
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-486-2243
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Features Provided [CBBL]
- Power Tool
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 1 Class
- Overall Length [ABHP]
- 1.500 Inches Nominal
- Wrenching Surface Shape [CRWY]
- 6 Point Single End Internal
- Wrenching Surface Size [AJBR]
- 0.562 Inches Nominal Single End
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.2 Professional/Industrial Association Standard
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Oxide Overall
Management Data 5130-01-486-2243
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
NATO Stock Numbers Related to 5130-01-486-2243
Freight Information 5130-01-486-2243
5130-01-486-2243 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5130-01-486-2243 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5130-01-486-2243 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5130-01-486-2243 is not classified as a special type of cargo when transported by water. 5130-01-486-2243 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
