5130-01-486-2242

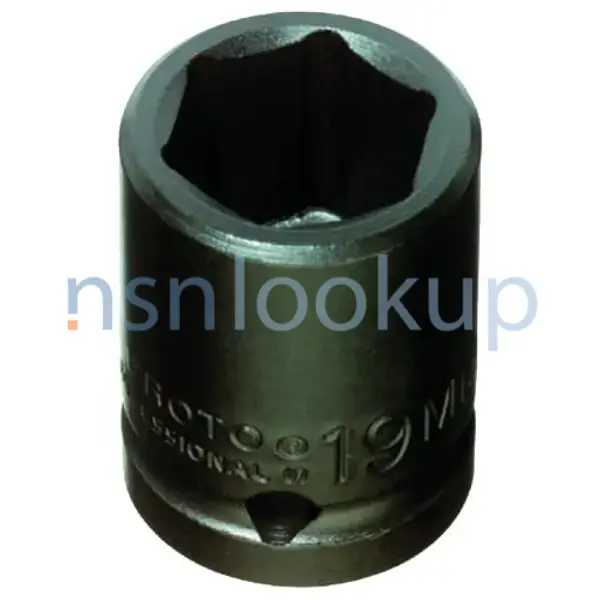

Socket Wrench Socket
5130014862242 014862242 B107.33M B107.33M TY1 J7417M 1AW60 7417M
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
May 2023
11
Marketplace 5130-01-486-2242
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-486-2242 5+ Documents (More...)
SOCKET,SOCKET WRENCH RQST NS Request Quotation Updated Every Day J7417M RQST NE Updated Every Day 7417M
RQST NE Updated Every Day 1AW60 RQST NE Updated Every Day 5130-01-486-2242 RQST NE Updated Every Day
Socket Wrench Socket 5130014862242 014862242 Account Upgrade 5130-01-486-2242Socket Wrench Socket5130014862242
014862242 B107.33M B107.33M TY1 J7417M Vendor Details... 5130-01-486-2242 SOCKET,SOCKET WRENCH RQST
TY1 An item having an internal drive at one end B107.33M TY1 12285499 An item having an internal drive
TY1 An item having an internal drive at one end B107.33M TY1 12285499 An item having an internal drive
drive TY1 An item having an internal drive at one end made to fit into the external drive end of B107.33M
having an internal drive at one end made to fit into the external drive end of TY1 An item having B107.33M
into the external drive /fsc-5130/us 5130-01-112-0554 Socket Wrench Socket 5130011120554 011120554 B107.33M
end of TY1 An item having an internal drive at one end made to fit into the external drive end of B107.33M
Restrictions 5130-01-486-2242
5130-01-486-2242 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-01-486-2242
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-01-486-2242
- US Army (A192)
- Effective Date:
- 1 Aug 2001
- Supplementary Receivers:
- AZBF
- NASA (G751)
- Effective Date:
- 1 Aug 2001
Approved Sources 5130-01-486-2242
- Part Number
- Manufacturer
- Status
- B107.33M
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.33M TY1
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- J7417M
- 1CV05 - The Stanley Works (Active)
- Secondary Buy
- Secondary Buy
- 1AW60
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 7417M
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-486-2242
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Features Provided [CBBL]
- Power Tool
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type
- Overall Length [ABHP]
- 38.1 Millimeters Nominal
- Wrenching Surface Shape [CRWY]
- 6 Point Single End Internal
- Wrenching Surface Size [AJBR]
- 17.0 Millimeters Nominal Single End
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.33 Professional/Industrial Association Standard
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Oxide Overall
Management Data 5130-01-486-2242
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5130-01-486-2242
Freight Information 5130-01-486-2242
5130-01-486-2242 has freight characteristics.. 5130-01-486-2242 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
