5130-01-445-4437

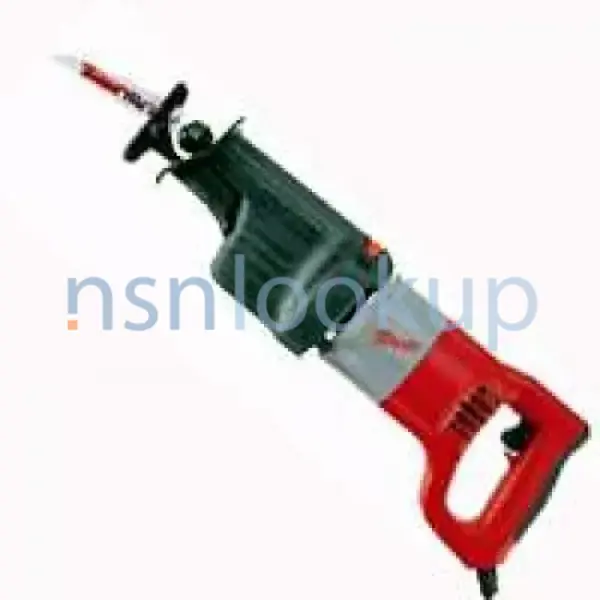

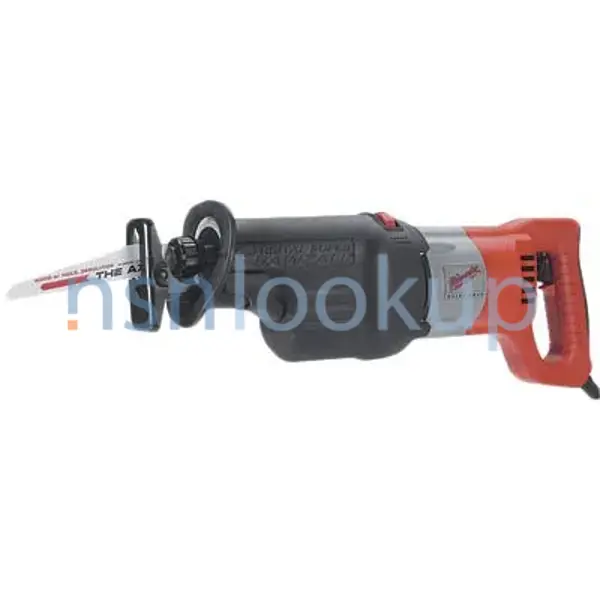

Electric Portable Reciprocating Saw
5130014454437 014454437 6536-21 6537-22 MILWAUKEE 6537-22
An electric-powered, hand-held and guided tool, designed primarily as a driver for hack, scroll, or roughing-in type saw blades. It may be furnished with blade(s) for sawing materials such as sheet metals, plastics, wood and the like. Excludes hacksaw type items having the blade in a frame. View more Electric Portable Reciprocating Saw
August 2023
10
Marketplace 5130-01-445-4437
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-445-4437 2+ Documents (More...)
5130-01-445-4437 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-445-4437
/fsg-51/fsc-5130/us 5130-01-445-4437 5130-01-445-4437 RQST NE Restrictions 5130-01-445-4437 DEMIL: A
Electric Portable Reciprocating Saw,6536-21 DEMIL: A | DEMILI : 1 | CRITICALITY : X | HMIC https
the Army (DA)AZDiscontinued-Use 5130-01-445-4437Department of the Navy (DN)NZDiscontinued-Use 5130-01-445-4437
Restrictions 5130-01-445-4437
5130-01-445-4437 is a Electric Portable Reciprocating Saw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-01-445-4437
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-01-445-4437
- US Army (A192)
- Effective Date:
- 1 Jun 1997
- US Air Force (FGGS)
- Effective Date:
- 1 Jun 1997
- NASA (G751)
- Effective Date:
- 1 Jun 1997
- US Marine Corps (MC14)
- Effective Date:
- 1 Jun 1997
- US Navy (N9QG)
- Effective Date:
- 1 Jun 1997
- Supplementary Collaborators:
- GT
- Canada (ZC01)
- Effective Date:
- 1 Jul 2004
Approved Sources 5130-01-445-4437
- Part Number
- Manufacturer
- Status
- 6536-21
- Manufacturer
- 40817 - Milwaukee Electric Tool Corp (Active)
- Primary Buy
- Primary Buy
- 6537-22 MILWAUKEE
- 00NS2 - Kipper Tool Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6537-22
- 40817 - Milwaukee Electric Tool Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-445-4437
- Characteristic
- Specifications
- FIIG
- Specifications
- A527N0
- Current Type [ACDC]
- Ac
- Voltage Rating [AMSE]
- 120.0 Volts Nominal
- Frequency Rating [ACZB]
- 60.0 Hertz Nominal
- Phase [FAAZ]
- Single
- Alternating Current Rating In Amps [ACUS]
- 13.0
- Stroke Length [AMWL]
- 1.250 Inches Nominal
- Sawing Speed In Strokes Per Minute [BWMQ]
- 3000 Minimum
- Overall Length [ABHP]
- 18.750 Inches Nominal
- Special Features [FEAT]
- Variable Speed Trigger; 0 To 3000 Spm; Tool-Less Blade Clamp; Tool-Less Adjustable Shoe; 8 Foot Cord; 3-Wire Grounded Or 2-Wire Double Insulated Construction; Carrying Case
DLA Procurement Analysis 5130-01-445-4437
Management Data 5130-01-445-4437
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Dec 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Apr 2020
- US Marine Corps (DM)
- EA
- Subscribe
- EA
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5130-01-455-5614
- 0
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5130-01-445-4437
Freight Information 5130-01-445-4437
5130-01-445-4437 has freight characteristics.. 5130-01-445-4437 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
