5130-01-400-0193

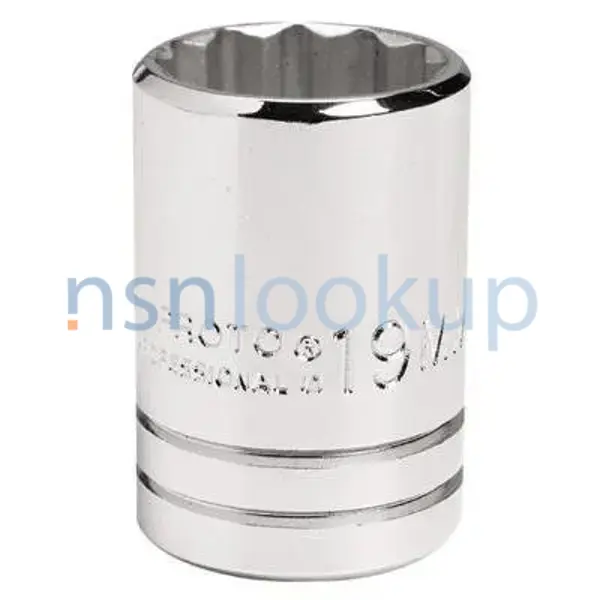

Socket Wrench Socket
5130014000193 014000193 J07522ML 1ACL7 07522ML
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
May 2023
11
Marketplace 5130-01-400-0193
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-400-0193 2+ Documents (More...)
07522ML RQST NE Updated Every Day 1ACL7 RQST NE Updated Every Day 5130-01-400-0193 RQST NE Updated Every
Day 5130-01-400-0193 RQST Updated Every Day 5130-01-400-0193 RQST NE Related Documents 5130-01-400-0193
www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-590-1954 Socket Wrench Socket 5130015901954015901954 STP 07522ML
5130-01-590-1954 RQST NE Related Documents 5130-01 https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-400-0193
Restrictions 5130-01-400-0193
5130-01-400-0193 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-01-400-0193
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-01-400-0193
- NASA (G752)
- Effective Date:
- 1 Oct 2010
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2006
Approved Sources 5130-01-400-0193
- Part Number
- Manufacturer
- Status
- J07522ML
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 1ACL7
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 07522ML
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-400-0193
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Oxide Overall
- Style Designator [STYL]
- Internal-Internal
- Overall Length [ABHP]
- 82.6 Millimeters Nominal
- Wrenching Surface Size [AJBR]
- 22.0 Millimeters Nominal Single End
- Wrenching Surface Shape [CRWY]
- 6 Point Single End Internal
- Drive Surface Size [ATNC]
- 0.750 Inches Nominal Single End
- Drive End Shape [CTCT]
- Square Single End Internal
- Features Provided [CBBL]
- Power Tool
Similar Supply Items to 5130-01-400-0193
Freight Information 5130-01-400-0193
5130-01-400-0193 has freight characteristics.. 5130-01-400-0193 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
