5130-01-400-0184

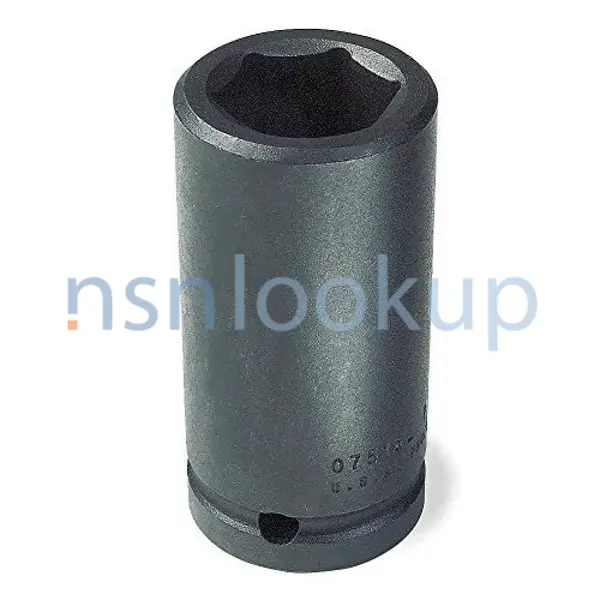

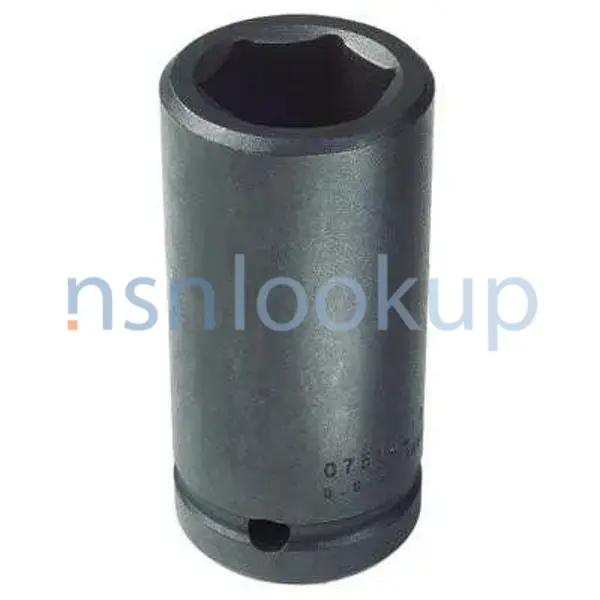

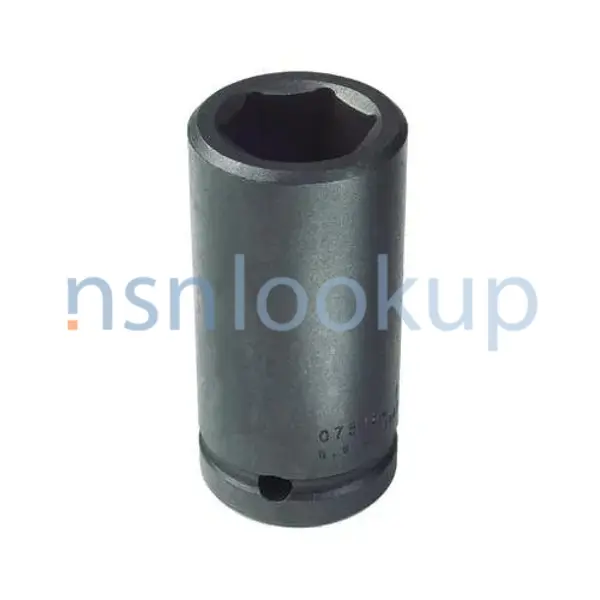

Socket Wrench Socket
5130014000184 014000184 J07516L 1ACC9 07516L
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
May 2023
11
Marketplace 5130-01-400-0184
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-400-0184 5+ Documents (More...)
07516L RQST NE Updated Every Day 1ACC9 RQST NE Updated Every Day 5130-01-400-0184 RQST NE Updated Every
Photo 2/5 5130-01-400-0184 Photo 3/5 5130-01-400-0184 Photo 4/5 NSN 07516L RQST NE Updated Every
www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-590-1809 Socket Wrench Socket 5130015901809015901809 STP 07516L
5130-01-590-1809 RQST NE Related Documents 5130-01 https//www.nsnlookup.com /fsg-51/fsc-5130/us 5130-01-400-0184
5 NSN 5130- 01-400-0184 (Identification) 5/5 - - - - - 1 https//www.nsnlookup.com /fsg-59/fsc-5935/us
Socket Wrench Socket 5130014000184 014000184 Photo 1/5 5130-01-400-0184 Photo 2/5 5130-01-400-0184
/fsg-30/fsc-3020/us
Socket Wrench Socket 5130014000184 014000184 Photo 1/5 5130-01-400-0184 Photo 2/5 5130-01-400-0184
Photo 3/5 5130-01-400-0184 Photo 4/5 NSN 5130- Photo 2/5 5130-01 -400-0184 Photo 3/5 5130-01-400-0184
Socket Wrench Socket 5130014000184 014000184 www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-165-
Restrictions 5130-01-400-0184
5130-01-400-0184 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5130-01-400-0184
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5130-01-400-0184
- NASA (G752)
- Effective Date:
- 1 Oct 2010
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5130-01-400-0184
- Part Number
- Manufacturer
- Status
- J07516L
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 1ACC9
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 07516L
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-400-0184
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Oxide Overall
- Style Designator [STYL]
- Internal-Internal
- Overall Length [ABHP]
- 3.125 Inches Nominal
- Wrenching Surface Size [AJBR]
- 1.000 Inches Nominal Single End
- Wrenching Surface Shape [CRWY]
- 6 Point Single End Internal
- Drive Surface Size [ATNC]
- 0.750 Inches Nominal Single End
- Drive End Shape [CTCT]
- Square Single End Internal
- Features Provided [CBBL]
- Power Tool
Similar Supply Items to 5130-01-400-0184
Freight Information 5130-01-400-0184
5130-01-400-0184 has freight characteristics.. 5130-01-400-0184 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
