5130-01-400-0096

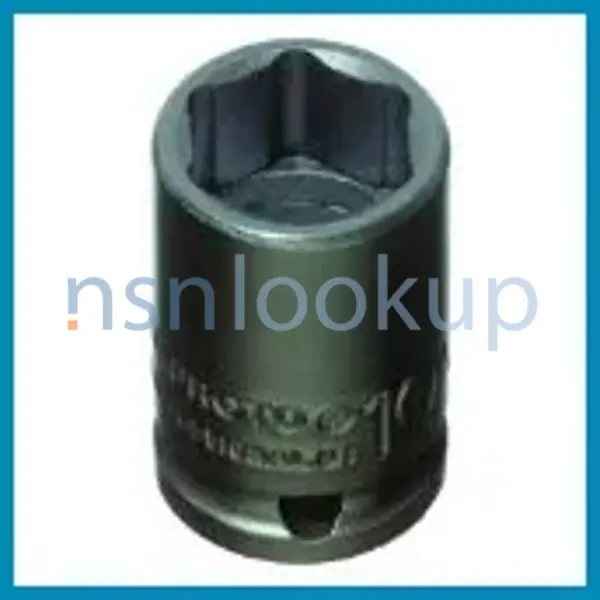

Socket Wrench Socket
5130014000096 014000096 J6909M 1AT02 6909M
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
November 2023
11
Marketplace 5130-01-400-0096
Request a Quotation from participating marketplace vendors
Related Documents 5130-01-400-0096 2+ Documents (More...)
Every Day 6909M RQST NE Updated Every Day 1AT02 RQST NE Updated Every Day 5130-01-400-0096 RQST NE Updated
Every Day 5130-01-400-0096 RQST Updated Every Day 5130-01-400-0096 RQST NE Related Documents 5130-01
Restrictions 5130-01-400-0096
5130-01-400-0096 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5130-01-400-0096
- NASA (G752)
- Effective Date:
- 1 Oct 2010
Approved Sources 5130-01-400-0096
- Part Number
- Manufacturer
- Status
- J6909M
- Manufacturer
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 1AT02
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 6909M
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5130-01-400-0096
- Characteristic
- Specifications
- Drive End Shape [CTCT]
- Specifications
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.250 Inches Nominal Single End
- Features Provided [CBBL]
- Power Tool
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 22.2 Millimeters Nominal
- Wrenching Surface Shape [CRWY]
- 6 Point Single End Internal
- Wrenching Surface Size [AJBR]
- 9.0 Millimeters Nominal Single End
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Oxide Overall
Similar Supply Items to 5130-01-400-0096
Freight Information 5130-01-400-0096
5130-01-400-0096 has freight characteristics.. 5130-01-400-0096 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
